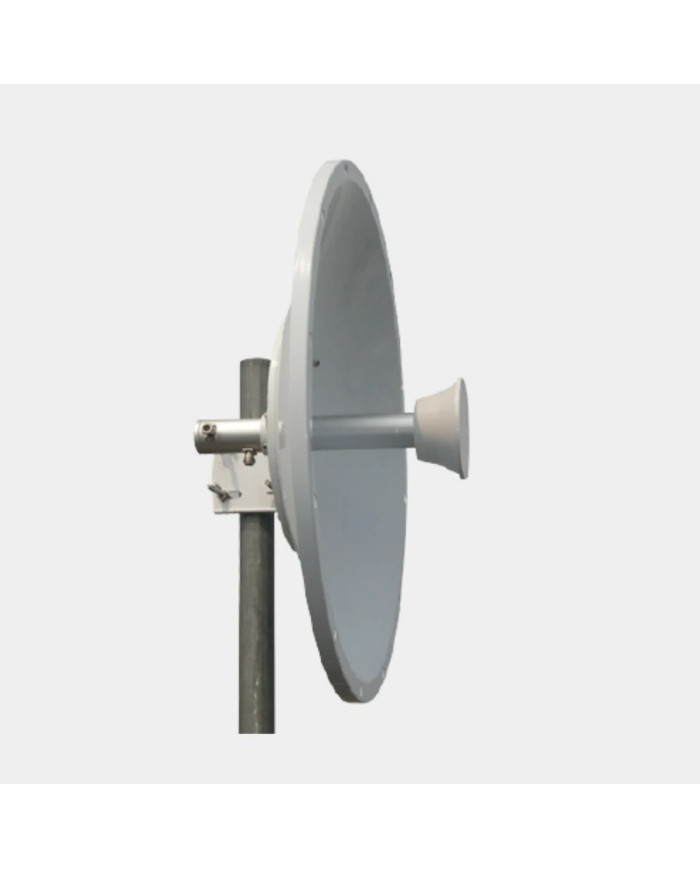

Lanbowan 5GHz 30dBi MIMO Dish Antenna (ANT4958D30P-DP)
The Lanbowan 5GHz 30dBi MIMO Dish Antenna (ANT4958D30P-DP) is a high-gain directional antenna built for long-range wireless links. Operating on the 4950–5850 MHz band, it delivers 2 × 30 dBi gain with dual polarization for stable signal performance. With support for up to 100 W power and dual N-female or RP-SMA connectors, it is well suited for outdoor point-to-point networking applications.
Key Highlights:
- 5 GHz MIMO dish antenna with a gain of 30 dBi.
- Operates within a frequency range of 4950–5850 MHz.
- Provides a gain of 2 × 30 dBi.
- Supports both vertical and horizontal polarization.
- Handles a maximum power of up to 100 W.
- Equipped with 2 × N-female or 2 × RP-SMA connectors
New
Data sheet
| Antenna gain | 30dBi |
|---|---|
| Dimensions | φ0.6M |
| Operating temperature | -55 to +70oC |
| Frequency Range | 4950-5850 MHz |
| Weight | 5KG |
| Impedance | 30Ω |
| Connector Type | 2-N-Female or 2-RPSMA |
| Model | ANT4958D30P-DP |
