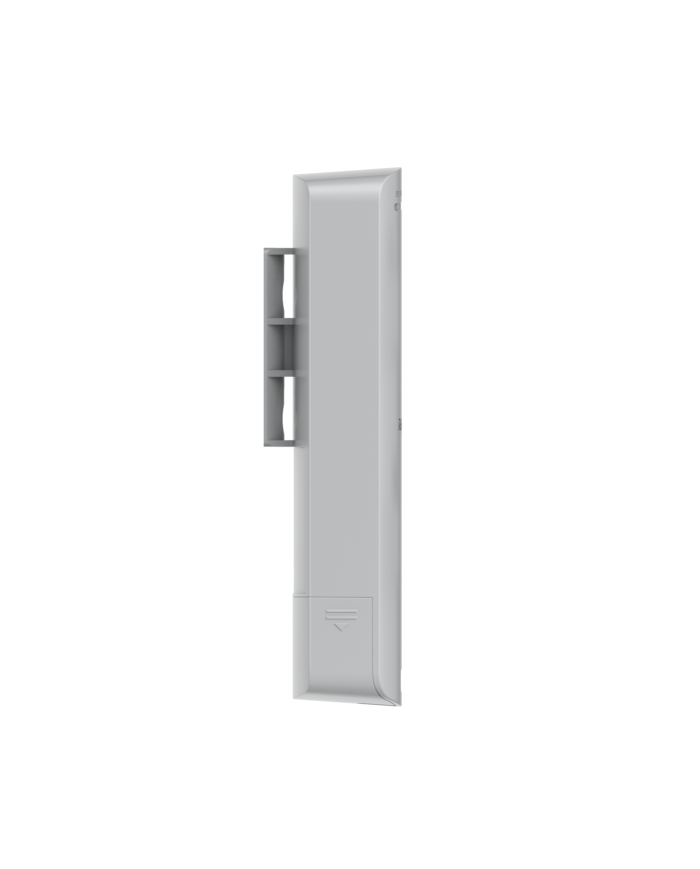

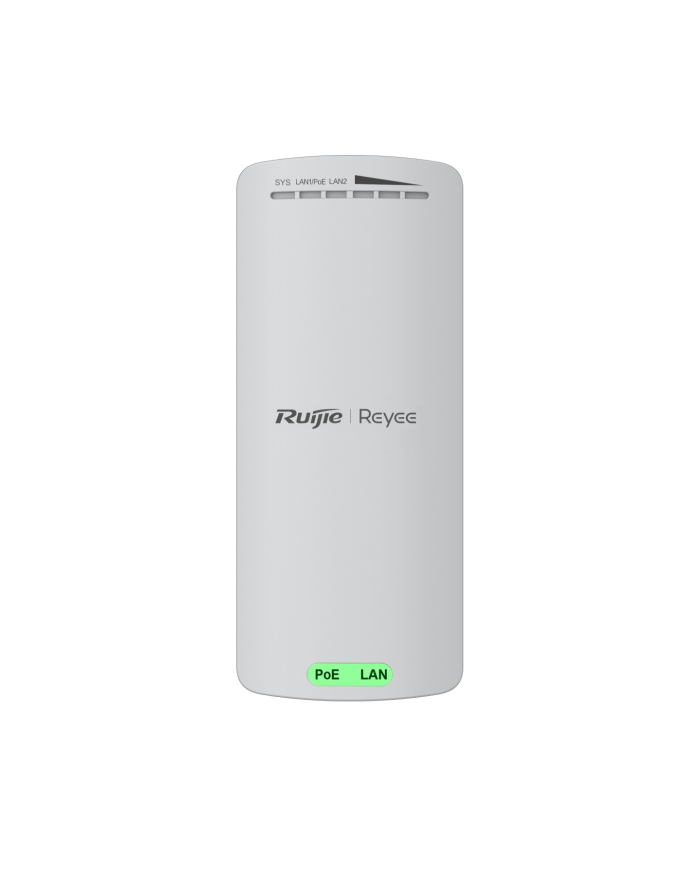

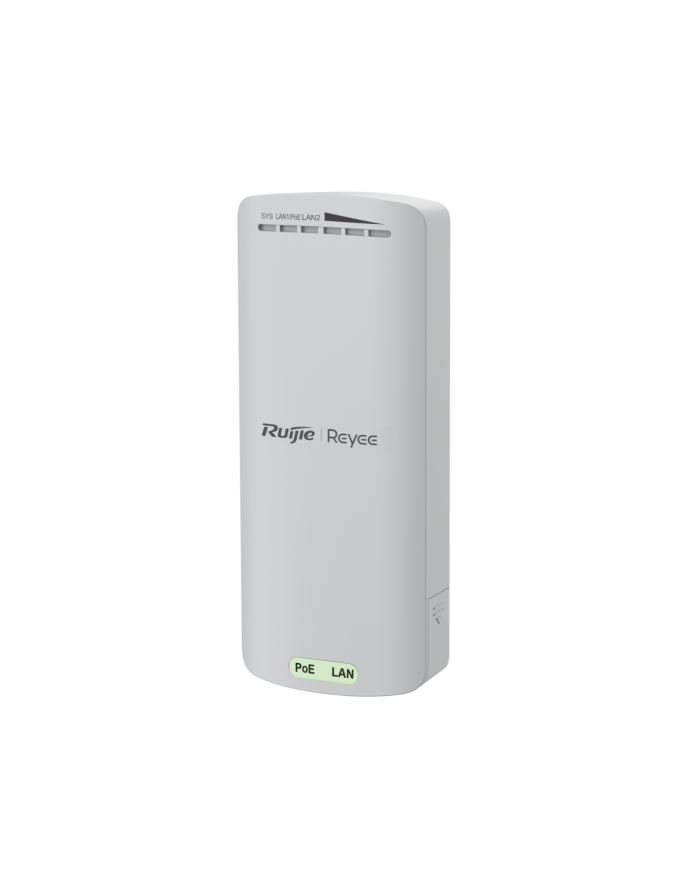

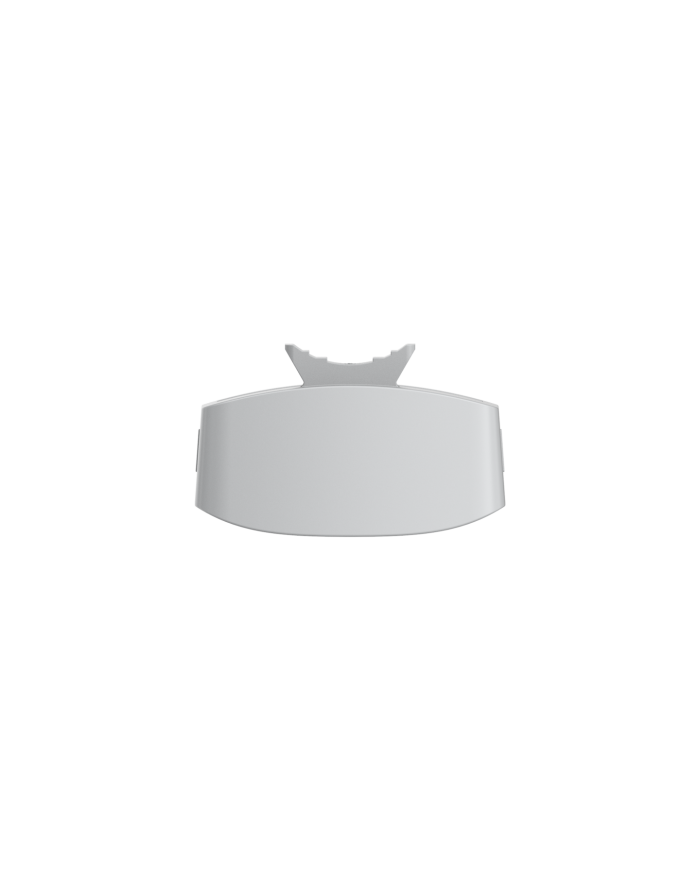

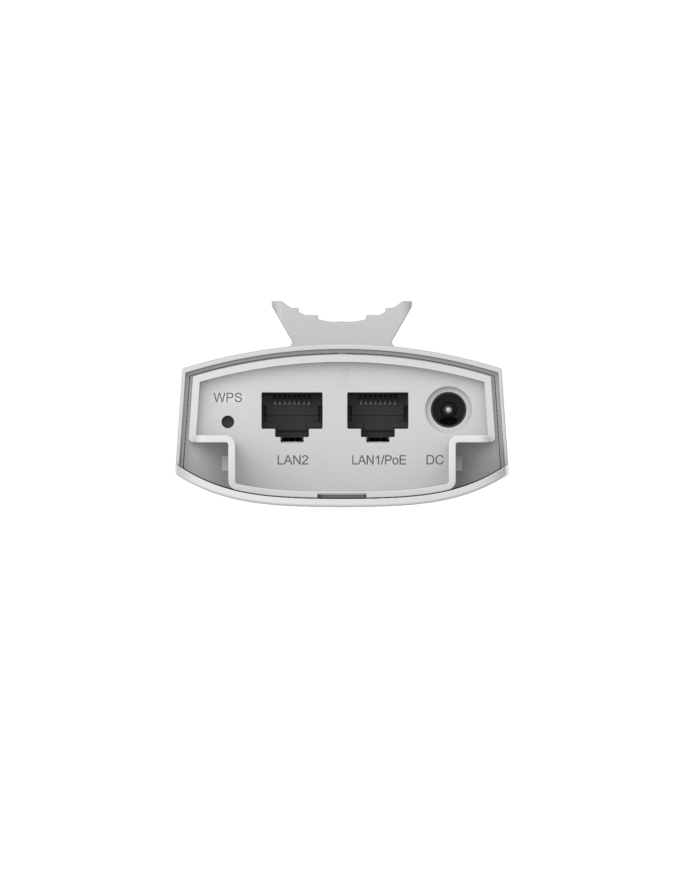

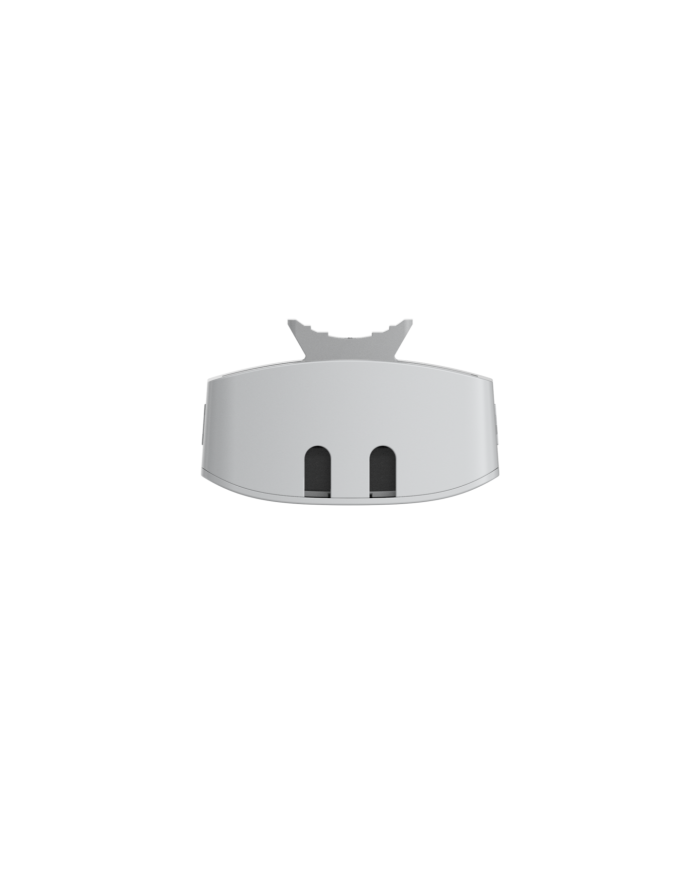

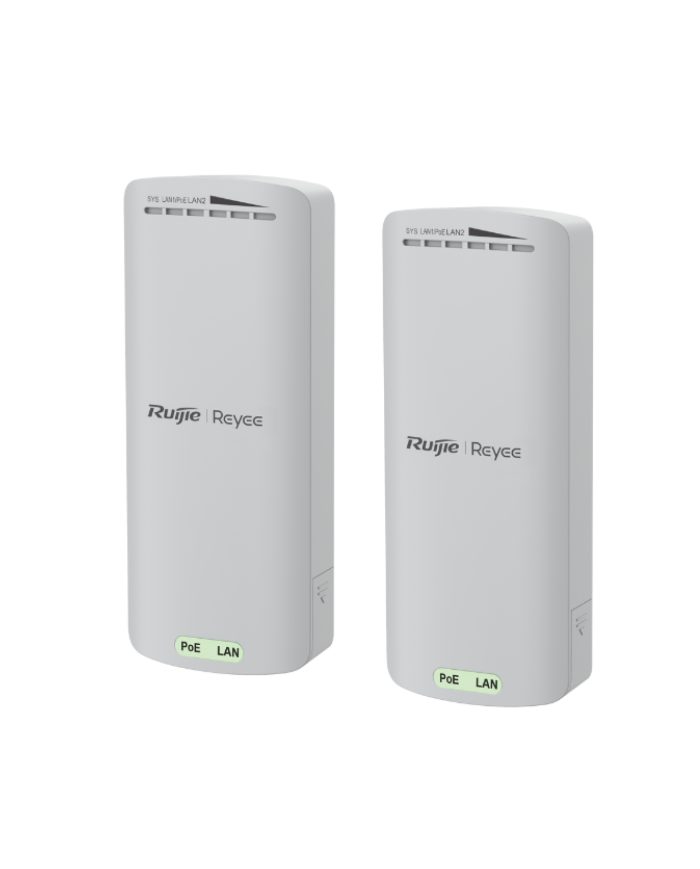

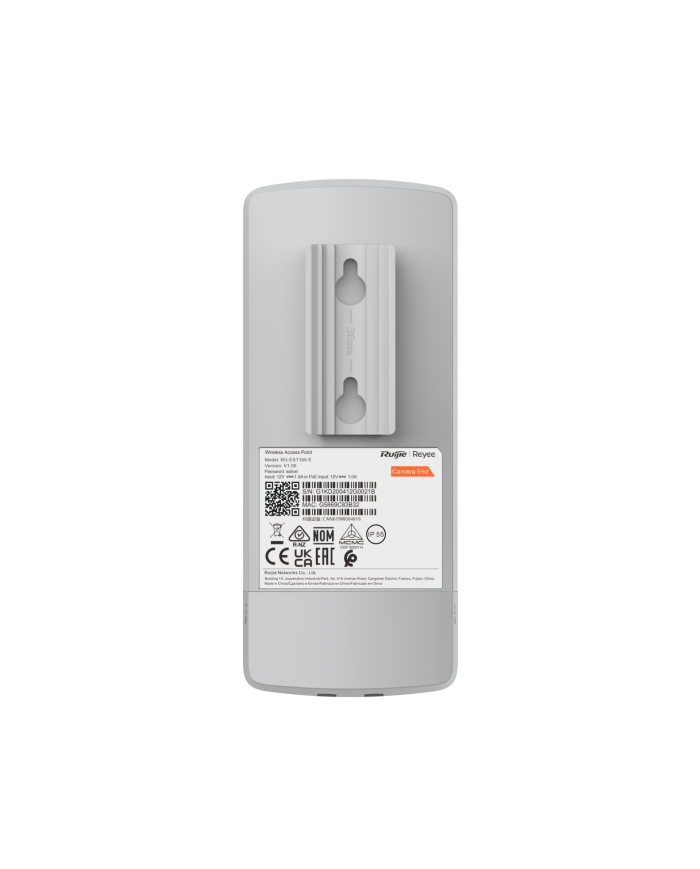

Ruijie Reyee RG-EST100-E, 2.4GHz Dual-Stream 500m Wireless Bridge
The RG-EST100-E is a 2.4 GHz dual-stream wireless bridge designed to deliver stable, high-speed data transmission over distances of up to 500 meters. It supports multiple 3MP CCTV cameras simultaneously with strong throughput, features a rugged weather-resistant construction for outdoor use, and offers factory-free setup with intuitive monitoring and remote maintenance through Ruijie Cloud.
Key Highlights:
- RG-EST100-E supports real-time data transmission over distances up to 500 meters
- Factory-free configuration enables quick deployment with no complex alignment required
- IP55-rated weatherproof design with an operating temperature range of -30°C to 60°C ensures stable performance in outdoor and elevator environments
- Supports up to 10 × 3MP cameras at 100 meters and 5 × 3MP cameras at 500 meters
- Provides visually intuitive performance and traffic statistics through Ruijie Cloud for easy remote monitoring and maintenance
New
Data sheet
| Dimensions | 165.5 mm × 68.7 mm × 42 mm |
|---|---|
| IP Services | IP55 |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Operating temperature | –30°C to +60°C (–22ºF to +140ºF) |
| Frequency Range | 2.400～2.483GHz |
| Weight | 0.3 kg |
| Radio | 2.4 GHz Single-Band Dual-Stream |
| Spatial Streams | 2x2, MU-MIMO |
| Max Throughput | Up to 300 Mbps at 2.4 GHz |
| Flash Memory | 64 MB/8 MB |
| MTBF | 400,000 hours (about 45 years) |
| Antenna Type | Directional antennas, 8 dBi |
| Model | RG-EST100-E |
