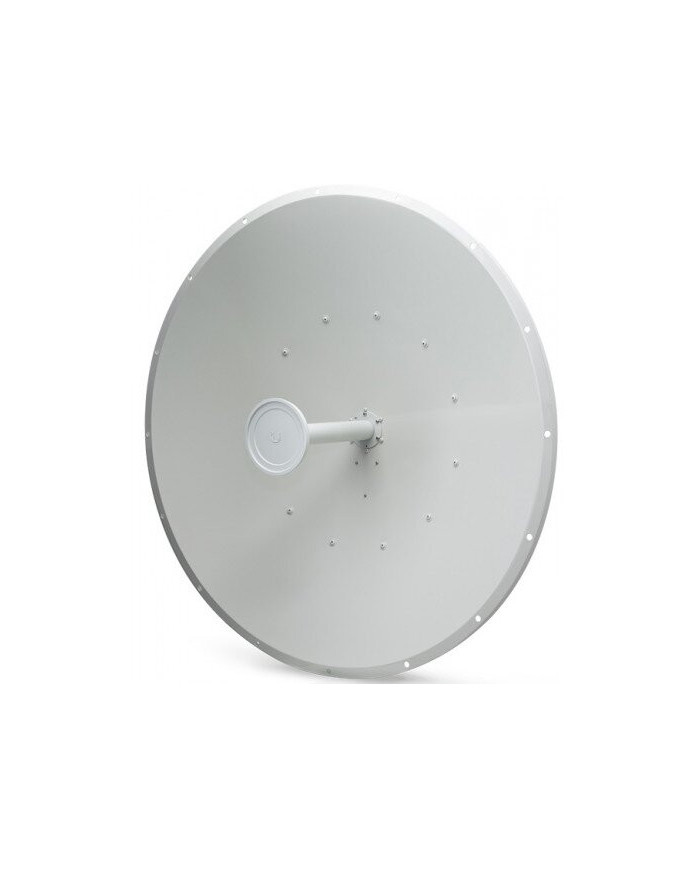

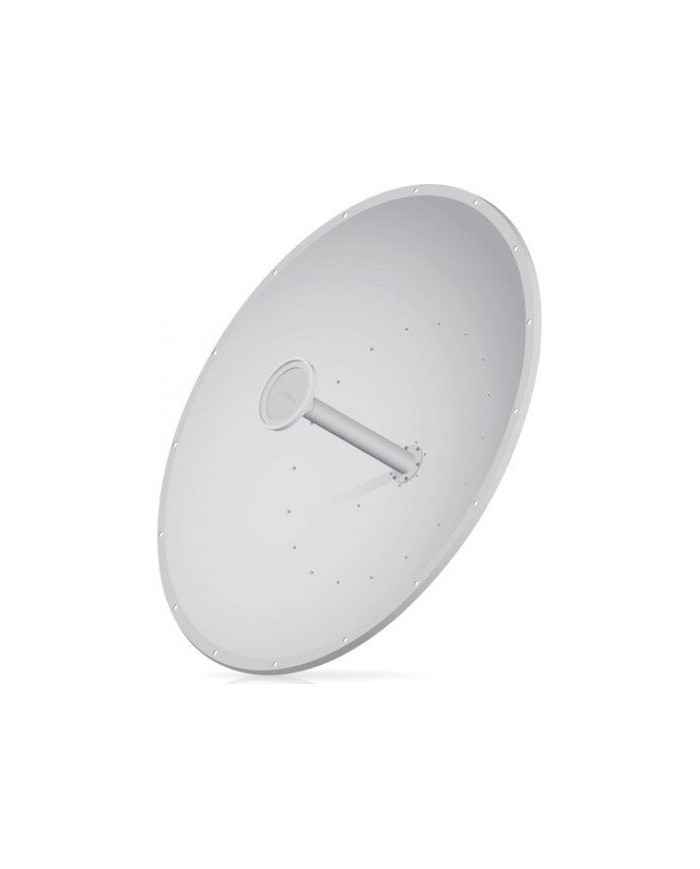

Ubiquiti 5GHz RocketDish 34dBi Rocket Kit Bridge Dish Antenna
The Ubiquiti 5GHz RocketDish 34dBi Rocket Kit Bridge Dish Antenna is designed to pair with a compatible Rocket basestation to deliver a high-performance point-to-point (PtP) bridge or network backhaul solution. Engineered for long-range connectivity, it operates in the 5 GHz band and provides powerful, focused signal transmission for stable wireless links.
Key Highlights:
- Operates within the 4.9 – 5.8 GHz frequency range
- Provides 30 dBi gain at 4.9 GHz and up to 34 dBi from 5 to 5.8 GHz
- 3° (3 dB) horizontal beamwidth for precise signal focus
- 3° (3 dB) vertical beamwidth for accurate directional performance
- 42 dB front-to-back ratio for improved signal isolation
- Maximum VSWR of 1.4:1 for stable and efficient operation
- Designed to handle wind loading of 1,779 N at 200 km/h (400 lbf at 125 mph)
- Wind survivability rated up to 200 km/h (125 mph)
- Dual-linear polarization to support reliable wireless links
- Minimum cross-polarization isolation of 35 dB
- Meets ETSI EN 302 326 DN2 standards
New
Data sheet
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
|---|---|
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| Frequency Range | 4.9 - 5.8 GHz |
| Weight | 13.5 kg (29.76 lb) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
