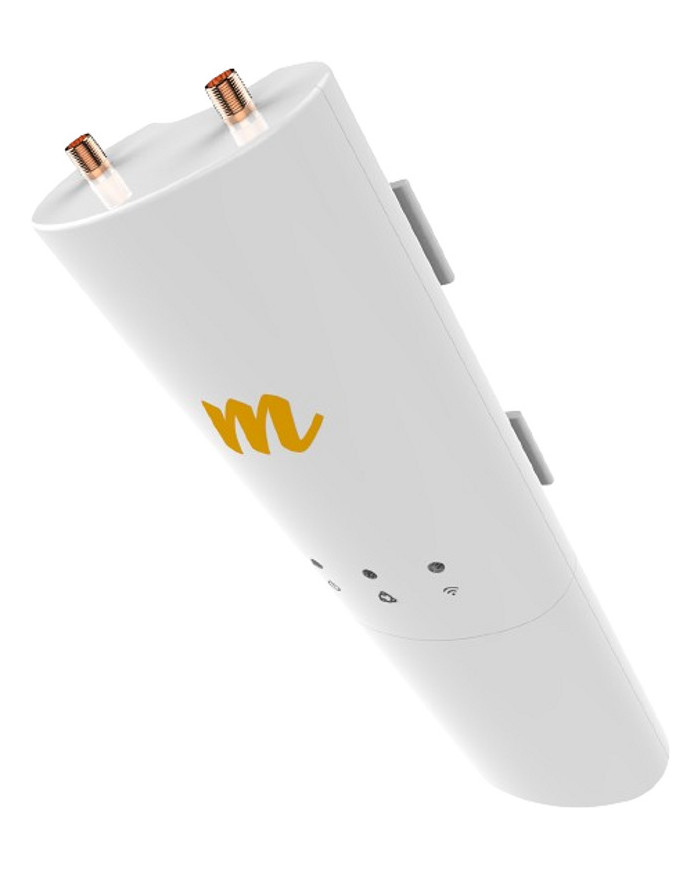

Mimosa C5c EF Point-to-Point Backhaul & Point-to-Multipoint Client Radio 5Ghz
The Mimosa C5C-EF is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. Incorporating unique Multi-User MIMO technology and support for Mimosa’s SRS technology, the C5C-EF enables the fastest speeds and is the most scalable wireless access solution available today
Description:
- Product: Mimosa C5c-EF (connectorized client radio)
- Designed for Point-to-Point (PTP) backhaul and Point-to-Multipoint (PTMP) client use cases.
- Frequency range: ~ 4.9 GHz to 6.4 GHz (exact limits may depend on country’s regulation)
- Supports 20 / 40 / 80 MHz channel bandwidths; tunable in 5 MHz increments when using Mimosa’s SRS mode.
- MIMO: 2×2:2 (2 spatial streams) OFDM up to 256-QAM modulation.
- Maximum transmit power: ~ 27 dBm.
- Sensitivity (MCS0): approximately −93 dBm @ 20 MHz; −90 dBm @ 40 MHz; −87 dBm @ 80 MHz.
- Maximum throughput: ~ 700 Mbps IP in PTP/PTMP mode (866 Mbps PHY) for many sources.
- Power: Passive PoE, accepting about 24-56 V DC.
- Power consumption: ~ 9.2 W (max) under typical conditions.
- Physical dimensions: ~ 188.4 mm × 65 mm × 44 mm (Height × Width × Depth). Weight ~ 295 grams.
- Connectors: 2× RP-SMA (for external dual-polarization antennas)
- Ethernet interface: Gigabit Ethernet (10/100/1000)
New
Data sheet
| Dimensions | 44.00mm x 65mm x 188.4mm D x W x H |
|---|---|
| Mounting | Single Pole Strap |
| Operating humidity | 5 to 100% condensing |
| Operating temperature | -40°C to +55°C (-40°F to 131°F) |
| PoE | Passive PoE (24-56VDC) |
| Power Consumption | 12.9 W |
| Protocol | WiFi Interop Mimosa SRS |
| QoS | Supports 4 pre configures QoS level |
| Wi-Fi and System Security | WPA2 + Mimosa 802.1x Client** |
| Frequency Range | PTMP: 4900 - 6200 MHz PTP: 4900 - 6400 MHz |
| Weight | 295h |
| Max Throughput | 500+ Mbps IP (866 Mbps PHY) |
| Support Modes | PTMP Client PTP Backhaul |
