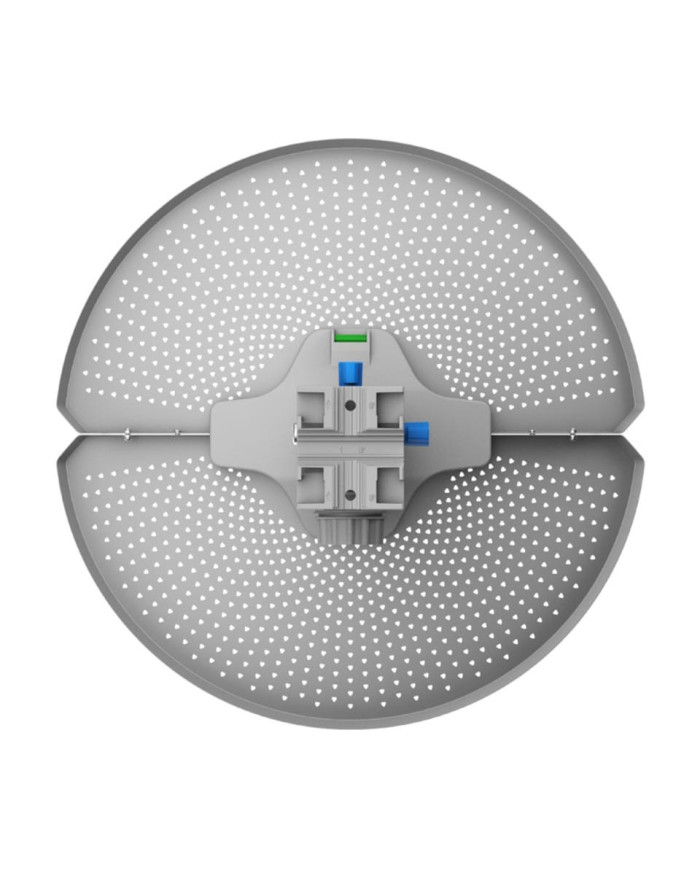

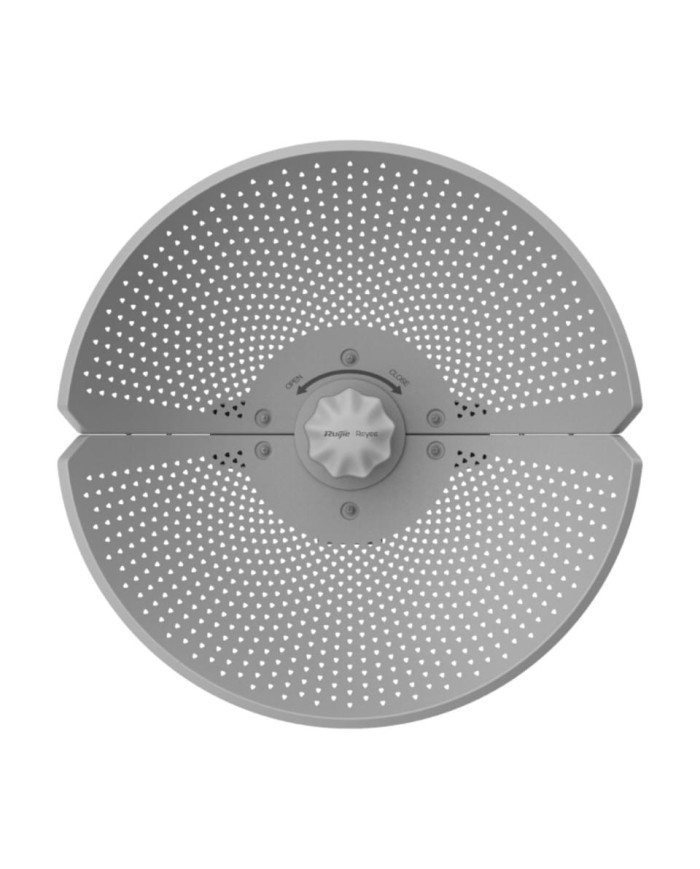

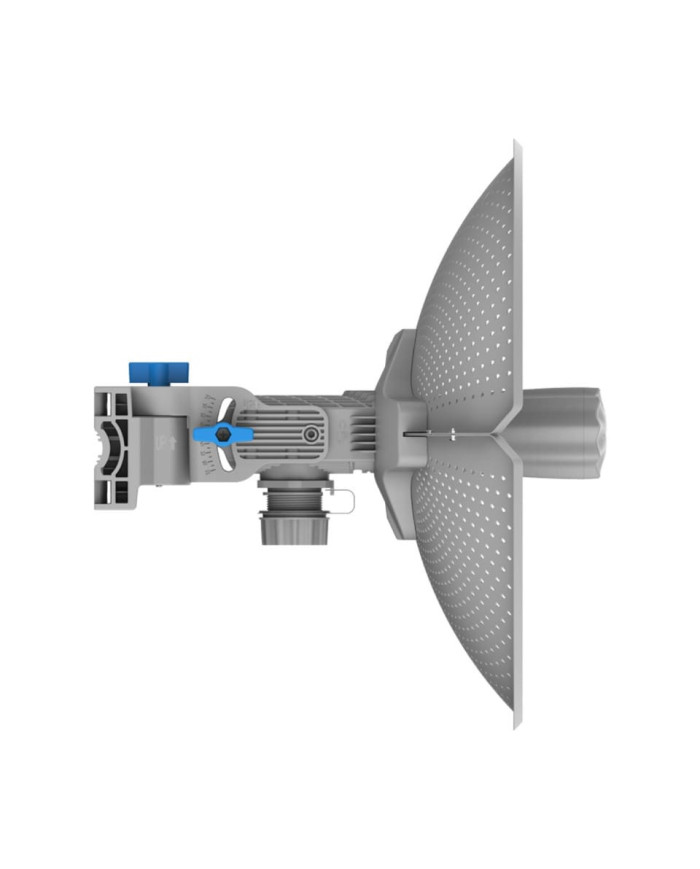

Ruijie RG-AirMetro460G, gigabit CPE of RG-AirMetro Series single dish Wireless Bridges with 24V Passive PoE injector

The Ruijie Reyee RG-AirMetro460G is a robust 5GHz wireless bridge designed to establish high-speed, long-distance connections for business environments. It seamlessly links buildings, campuses, and remote sites up to 15 km apart, providing a reliable alternative to fiber. It supports both point-to-point and point-to-multipoint deployments, making it a versatile solution for expanding network coverage. Built for harsh outdoor conditions, it features a rugged design, extreme weather resistance, and tools for quick installation and optimal alignment.

Technical Specifications:

· Wireless Performance:

  · Band: 5 GHz

  · Throughput: Up to 867 Mbps

  · Range: Up to 15 km

· Operational Modes:

  · Point-to-Point (PTP)

  · Point-to-Multipoint (PTMP, supports up to 32 connections)

· Durability & Environmental:

  · Ingress Protection: IP65 Rated Enclosure

  · Surge Protection: 6 kV (Port) / ±24 kV (ESD)

  · Wind Resistance: Up to 220 km/h (137 mph)

  · Operating Temperature: -40 °C to +70 °C

· Antenna & Alignment:

  · Gain: 23 dBi

  · Beamwidth: 9°

  · Built-in Tools: Alignment assistant and spectrum scanner

· Power & Certification:

  · Power Input: 24V Passive PoE

  · Certification: CE Certified
