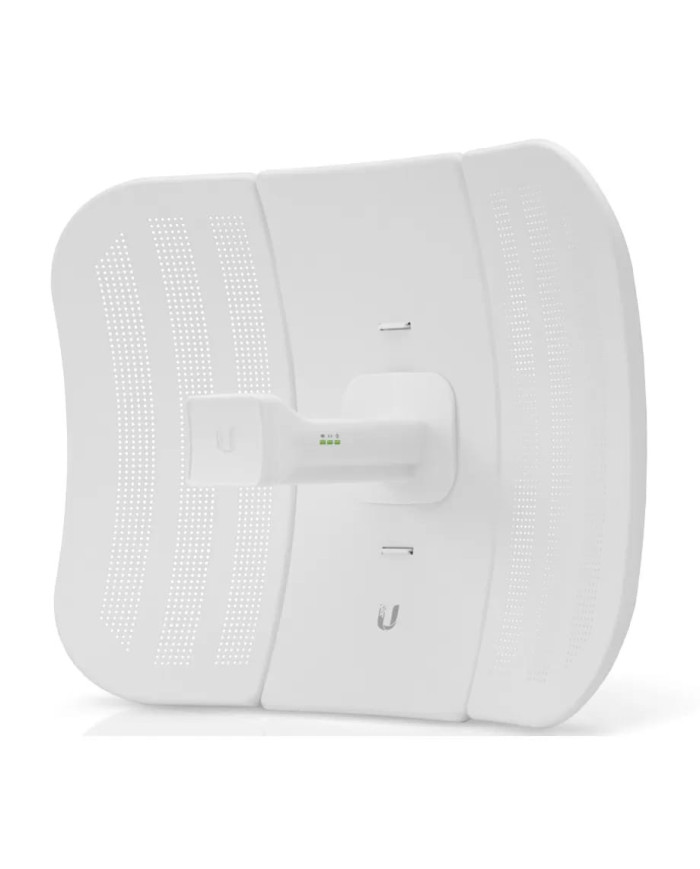

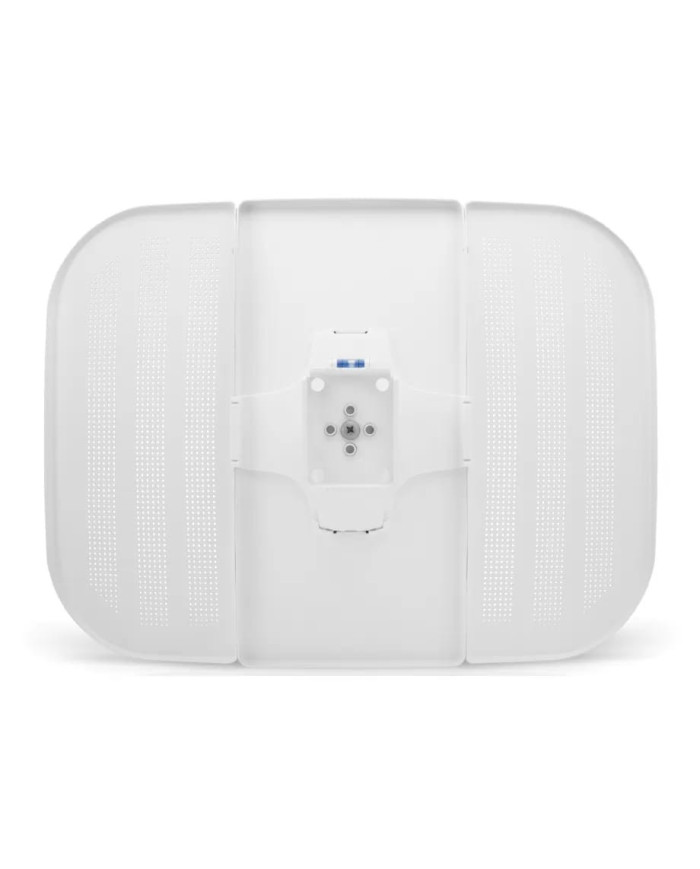

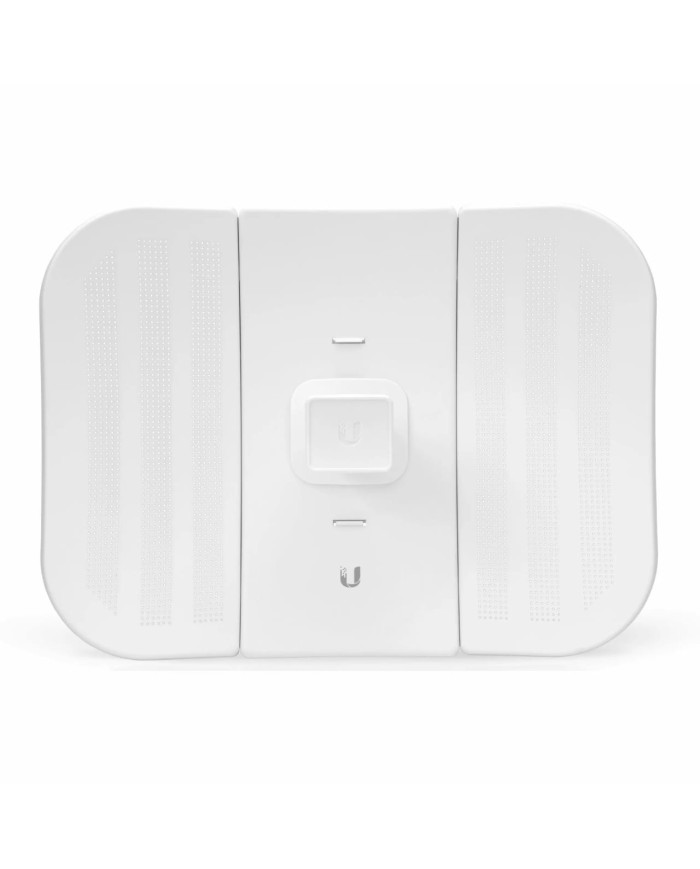

Ubiquiti LBE-M5-23 LiteBeam 5GHz-23dBi
The airMAX LiteBeam M5 by Ubiquiti Networks is a compact, lightweight, and affordable wireless bridge designed for long-distance (15+ km) point-to-point and point-to-multipoint applications. It offers reliable high-speed connectivity, ideal for cost-effective broadband deployment using Ubiquiti’s airMAX technology.
Ubiquiti LiteBeam LBE-M5-23 is a compact and high-performance outdoor CPE, ideal for long-distance wireless broadband bridging. It operates on the license-free 5 GHz band and delivers real-world speeds of over 100 Mbps across distances up to 30+ km. The device features Ubiquiti’s InnerFeed technology, which integrates the radio into the antenna feed, reducing signal loss and simplifying setup. Using the airMAX TDMA protocol, it ensures low latency, better scalability, and stable connections for point-to-point and point-to-multipoint links.
Designed for easy installation, the LiteBeam M5 includes a snap-together mount, 3-axis adjustment, and built-in bubble level for precise alignment. It also offers excellent durability, low power consumption, and advanced ESD protection, making it reliable for various outdoor conditions.
Technical Highlights:
- Processor: MIPS 74K with 64MB RAM
- Operating system: airOS
- Wireless standards: IEEE 802.11a/n (up to 150 Mbps)
- Throughput: 100+ Mbps in outdoor conditions
- Frequency range: 5170–5875 MHz (global), 5725–5850 MHz (USA)
- TX power: Up to 25 dBm | RX sensitivity: -96 dBm
- Range: Up to 30+ km
- Antenna: 23 dBi integrated directional antenna
- Network port: 1 x 10/100 Mbps Ethernet
- Power: Passive PoE (12–24V), max. 4W
- PoE injector: Included
- Mount: 3-axis adjustable with bubble level
- Wind resistance: 176.86 N at 200 km/h
- ESD protection: 24kV on radio and Ethernet
- Dimensions: 36.2 x 26.7 x 18.4 cm
- Weight: 0.75 kg
- Operating temperature: -40°C to +70°C
- Humidity: 5% to 95% non-condensing
- Compliance: Meets ETSI300-019-1.4 shock and vibration standards
