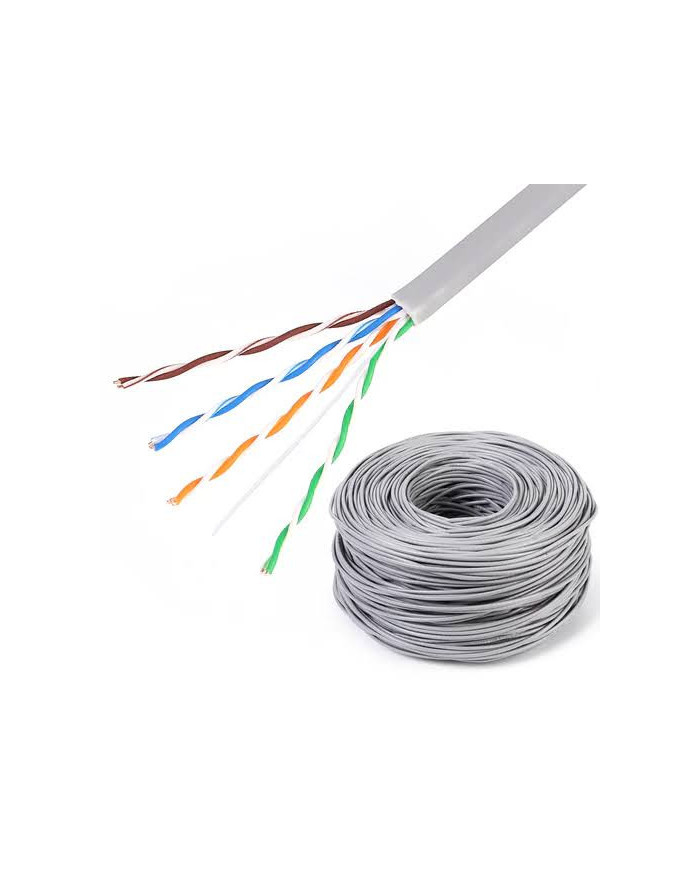

HIKVISION DS-1LN6U-G UTP CAT6 Copper Cable | 23AWG | 305M | Gray | OFC 99.95%

The Hikvision DS-1LN6U-SC0 U/UTP Cat6 PVC Ethernet Cable is engineered for structured network cabling applications that demand reliable, standards-compliant performance over extended cable runs. Built with 99.95% pure solid bare copper 23AWG conductors, it minimizes signal loss and maintains stable data transmission across frequencies of up to 250 MHz. Its durable PVC jacket offers excellent tensile and compressive strength, helping protect the cable during installation while ensuring dependable long-term performance.

Designed to perform in demanding networking environments, this Cat6 cable successfully passes Fluke's 90-meter permanent link test at a continuous operating temperature of 50°C and the 100-meter channel test under sustained 57V/1A PoE load. Compliance with ANSI/TIA-568-C.2, ISO/IEC 11801, and RoHS 2.0 standards ensures compatibility with modern network infrastructures. Supplied in a 305-meter reel, the cable also features an integrated rip cord and separator to simplify cable preparation and termination.

Core Features:

• Solid 23AWG bare copper conductors with 99.95% copper purity
• Supports stable 100-ohm impedance with bandwidth up to 250 MHz
• Passes Fluke 90m permanent link testing at continuous 50°C
• Certified for Fluke 100m channel testing under sustained PoE (57V/1A)
• High-strength PVC jacket with cold-bend resistance down to -20°C
• Complies with ANSI/TIA-568-C.2, ISO/IEC 11801, and RoHS 2.0 standards
• Supplied in a convenient 305-meter cable reel
• Low DC resistance (≤9.38 Ω/100m) with precise conductor resistance balance
