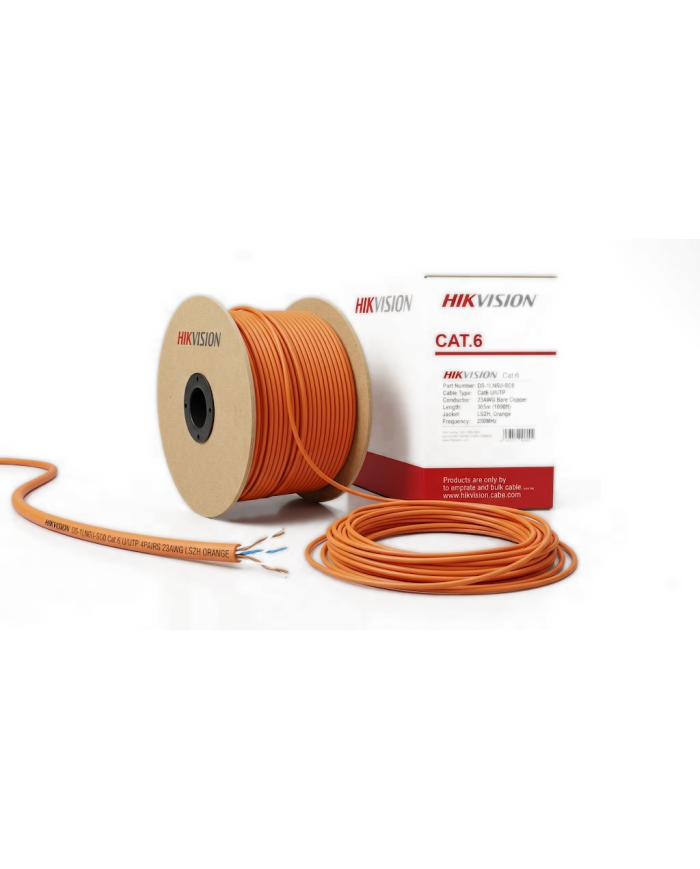

Hikvision 1LN6-SCO Orange CAT 6 cable 23AWG 305 meters
The Hikvision DS-1LN6U-SC0 is a U/UTP Cat6 network cable built with solid-bare copper conductors for reliable, high-speed data transmission. Rated for continuous PoE loads and stable performance up to 250 MHz, it's engineered for demanding structured cabling projects that need durability and consistent electrical performance.
Built for structured cabling projects that demand consistency and durability, the Hikvision DS-1LN6U-SC0 is a Cat6 U/UTP cable designed to deliver stable, high-speed data transmission across demanding network environments. Its solid-bare copper conductors reduce resistance and improve signal transmission, while a rugged PVC sheath with strong tensile and compressive strength helps prevent damage during installation. Fully compliant with international cabling standards, this cable is a dependable choice for offices, data centers, and surveillance network installations requiring long-term performance.
Key Highlights:
- Compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801, and RoHS 2.0
- Solid-bare copper (99.95%) conductor, 23AWG, for lower resistance and better transmission performance
- Passes Fluke 90-meter permanent link test at continuous 50°C high temperature
- Passes Fluke 100-meter channel test under continuous 57V/1A PoE load
- Rugged PVC sheath with high tensile and compressive strength to reduce installation damage
- Stable 100Ω impedance performance up to 250 MHz
- Low DC resistance (≤9.38 Ω/100m) with ≤5% conductor resistance unbalance
- Wide operating temperature range: -20°C to 75°C
- Standard 305m (1000ft) reel length, orange PVC jacket
- Includes rip-cord and separator for easier termination
Data sheet
| Operating temperature | -20°C to 75°C (-4°F to 167°F) |
|---|---|
| Color | Orange |
| Cable length | 100 ± 0.5 m or 305 ± 1.5 m |
| Standards | ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0 |
| Material | PVC |
