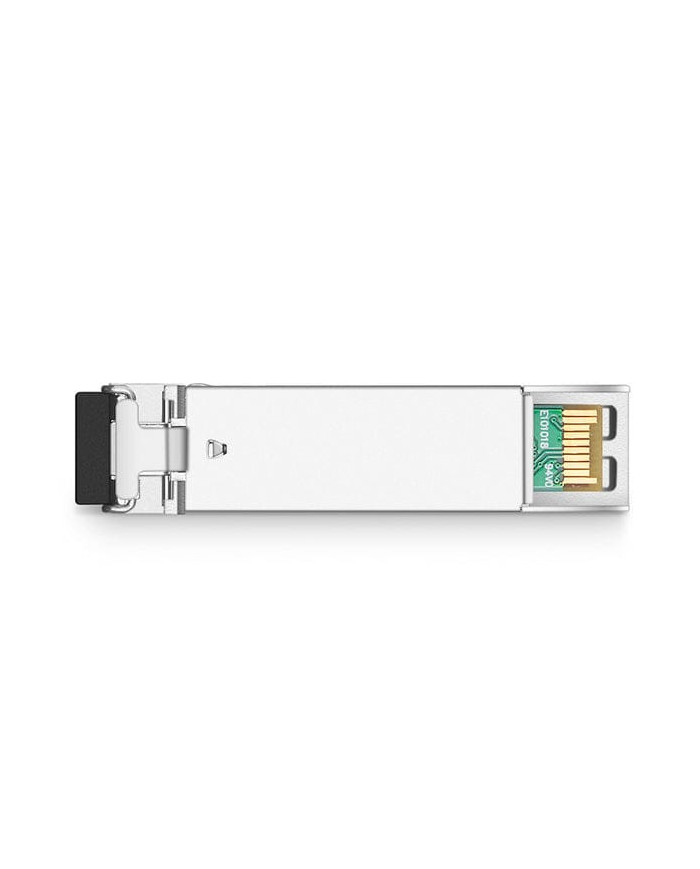

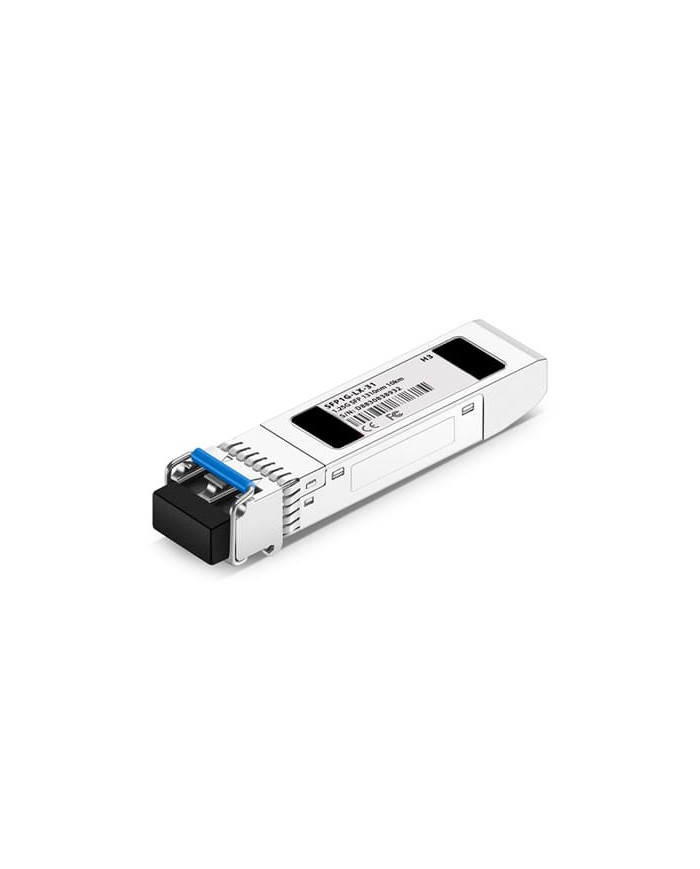

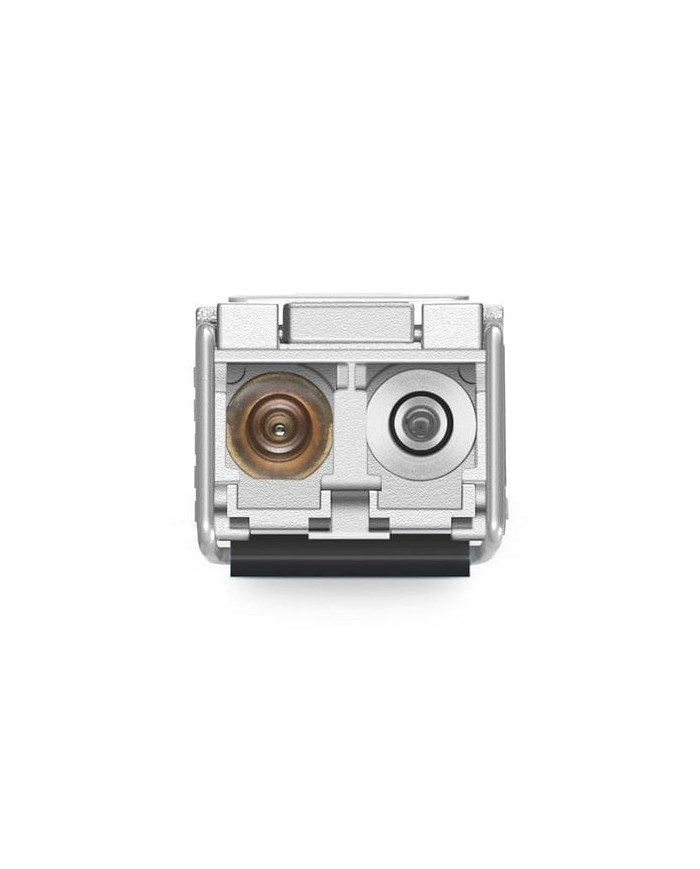

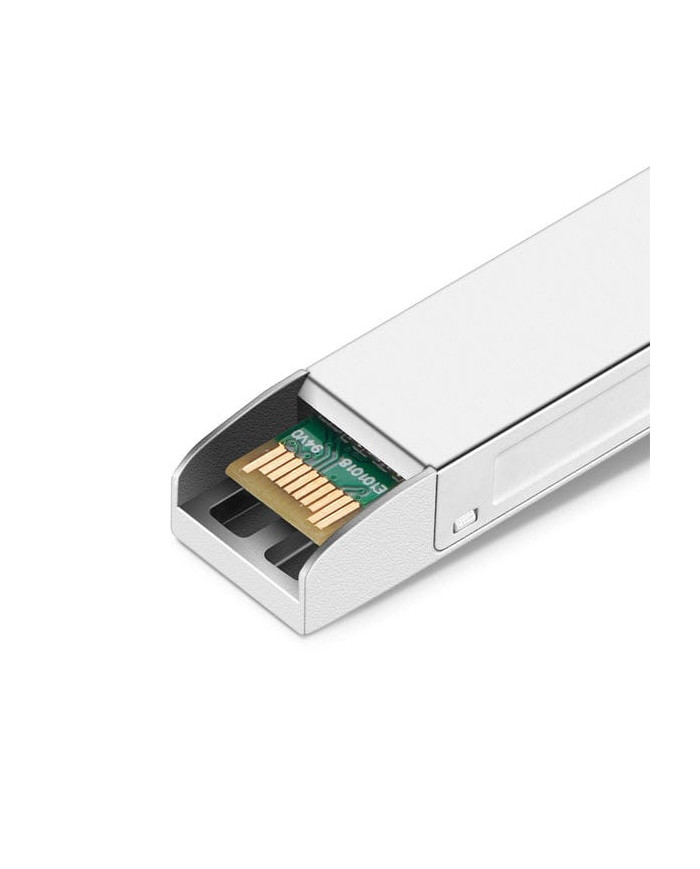

H3C SFP-GE-LX-SM1310-A 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC)

The H3C SFP-GE-LX-SM1310-A is a reliable 1000BASE-LX SFP transceiver made for long-distance single-mode fiber (SMF) connections up to 10 km. It delivers stable performance at a 1310nm wavelength with a data rate of 1.25 Gbps. This hot-pluggable module follows IEEE 802.3z and MSA standards, ensuring smooth compatibility with H3C switches and other supported networking devices. With built-in Digital Diagnostic Monitoring (DDMI), it offers real-time optical and temperature data, making network management and troubleshooting much easier. Ideal for enterprise and carrier networks, it supports Gigabit Ethernet, Fibre Channel, and FTTx applications.

Product Highlights:

• Hot-pluggable and MSA-compliant for easy installation and upgrades
• Low power usage (max 1W) for long-term reliability
• Operating temperature range: 0 to 70°C (32–158°F)
• DDMI support for real-time diagnostics
• Meets IEEE 802.3z Gigabit Ethernet standards
• FDA Class 1 laser safety and RoHS compliant
• Fully tested on H3C switches for performance and compatibility

Specifications:

• Part Number: SFP-GE-LX-SM1310-A
• Form Factor: SFP
• Data Rate: 1.25 / 1.0625 Gbps
• Wavelength: 1310nm
• Distance Support: 10 km
• Laser Type: FP
• Photodiode: PIN
• Output Power: –9.5 to –3 dBm
• Receiver Sensitivity: –20 dBm
• Voltage: 3.3V
• Connector: Dual LC
• Fiber Type: Single-mode fiber (SMF)
• Operating Temperature Options: 080°C / –40~85°C (model-dependent)
• DDMI: Available (variants with or without DDMI)
• Applications: Gigabit Ethernet, Fibre Channel, FTTx
• Compatibility: Fully compatible with H3C networking devices
