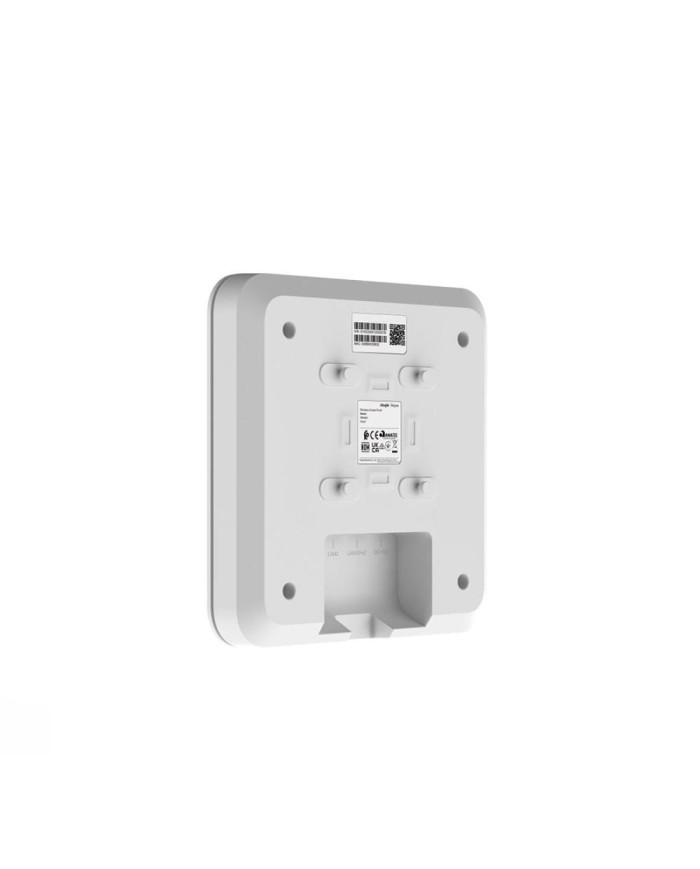

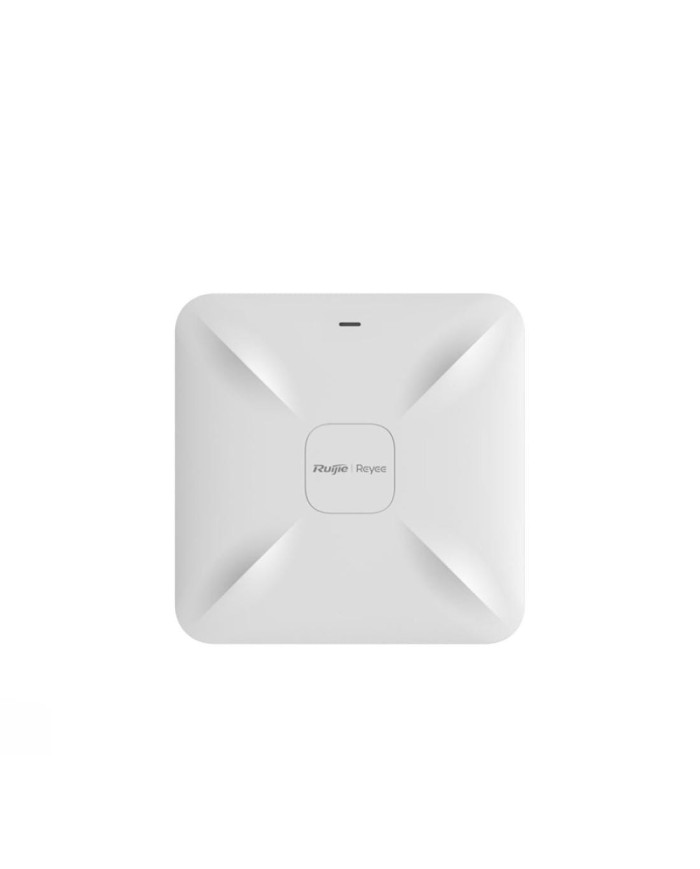

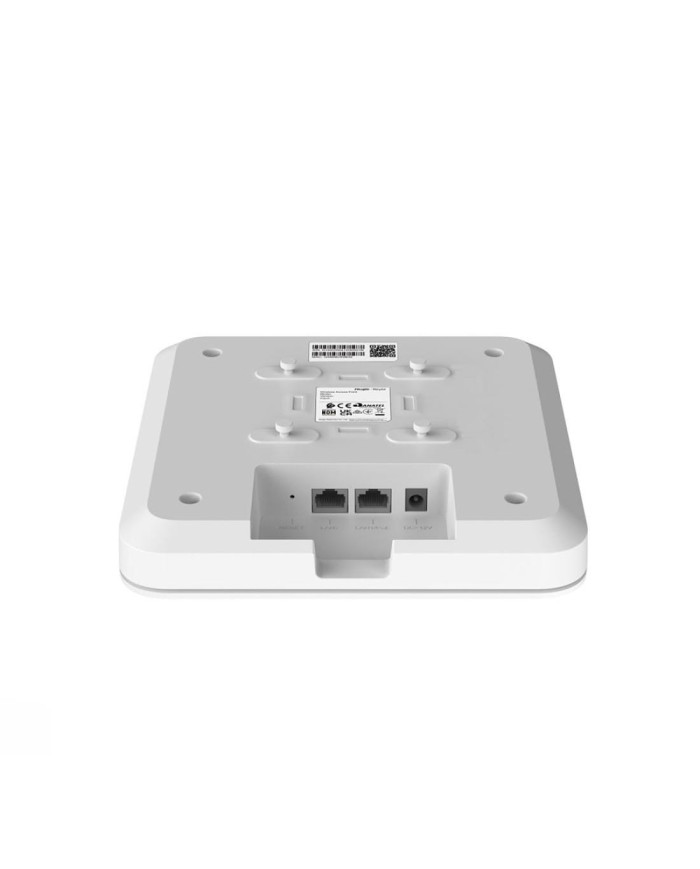

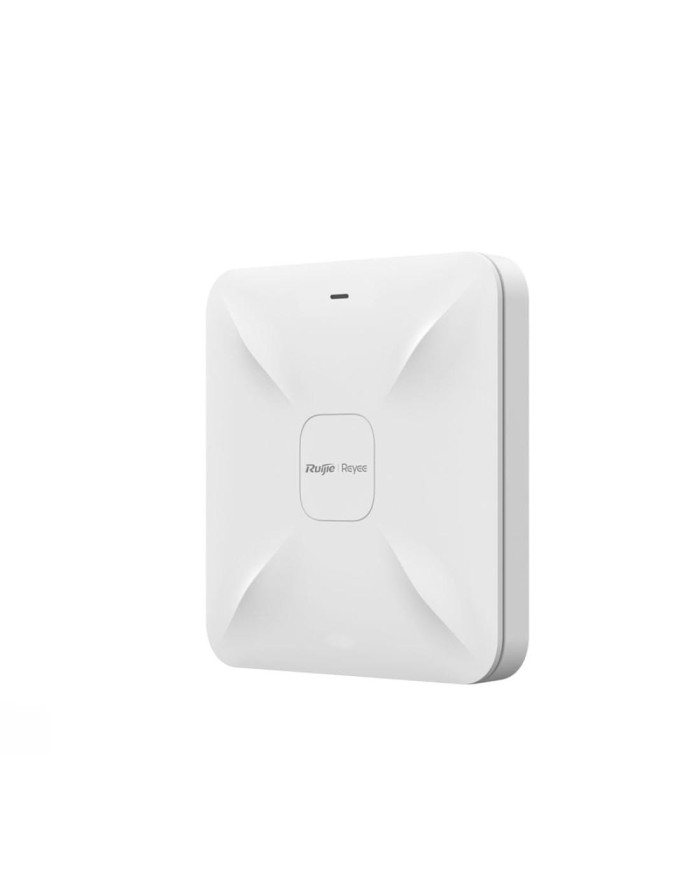

Reyee RG-RAP2200(F) Wi-Fi 5 1267Mbps Ceiling Access Point
The Ruijie Reyee RG-RAP2200(F) is a dual-band Wi-Fi 5 ceiling access point delivering speeds up to 1267 Mbps. Featuring MU-MIMO technology and 2x2 MIMO on both bands, it ensures stable, high-performance wireless coverage for offices, schools, and indoor spaces. With quick setup via the Ruijie Cloud app and remote cloud management, it's an ideal choice for easy, reliable network deployment.
Key Highlights:
- Dual-band 802.11ac Wave 2 access point offering combined speeds up to 1267 Mbps
- Supports 2x2 MIMO on both 2.4 GHz and 5 GHz frequencies for improved coverage and performance
- MU-MIMO technology allows smooth and efficient connections for multiple users at once
- Sleek ceiling-mounted design, perfect for indoor environments like offices, schools, and cafes
- Simple setup process completed in just 3 minutes using the Ruijie Cloud app
- Enables remote management and monitoring through the Ruijie Cloud platform
- One-click optimization helps automatically enhance overall wireless network performance
- Seamless roaming ensures users stay connected when moving between access points
- Delivers reliable and secure Wi-Fi with enterprise-grade stability
- Power over Ethernet (PoE) support makes installation easier without extra power cables
New
Data sheet
| Antenna gain | Built-in Omnidirectional Antennas (2.4 GHz: 2dBi, 5 GHz: 2dBi) |
|---|---|
| Operating temperature | 0°C ~ 40°C |
| Power Consumption | ≤ 12.95 W |
| Protocol | Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1) Wi-Fi 4(IEEE 802.11n) 802.11a/b/g |
| SSIDs | 8 |
| Radio | Dual-stream dual-band |
| Operating Bands | 802.11b/g/n : 2.4 GHz - 2.4835 GHz 802.11a/n/ac : 5 GHz: 5.150 GHz - 5.350 GHz, 5.725 GHz-5.850 GHz |
| Spatial Streams | 2.4 GHz: 2x2 MIMO 5 GHz: 2x2 MIMO |
| Max Throughput | Up to 400 Mbps at 2.4 GHz Up to 867 Mbps at 5 GHz 1.267 Mbps per AP |
| Service Ports | 2 x10/100M Base-T LAN1 port supports PoE |
| Power Supply | 802.3af/802.3at PoE, local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) |
| Operating Mode | AP mode and routing mode |
| Storage Temperature | -40°C ~ 70°C |
| Model | RG-RAP2200(F) |
