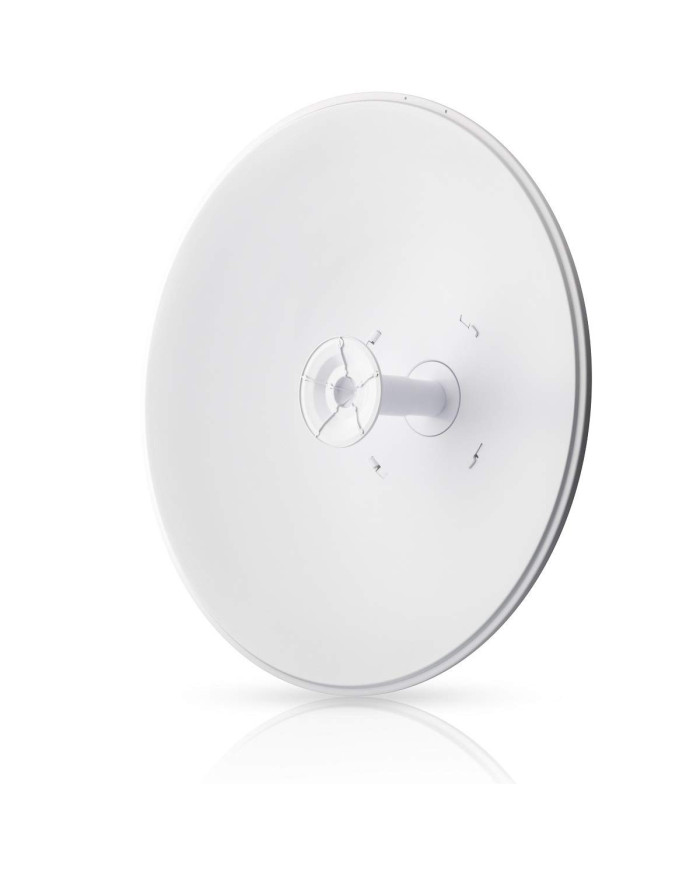

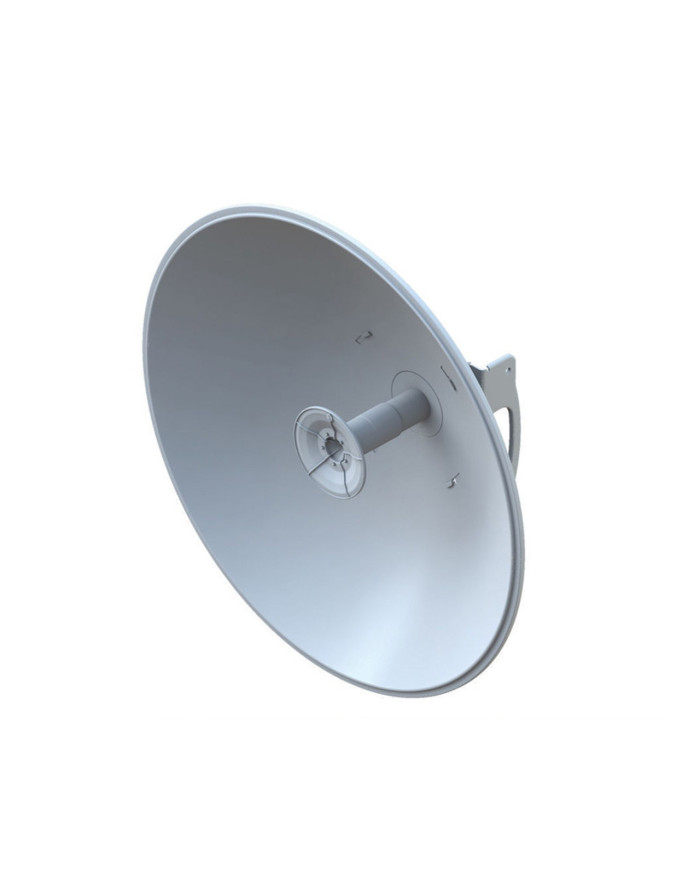

Ubiquiti AF-5G30-S45 – 5 GHz airFiber X Dish, 30dBi, Slant 45

Description:

• 5 GHz frequency range: Operates across 5.1–5.9 GHz for flexible spectrum use.
• High gain antenna: 30 dBi gain with 650 mm dish diameter enables long-distance links.
• Slant‑45° dual‑polarization: ±45° polarization boosts noise immunity & SNR.
• Dual‑linear (2×2) channels: Supports two simultaneous polarized channels for MIMO performance.
• Beamwidth: Tight 5.8° 3 dB beamwidth on both polarization planes for precise targeting.
• Front-to‑back ratio: Excellent 30 dB F/B isolation minimizes interference from behind.
• VSWR ≤1.6:1: Ensures efficient RF performance with minimal signal reflection.
• Rugged construction: Designed to withstand winds up to 200 km/h (125 mph) and 790 N force.
• Pole/rail mounting kit included: Comes with universal pole bracket, airFiber X radio bracket, and weatherproof RF jumpers.
• Compact and manageable weight: Weighs 7.4 kg (16.3 lb) including mount—portable and easier to install.
• ETSI‑compliant: Meets EN 302 326 DN2 standard for dish antennas.
• Integrated RF isolation design: Engineered to reduce side‑lobes and improve co‑site performance.

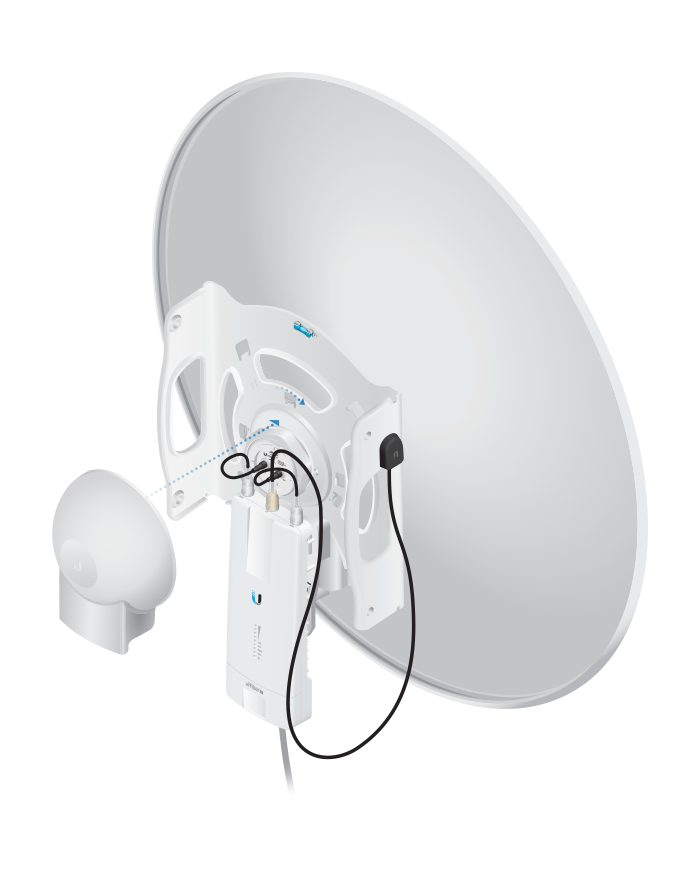

• Seamless airFiber X integration: Built‑in mount snaps onto AF‑5X radios—no tools required.
• Optional IsoBeam radome available: ISO‑BEAM‑620 adds extra shielding and isolation.
• Optional alignment kit support: Compatible with Precision Alignment Kit 620 for fine-tuning.
• Ideal for carrier‑grade PtP/backhaul links: Engineered for WISP deployments and long-range bridging.
