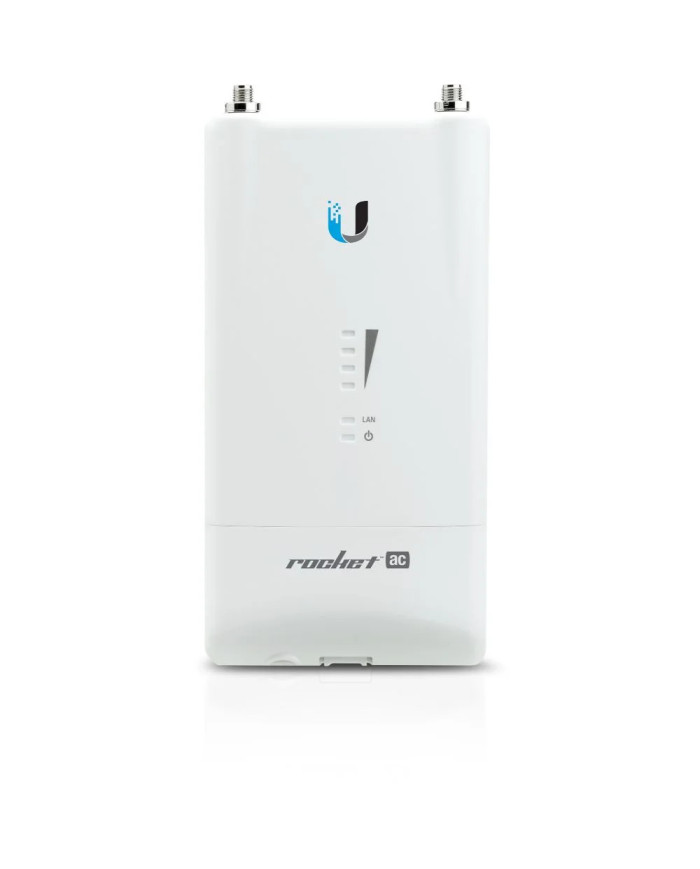

Ubiquiti R5AC-Lite Rocket Prism AC Full-Band
The Ubiquiti Rocket Prism 5AC Lite (R5AC-Lite) is a carrier-class airMAX ac BaseStation radio designed for high-performance, long-range outdoor wireless bridging and Point-to-Multipoint (PtMP) applications. It operates on the 5 GHz band and integrates advanced RF filtering with GPS synchronization for interference mitigation and enhanced scalability in dense environments.
Description:
- Frequency Band: 5 GHz full-band support (licensed and unlicensed frequencies from 5150 to 5875 MHz)
- Technology: airMAX® ac – enhanced performance and throughput over previous 802.11n
- Throughput: Up to 500+ Mbps real TCP/IP throughput
- GPS Sync: Built-in GPS receiver enables time-division multiplexing (TDMA) for synchronized transmissions
- AirView Spectrum Analyzer: Real-time spectral analysis to identify interference
- Prism Active RF Filtering: Reduces adjacent channel interference in dense RF environments
- Compatibility: Works with Ubiquiti airMAX ac antennas (e.g., RocketDish, Sector antennas)
- Form Factor: Compact, rugged design for outdoor deployment
- Enclosure: Weatherproof and UV-resistant for durability in harsh environments
- Gigabit Ethernet Port: Supports high-speed wired data transfer
- Power: 24V Passive PoE (Power over Ethernet) support
- Mounting: Easy bracket mounting for rapid deployment
- Management: Managed via Ubiquiti’s UNMS or airOS interface
- Use Cases: Ideal for long-distance Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links
- Operating Temperature: -40°C to +80°C for extreme weather conditions
- Max Power Consumption: ~8.5W, energy-efficient for solar-powered or remote setups
- LED Indicators: Signal strength and GPS sync status display
- Modulation: Supports 256QAM for higher data rates
New
Data sheet
| Dimensions | 49500 |
|---|---|
| Interface | (1) 10/100/1000 Mbps |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR FLASH |
| Operating humidity | -40 to 80° C (-40 to 176° F) |
| Operating temperature | -40 to 80° C (-40 to 176° F) |
| Power Consumption | 8.5W |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Weight | 250 g (8.81 oz) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
Reviews
No customer reviews for the moment.
