Grandstream GSC3506-V2 SIP/Multicast paging Speaker
Clear, powerful paging meets flexible SIP communication in the Grandstream GSC3506 V2, a 30W SIP paging speaker built with an HD acoustic chamber for high-fidelity voice broadcasting. Supporting multicast and group paging, push-to-talk (PTT), and PoE/PoE+/PoE++ networking, it fits public address and security communication setups that require clear audio and flexible deployment.

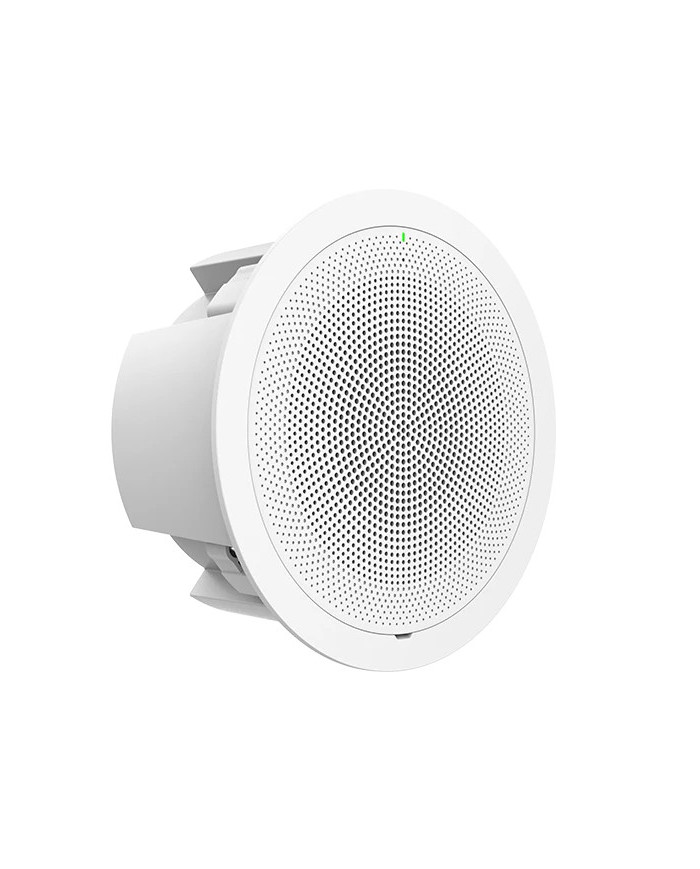

The Grandstream GSC3506 V2 provides high-fidelity SIP paging for offices, schools, hospitals, apartment complexes, and other facilities that require clear voice announcements. Its 30W coaxial speaker and integrated HD acoustic chamber are supported by full-band and wideband audio codecs, including Opus and G.722, for detailed speech reproduction. The speaker supports SIP paging, multicast paging, group paging, and push-to-talk (PTT), while call-waiting with priority override helps manage announcements alongside active communication.

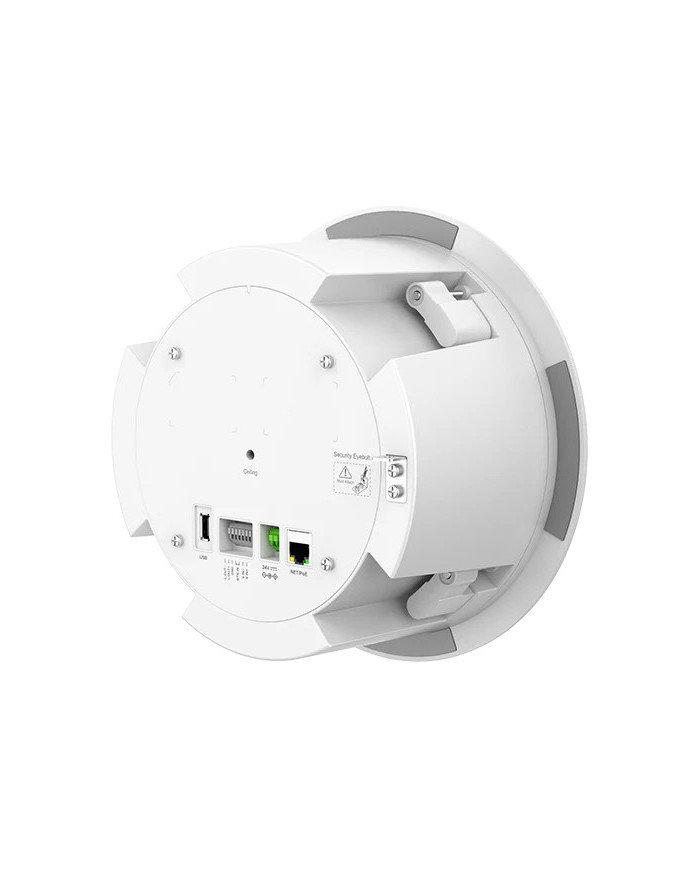

Connectivity and peripheral integration are handled through a 10/100 Mbps network port with PoE, PoE+, and PoE++ support, along with an auxiliary 24V DC power input. The GSC3506 V2 also provides a USB 2.0 port for external storage, a 2-pin switch-in interface, a 2-pin alarm-in input, and a differential line-out connection for flexible installation requirements.
Product Highlights:
- 30W high-fidelity coaxial speaker with HD acoustic chamber
- SIP, multicast, group paging, and PTT support
- Opus and G.722 wideband and full-band codecs
- 10/100 Mbps Ethernet with PoE, PoE+, and PoE++
- Call-waiting with priority override support
- USB 2.0 port for external storage
- 2-pin switch-in input for auxiliary control
- 2-pin alarm-in input for external alarms
- Differential line-out for audio integration
- 24V DC auxiliary power input
Data sheet
| Dimensions | 257.5mm (diameter) x 118mm (depth) |
|---|---|
| Memory | 256MB RAM |
| Operating humidity | 10% to 90% Non-condensing |
| Operating temperature | 0°C to 45°C |
| Voice and Fax Codecs | G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS |
| Storage Temperature | -10°C to 60°C |
| USB Connection | USB 2.0, supports external USB storage devices |
