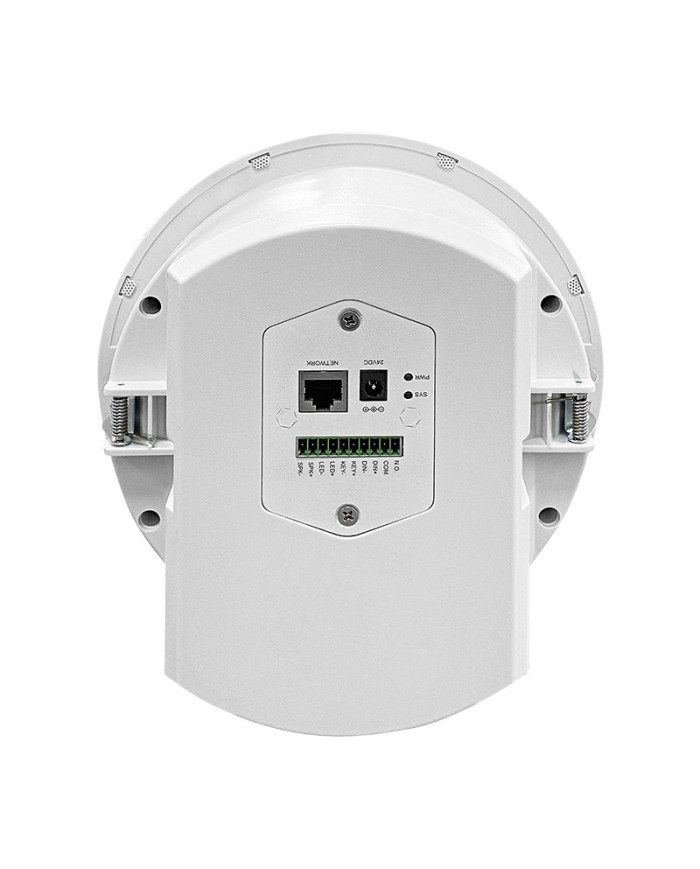

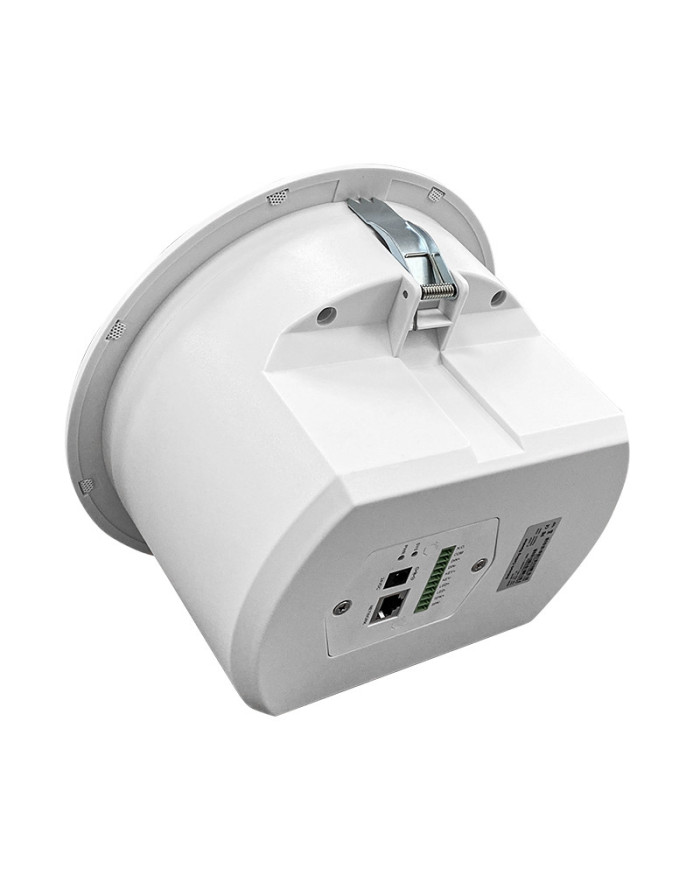

Zycoo EC15 IP Network Ceiling Speaker – 15W, SIP/PoE Enabled, High-Fidelity Driver for Paging Systems
The EC15 Network Ceiling Speaker is an affordable, high-quality SIP-enabled solution designed for commercial and educational paging systems. It features an 8" full-range driver for clear, rich audio in announcements, alerts, and music playback, along with a built-in microphone supporting two-way communication up to 10 metres. Its low-profile design integrates easily into any environment while delivering dependable communication and security functionality.
Core Features:
- Speaker component: 8" full-range driver unit
- Sensitivity: 97dB/1m/1W
- Max SPL: 105dB
- Amplifier: Class D Amplifier
- Rated power DC: 80 15W or PoE: af-8Ω 8W / at-8Ω 15W
- Frequency range: 60Hz~17KHz
New
Data sheet
| Coverage Range | 90°H 90°V(1kHz/-6dB), 30m2 |
|---|---|
| Interface | 10/100Mbps, support PoE IEEE 802.3af/at |
| Memory | 128MB RAM, 256MB Flash |
| Mounting | Cut holes in the ceiling and fix with clamps |
| Operating temperature | -20°C -50°C(-4°F - 122°F) -40° |
| Protocol | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Frequency Range | 60Hz – 17KHz |
| Color | White |
| Weight | 1.2KG |
| Speaker Sensitivity | 97dB/1m/1W |
| Storage Temperature | -40°C - 70°C(-40°F - 158°F) |
| Rated Power | DC: 8Ω 15W or PoE: af-8Ω 8W / at-8Ω 15W |
