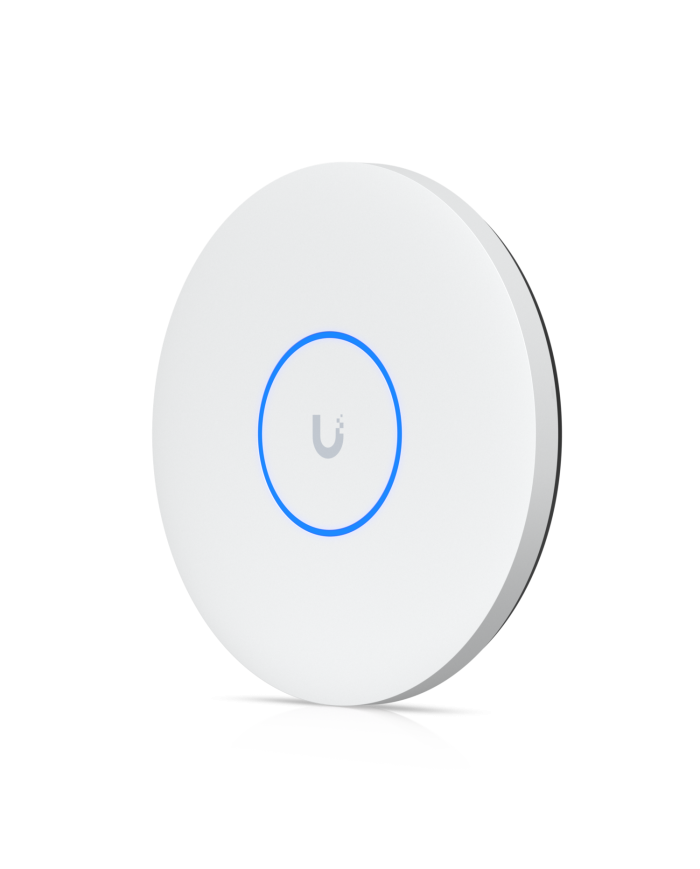

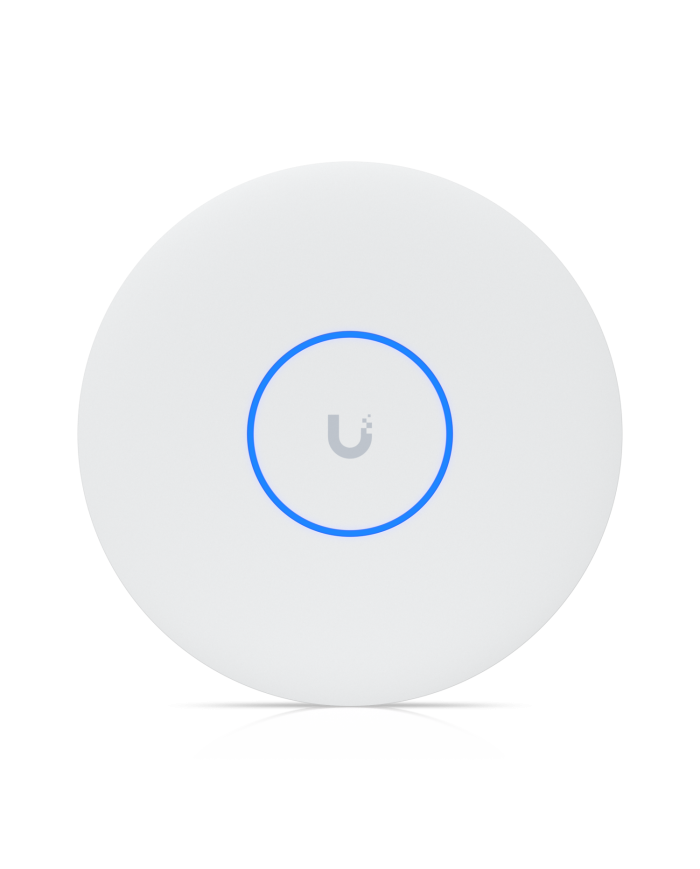

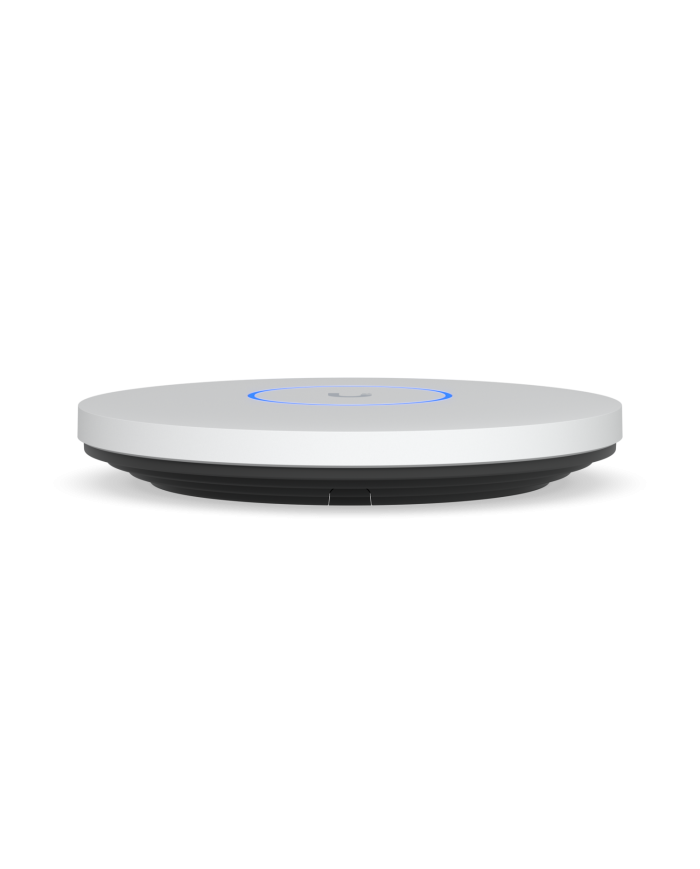

Ubiquiti U7 Pro XG Wi-Fi 7 Access Point (White)
The Ubiquiti U7 Pro XG is a ceiling-mounted Wi-Fi 7 access point designed to deliver high-speed wireless connectivity for enterprise environments. It features six spatial streams, multi-gigabit Ethernet support up to 10 GbE, broad wireless coverage, high client capacity, and PoE+ power for simplified deployment.
Built to meet the demands of modern enterprise networks, the Ubiquiti U7 Pro XG delivers high-capacity Wi-Fi 7 connectivity with multi-gigabit wired performance. Combining a 10 Gigabit Ethernet interface, six spatial streams, and intelligent wireless optimization, it is designed to support bandwidth-intensive applications and large numbers of connected users. Its compact ceiling or wall-mounted form factor, PoE+ power support, and centralized management capabilities make it an efficient solution for offices, educational facilities, healthcare environments, retail spaces, and other professional deployments.
Wireless Capabilities:
- Wi-Fi 7 technology for high-performance wireless networking
- Six spatial streams to increase network capacity and data efficiency
- Reliable wireless coverage across areas up to 140 m² (1,500 ft²)
- Supports over 300 concurrent wireless devices
- Compatible with Wi-Fi 7, Wi-Fi 6, Wi-Fi 5, and Wi-Fi 4 standards
- Supports channel widths up to 320 MHz for enhanced throughput
- Wireless transfer rates reaching up to 5.8 Gbps on the 6 GHz band
Network Infrastructure:
- 10 Gigabit RJ45 Ethernet interface for ultra-fast wired connectivity
- Integrated wireless mesh functionality for scalable network expansion
- Band steering technology for intelligent client distribution
- 802.11k, 802.11r, and 802.11v support to enable seamless client roaming
- Advanced radio management for efficient spectrum utilization
- Ethernet-based device management for centralized administration
Access & Protection:
- Private Pre-Shared Key (PPSK) authentication support
- Secure RADIUS over TLS (RadSec) authentication
- Dynamic VLAN assignment through RADIUS integration
- Passpoint (Hotspot 2.0) support for streamlined guest connectivity
- Custom captive portal with multiple authentication and branding options
- Client isolation and guest network separation for enhanced protection
- Wi-Fi scheduling and bandwidth control for improved network management
Deployment Specifications:
- Supports both ceiling and wall installations with Lite Mount compatibility
- Powered using PoE+ for simplified infrastructure deployment
- Operates within a 42.5–57V DC input range
- Maximum power consumption of 22 W
- Constructed with a UV-stabilized polycarbonate enclosure and aluminum alloy housing
- Durable stainless steel and galvanized steel mounting components
- Integrated white and blue LED system status indicator
System Compliance:
- Designed to operate in temperatures from -30°C to 40°C
- Supports operating humidity from 5% to 95% (non-condensing)
- NDAA compliant for enterprise and government environments
- Certified to CE, FCC, and IC standards
Data sheet
| Dimensions | ⌀206 x 32.5 mm (⌀8.1 x 1.3") |
|---|---|
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Consumption | 22W |
| Weight | 750 g (1.7 lb) |
| Coverage Area | 140 m² (1,500 ft²) |
| Spatial Streams | 6 |
