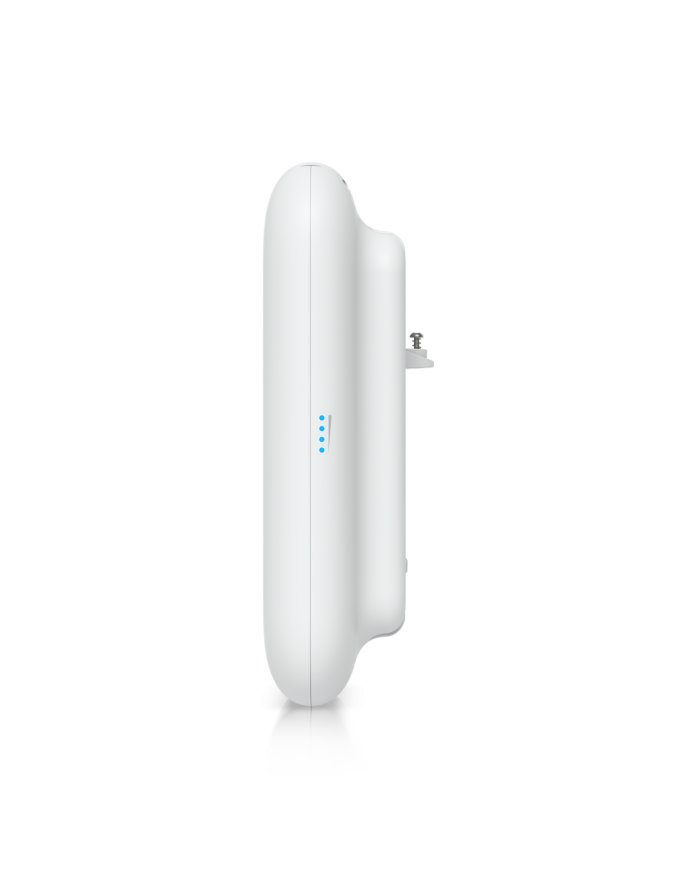

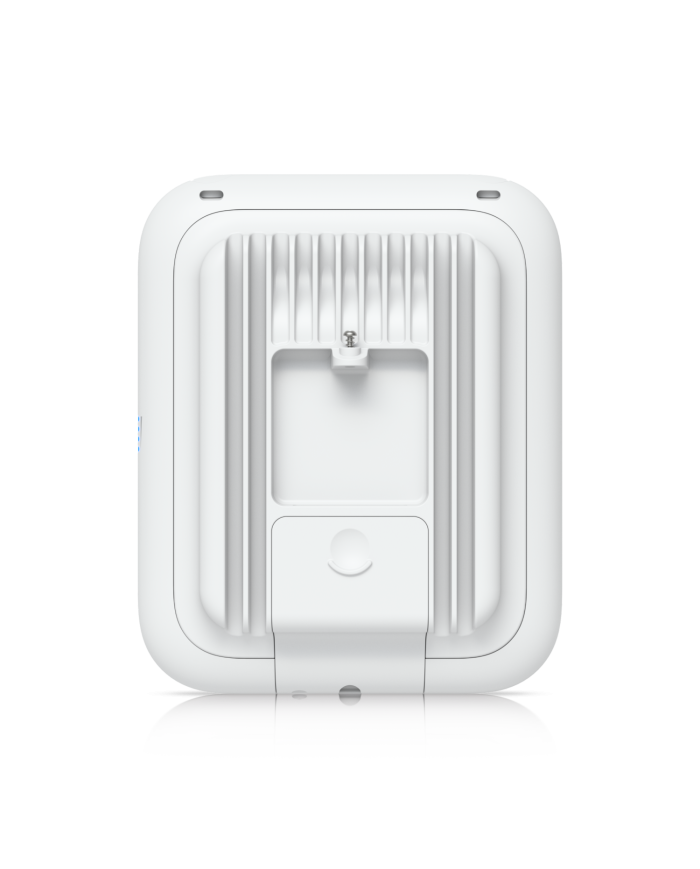

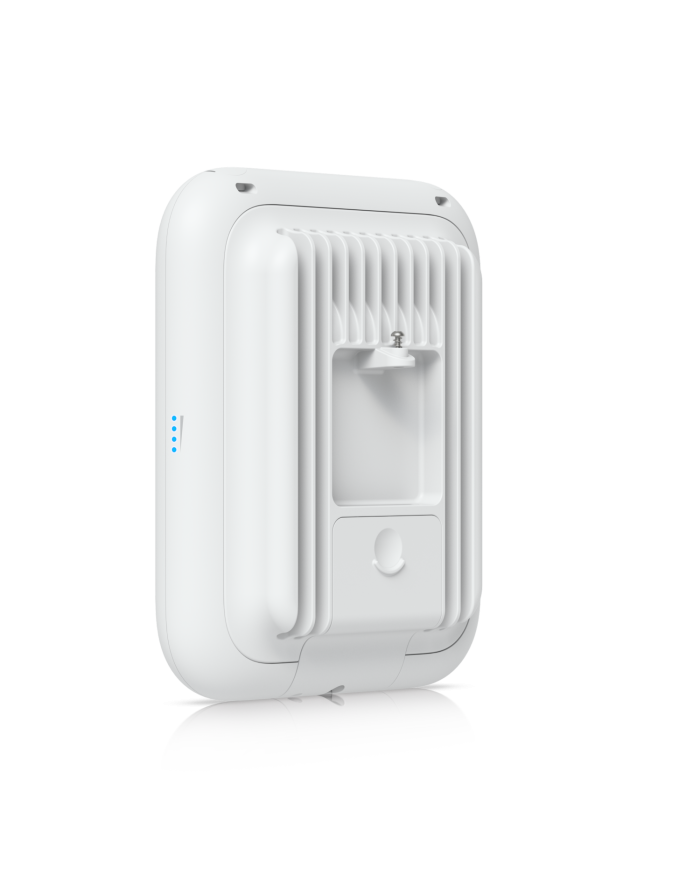

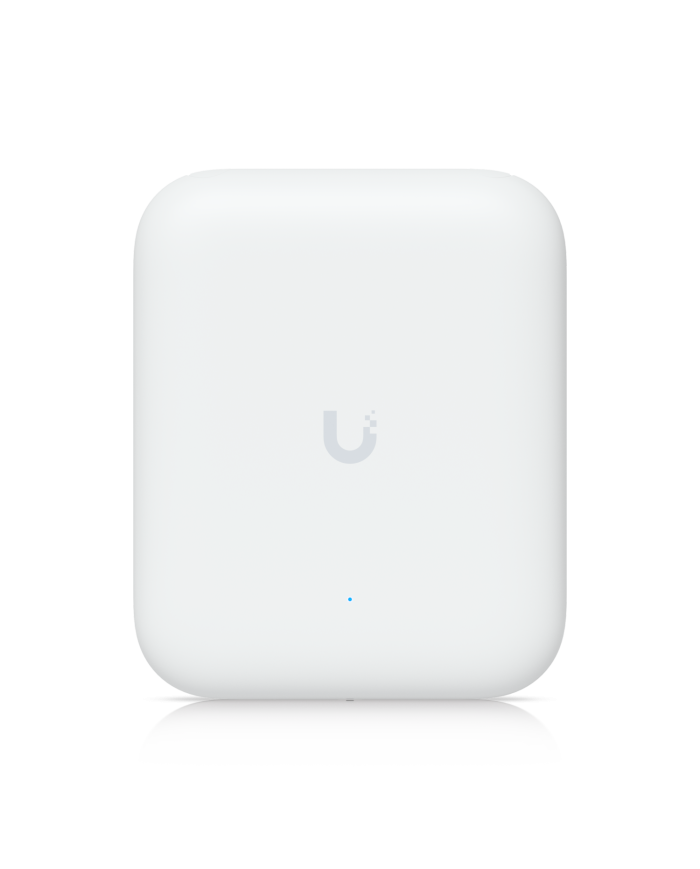

Ubiquiti UniFi U7 Pro Outdoor Tri-Band Wi-Fi 7 Access Point
The Ubiquiti UniFi U7 Pro Outdoor is a high-performance Wi-Fi 7 access point designed for reliable outdoor wireless coverage. It features tri-band connectivity, six spatial streams, an IP67-rated weatherproof enclosure, extended-range 6 GHz support with AFC, and a built-in directional antenna for optimized long-range performance.
Engineered for dependable outdoor wireless networking, the UniFi U7 Pro Outdoor combines high-capacity Wi-Fi performance with enterprise-grade management and security capabilities. Its rugged construction, advanced connectivity options, and intelligent network features make it an ideal solution for campuses, commercial facilities, hospitality venues, and other large-scale outdoor deployments.
Wireless Performance:
- Wi-Fi 7 access point with advanced tri-band wireless technology
- Six spatial streams for increased throughput and network capacity
- Delivers wireless coverage across areas up to 465 m² (5,000 ft²)
- Accommodates more than 300 simultaneously connected devices
- Configurable Wi-Fi schedules for automated wireless availability
- Adjustable Wi-Fi speed limits for optimized bandwidth allocation
Network Connectivity:
- 2.5 Gigabit RJ45 Ethernet interface for high-speed network connectivity
- Built-in wireless mesh capability for simplified network expansion
- Intelligent band steering to optimize client connections
- 802.11k, 802.11r, and 802.11v support for uninterrupted roaming
- Advanced radio optimization for improved signal quality and reduced interference
- Managed through a dedicated Ethernet connection
Security & Access Control:
- Private Pre-Shared Key (PPSK) support for secure user authentication
- RADIUS over TLS (RadSec) for encrypted authentication traffic
- Dynamic VLAN assignment through RADIUS authentication
- Passpoint (Hotspot 2.0) support for secure public Wi-Fi access
- Customizable captive portal with multiple guest authentication methods
- Client device isolation to strengthen network security
- Guest network isolation for controlled visitor access
Installation & Durability:
- IPX6 and IP67-rated enclosure for reliable outdoor operation
- Powered via PoE+ with an operating voltage range of 42.5–57V DC

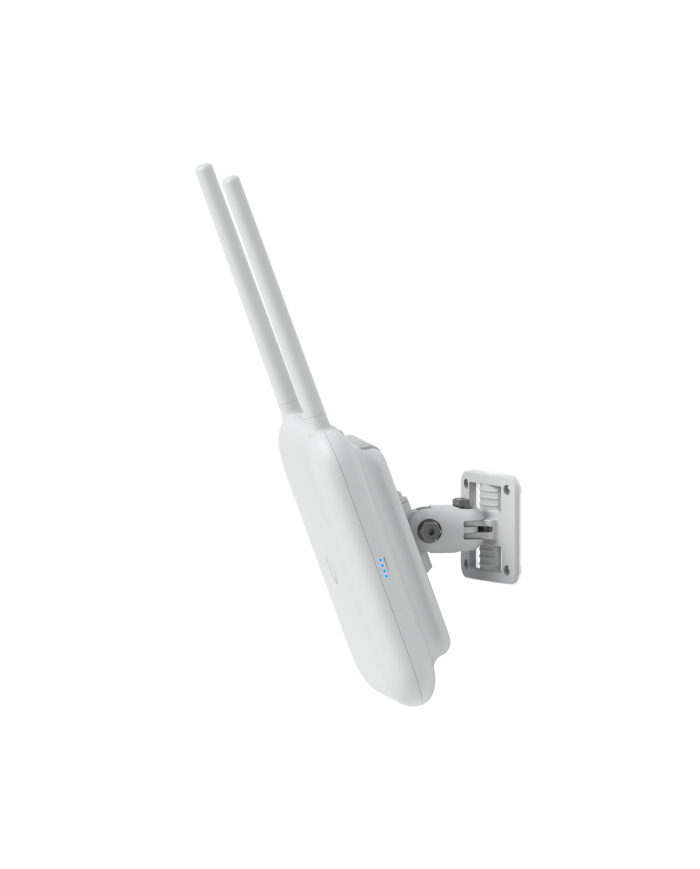

- Supports wall and pole mounting with pole diameters from 25 to 63.5 mm (1–2.5 inches)
- UV-resistant polycarbonate enclosure with aluminum alloy construction
- UV-stabilized mounting bracket for long-term outdoor durability
- Wind-resistant design capable of withstanding loads up to 200 km/h (125 mph)
Hardware & System:
- Maximum power consumption of 21 W
- Multi-status LED indicators for power and mesh signal monitoring
- NDAA compliant for approved enterprise and government deployments
- Certified to FCC and IC regulatory standards
Data sheet
| Dimensions | 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") |
|---|---|
| Mounting | Wall, Pole (Mounts Included) |
| Operating humidity | 5 to 95% noncondensing |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Power Consumption | 21W |
| WiFi | WiFi 7 |
| Weight | Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Coverage Area | 465 m² (5,000 ft²) |
| Spatial Streams | 6 |
