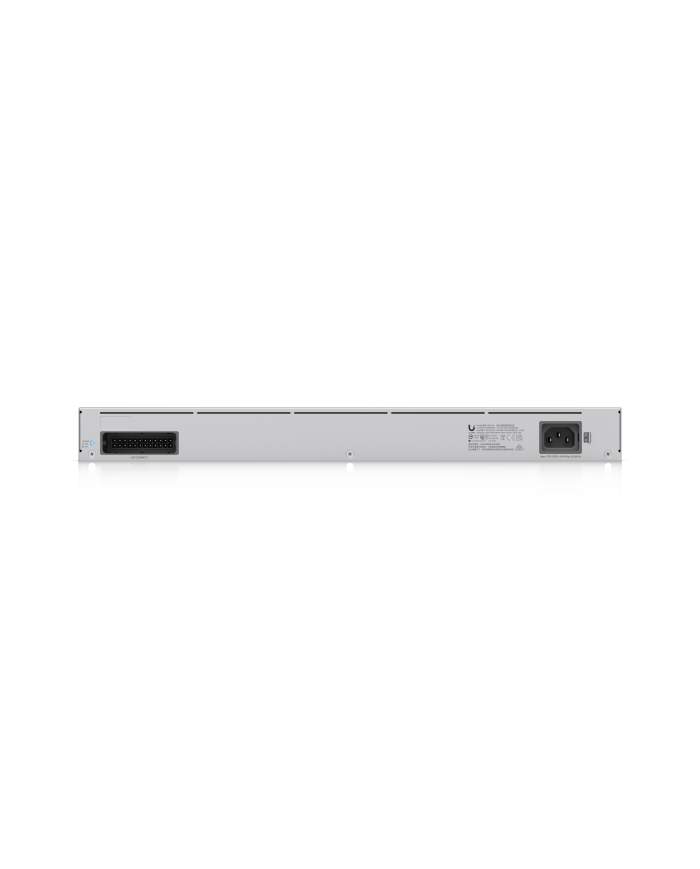

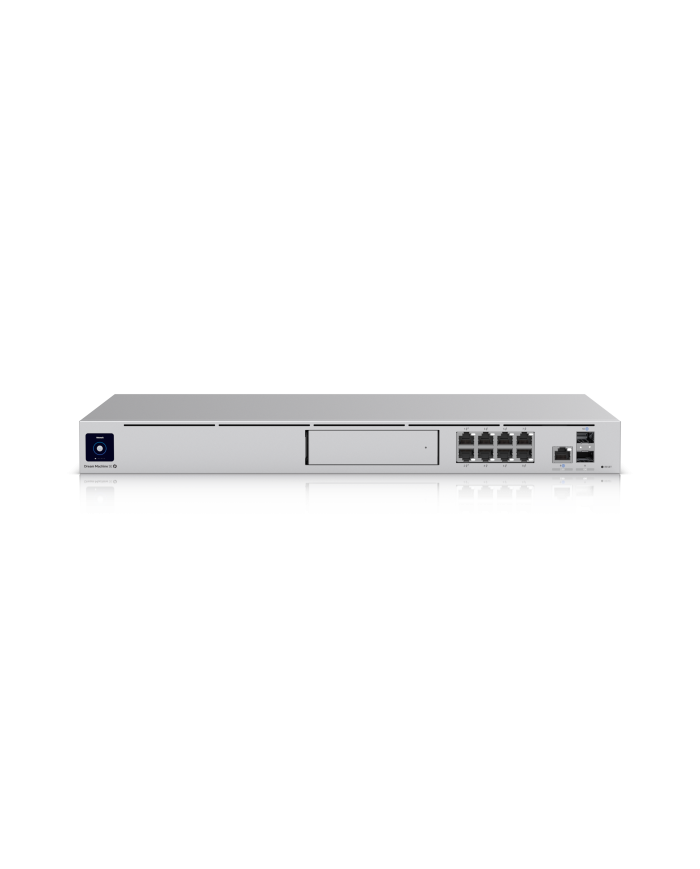

Ubiquiti UniFi Dream Machine Special Edition UDM-SE Router & Gateway
The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a powerful UniFi OS Console designed for both home and business networks. It combines high-speed dual-WAN connectivity, an integrated Gigabit PoE switch, and built-in network video recording with internal storage, making it an efficient all-in-one solution for network management and security.
The Ubiquiti UDM-SE is an all-in-one UniFi OS Console that combines routing, network security, PoE switching, and video recording capabilities in a single platform. It enables centralized management of UniFi networking and security devices while offering the performance and scalability needed for modern business environments. With support for dual-WAN connectivity, integrated storage, and a rack-mountable design, it provides a reliable solution for expanding and managing enterprise networks.
Key Features:
- 8 Gigabit RJ45 ports with integrated PoE support
- 6 x 802.3af PoE and 2 x 802.3at PoE+ LAN ports
- 1 x 10G SFP+ LAN port
- Dual-WAN connectivity with 10G SFP+ and 2.5GbE RJ45
- 1.7GHz quad-core processor
- 4GB system memory
- 1.3-inch LCM color touchscreen for network monitoring
- 128GB built-in storage for UniFi OS applications
- Integrated router, security gateway, PoE switch, and NVR
- 1U rack-mountable form factor
Data sheet
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
|---|---|
| Memory | 4 GB |
| Mounting | Rack mount (1U) |
| Operating humidity | 5 to 95% noncondensing |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| PoE Power Budget | 180W |
| Power Consumption | 50W (Excluding PoE Output) |
| Users | 1,000+ |
| Weight | 5 kg (10.9 lb) |
| Power Supply | AC/DC, internal, 240W |
| WAN Port | 8 |
