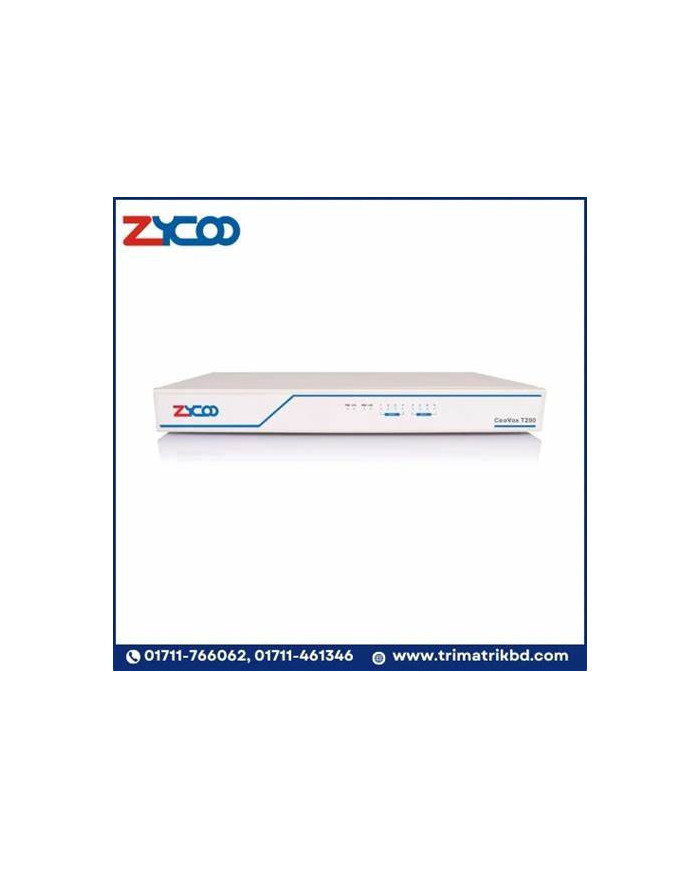

Zycoo CooVox-T200 IP PBX 200 extensions - 80 concurrent calls without modules (8 FXO capacity)
The Zycoo CooVox-T200 is a compact SMB IP-PBX host that supports up to 200 SIP extensions and 80 concurrent calls out of the box, with two module slots for up to 8 analog/GSM modules (e.g., FXO/FXS/GSM) and large on-device recording/storage options.
Description:
- Supports 200 SIP extensions (maximum).
- Up to 80 concurrent/simultaneous calls.
- Host chassis with 2 expansion slots for modules (FXO/FXS/GSM/WCDMA).
- Maximum of 8 FXO/FXS/GSM interfaces when modules populated.
- Built on an ARM multi-core platform (ARM 4-core noted in datasheet).
- 1 GB DDR3 RAM typical for T200 models.
- 8 GB industrial SD + optional 1 TB surveillance HDD for recordings and storage.
- On-board storage & voicemail / call recording capacity (advertised up to ~15,000 hours with HDD).
- Supports standard VoIP protocols (SIP/RFC3261) and common codecs.
- Full PBX features: IVR/Auto-attendant, call routing, voicemail, call recording, CDR/history.
- Conference support (multiple conference rooms; vendor lists “unlimited” rooms, practical limits noted in datasheet).
- LAN/WAN Ethernet interfaces (10/100 Mbps).

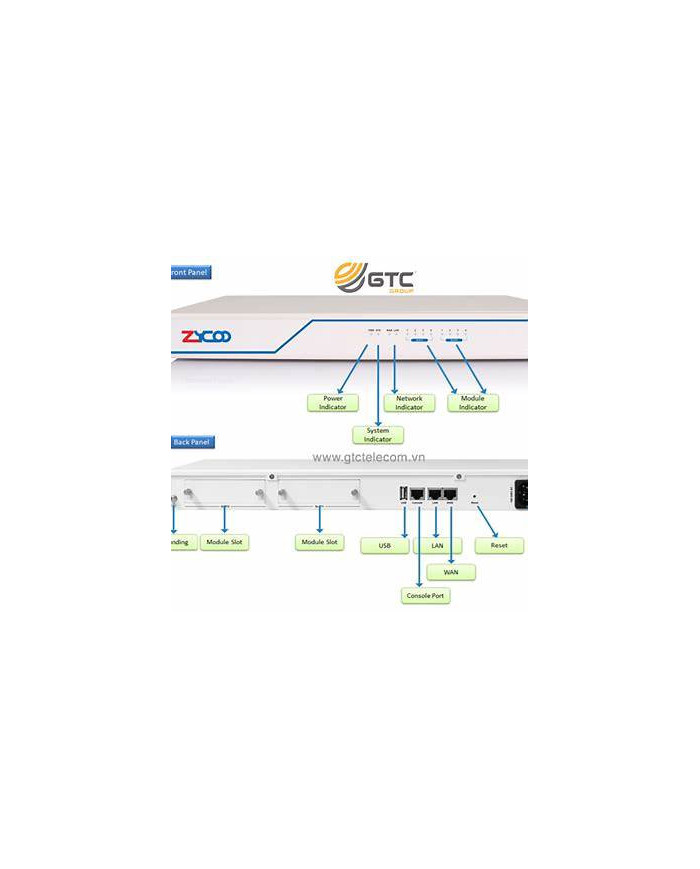

- Console/USB ports and reset button on rear panel; rack/desktop form factor.
- Power: AC 100–240V, 50/60Hz (typical PBX host power specs).
- Expandable by adding Zycoo modules or pairing with Zycoo G-series gateways for PSTN connectivity.
- Firmware & feature updates available from Zycoo (firmware, user guides and QIG on official downloads).
- Suitable for SMB deployments (reception, call centers, branch offices) where ~200 users and up to 80 simultaneous calls are required.
New
Data sheet
| CPU | ARM 4 Core |
|---|---|
| Interface | WAN，LAN（10/100Mbps） |
| Max Concurrent Calls | 80 |
| Storage size | 8G SD Card (Industrial grade)+ 1TB Sueillance HDD |
| RAM | 1GB DDR3 |
| Console port type | 1 Po（Rate 115200） |
| Power Supply | AC 100~240V, 50/60Hz, MAX1.5A |
| USB Connection | 1 Po（File system format：FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4） |
