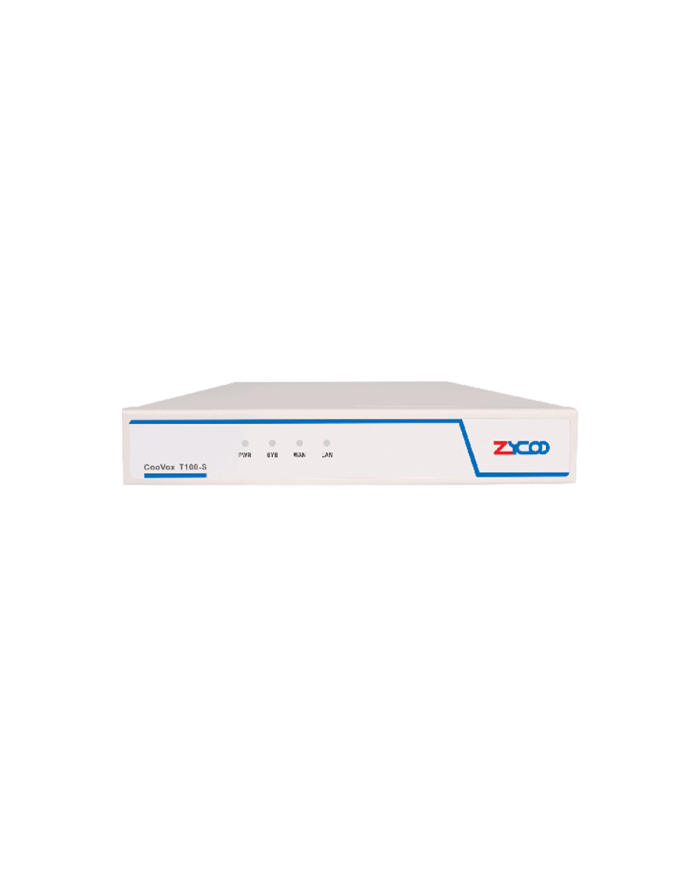

Zycoo CooVox-T100S IP PBX, 100 Extension, 50 Concurrent calls
The Zycoo CooVox‑T100S is a compact yet powerful IP PBX system tailored for small and medium-sized businesses. It supports up to 100 users/extensions and can handle 50 simultaneous calls, featuring modular hardware, rich telephony software, and flexibility for mixed analog and VoIP environments.
Descriptions:
- Closed for 100 extensions, supports 50 concurrent calls
- CPU: ARM 4‑core, RAM: 1 GB DDR3, Storage: 8 GB industrial SD
- Dual Ethernet ports (WAN and LAN, 10/100 Mbps)
- USB port supports FAT16/32, exFAT, NTFS, EXT3/4 extension
- Console port for local management (115200 bps)
- Reset button and DC 12 V/1 A power supply included
- Up to 400 hours of call recording and voicemail storage
- Full suite of IPPBX features: Caller ID, auto-answer, IVR, conferencing, call recording, queues, parking, transfer, DND, DIDS
- Rich modular design: expand with EX16S box to add analog FXO/FXS, GSM, E1/T1 modules
- Compatible with SIP trunks, analog PSTN, GSM, PRI, Vox lines
- Easy provisioning: QR-code or plug‑and‑play for IP phones and softphones (CooCall) and Softphone (CooCall) for iOS/Android with push notifications, click-to-call, call recording
- Operator Panel software supports paging, music on hold, emergency announcements, scheduled broadcasts
- Built-in billing system with flexible prepaid/postpaid rates, usage stats
- Remote management capability and hot‑standby failover for high availability
- Third‑party SIP interoperability: works with Cisco, Poly, Yealink, Avaya, CRMs, PMS, etc. via API
- Certifications include EN 55032, EN 55035, EN 61000‑3‑2/3, FCC Part 15B Class A, EN 62368‑1
- Firmware/software regularly updated (v4.x series), stable and secure
New
Data sheet
| CPU | ARM Cortex-A9 Quad-Core, 1.2GHz |
|---|---|
| Dimensions | 210mm × 150mm × 36mm |
| External Storage | USB |
| Interface | 2 × 10/100 Mbps Ethernet (WAN + LAN) |
| Max Concurrent Calls | 50 Sip Calls |
| Memory | 1GB DDR3 |
| Mounting | Desktop or wall-mount (no rack mount) |
| Operating humidity | 10% – 90% (non-condensing) |
| Operating temperature | 0°C to 45°C |
| SIP Accounts | 100 |
| Storage size | 8GB Industrial SD Card |
| Weight | 0.7 kg |
| Power Supply | DC 12V, 1A |
