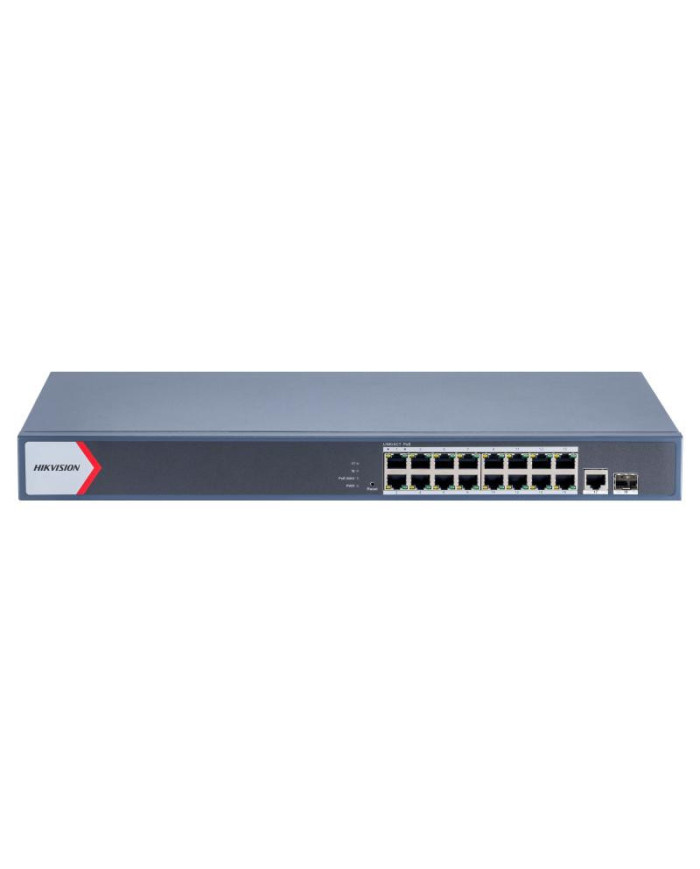

Hikvision DS-3E1518P-EI/M 16 Port Gigabit Smart POE Switch
The Hikvision DS-3E1518P-EI/M is a 16-Port Gigabit Smart PoE Switch that combines intelligent Layer 2 management with a 130W PoE budget, dedicated Gigabit RJ45 and SFP uplinks, and advanced security features for efficient surveillance and business network deployments.
Built to support modern surveillance and business networking environments, the Hikvision DS-3E1518P-EI/M combines high-speed Gigabit connectivity with intelligent Layer 2 management in a compact 1U rackmount design. It features 16 Gigabit PoE ports with a 130W power budget, along with dedicated Gigabit RJ45 and SFP uplink ports for flexible network expansion. Advanced capabilities such as IEEE 802.1Q VLAN, QoS, Link Aggregation, STP/RSTP, DHCP Snooping, and PoE Watchdog help improve network performance, simplify maintenance, and enhance security. Additional features including cable detection, long-range transmission up to 300 meters, 6 kV surge protection, and remote management through Hik-Partner Pro, Hik-Central Pro, and a web interface make it a dependable choice for enterprise, commercial, and IP surveillance deployments.
Core Features:
- 16 Gigabit PoE ports with a 130W total PoE power budget
- Dedicated Gigabit RJ45 and SFP uplink ports for flexible network expansion
- Smart Layer 2 management with VLAN, QoS, Link Aggregation, and STP/RSTP
- PoE Watchdog, cable detection, and port isolation for simplified maintenance
- Long-range PoE transmission up to 300 meters
- Remote management via Web, Hik-Partner Pro, and Hik-Central Pro
- 1U rackmount metal enclosure with 6 kV surge protection and energy-efficient operation
Data sheet
| Dimensions | 440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'') |
|---|---|
| MAC Address Table Size | 8 K |
| Mounting | Rack (equipped with mounting ears) |
| Operating temperature | 0 °C to 45 °C (0 °F to 113 °F) |
| Packet Forwarding Rate | 41.66 Mpps |
| Power Consumption | 150 W |
| Switching Capacity | 56 Gbps |
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 2.5 A |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Ports | 16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
