Huawei POE injector - AD-560062T0E, 802.3af/at, 35W

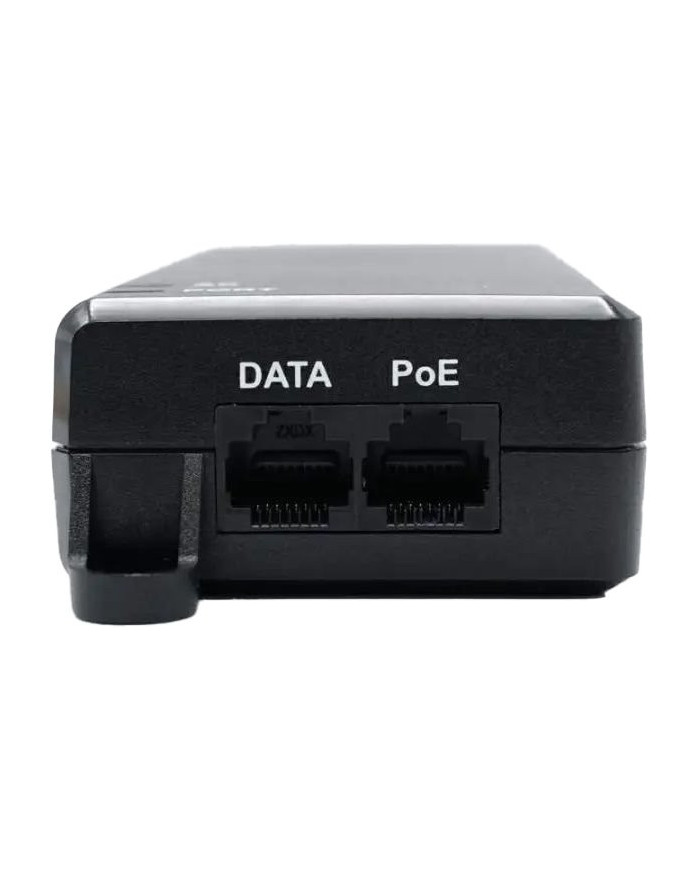

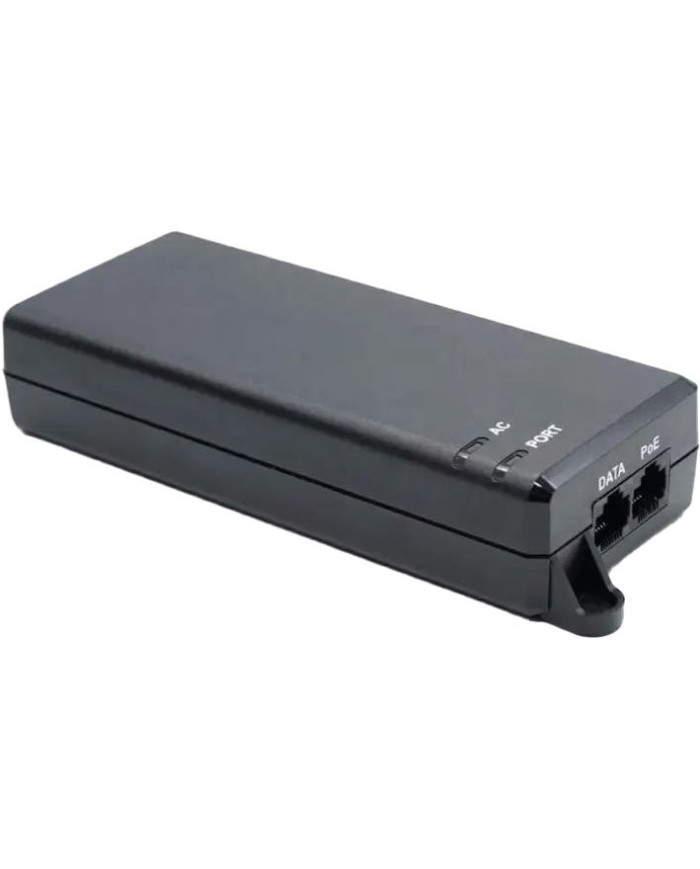

The Huawei AD-560062T0E is a 35W PoE injector designed to provide both power and network connectivity to compatible devices through a single Ethernet cable. Supporting IEEE 802.3af and 802.3at standards, it can power devices such as access points and other PoE-enabled network equipment while maintaining Gigabit data transmission at speeds of up to 1,000 Mbit/s. The injector features two RJ45 ports, with one connecting to a switch or network device and the other delivering combined data and PoE power to the connected equipment. This makes it a practical solution for installations where PoE power is required but a PoE-enabled switch is not available.

Designed for flexible indoor network deployments, the AD-560062T0E accepts a rated input of 100–240V AC and provides a 56V DC output with a maximum power rating of 35W. Its operating input range extends from 90–290V AC, while the compact desktop form factor allows convenient placement in different installation environments. With Gigabit Ethernet support and straightforward PoE power delivery, this Huawei PoE injector is well suited for expanding or upgrading network installations without replacing an existing non-PoE switch.

Product Highlights:

• IEEE 802.3af/at PoE standard support
• 35W maximum rated PoE output power
• 56V DC rated output voltage
• Gigabit Ethernet support up to 1,000 Mbit/s
• 2 x RJ45 ports for data input and PoE output
• 100–240V AC rated input voltage
• 90–290V AC operating input range
• Compact desktop design for flexible placement
