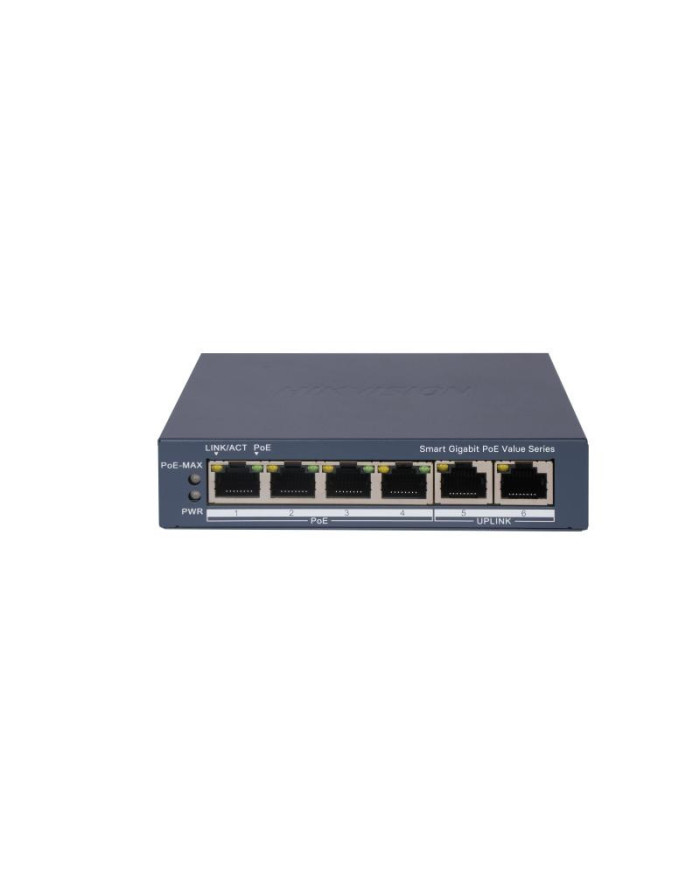

Hikvision DS-3E1506P-E/M 4+2 Port All Giga POE
The Hikvision DS-3E1506P-E/M is a 6-Port Gigabit PoE Switch designed for surveillance and business networks, featuring 4 Gigabit PoE Ethernet ports to power IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices through a single Ethernet cable. Its compact, fanless design delivers quiet operation, reliable Gigabit connectivity, and efficient network performance.
The DS-3E1506P-E/M simplifies network setup by delivering both power and data over a single Ethernet cable, removing the need for separate power cabling to IP cameras, access points, and VoIP devices. Full Gigabit performance across all ports keeps data transmission fast and stable, making it well suited for high definition surveillance systems and busy network environments where consistent throughput matters. Its fanless design keeps operation quiet, while built in protection features guard connected equipment against surges and unstable power conditions, making it a dependable core switch for both new installations and network upgrades.
Key Highlights:
- 4 Gigabit PoE ports and 2 Gigabit RJ45 uplink ports
- Total PoE power budget of 45W
- 802.1Q VLAN support for network segmentation
- PoE watchdog that automatically detects and restarts unresponsive cameras
- STP and RSTP support to prevent network loops
- Built in cable detection to help locate connection faults
- Long range PoE transmission up to 300 meters
- 6kV surge protection for added equipment safety
Data sheet
| Dimensions | 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'') |
|---|---|
| MAC Address Table Size | 2 K |
| Mounting | Desk-Mounted,Wall-Mounted |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Packet Forwarding Rate | 10.42 Mpps |
| PoE Power Budget | 45 W |
| Power Consumption | 50 W |
| Switching Capacity | 14 Gbps |
| Power Supply | 54VDC, 0.92A |
| Port Surge Protection | 6 kV |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Ports | 4 × Gigabit PoE port,2 × Gigabit RJ45 port |
