Yealink MVC-S90-C5U-004 Native Microsoft Teams Rooms system for BoardRoom room
Designed to make large-room Teams meetings natural, dynamic, and scalable — this system blends powerful AI tracking with flexible deployment and intuitive control, delivering an enterprise-grade conferencing experience.
Description:
- Native Microsoft Teams Rooms on Windows solution tailored for extra-large boardrooms and training spaces
- Includes two UVC86 USB PTZ 4K cameras, each with 12× optical zoom and intelligent speaker/presenter tracking

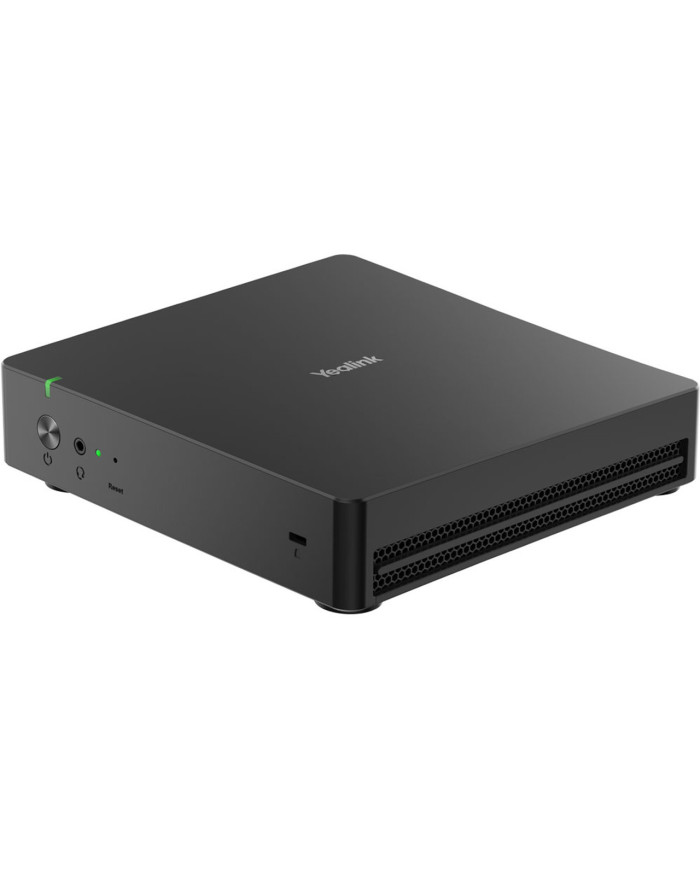

- Powered by the MCore 4 (MCore Pro) mini-PC, featuring an Intel Ultra5 125H / 11th Gen i5 CPU, preloaded with Windows 11 IoT Enterprise & MTR app

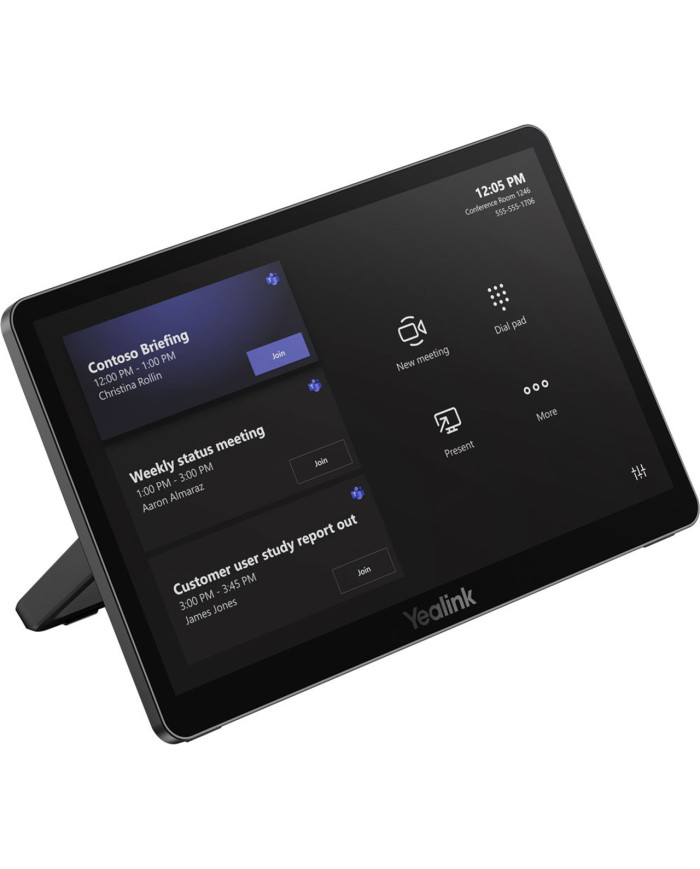

- MTouch Plus – an 11.6″ narrow-frame touchscreen (FHD), acts as the room’s control console for Teams meetings, calendar, layouts, etc
- AVHub – modular A/V processor that supports up to nine cameras and various mics/speakers, allows flexible layouts and multi-camera composition
- IntelliFocus & multi-camera AI-Director modes – automatically track speakers, switch views, and sync cameras to follow action seamlessly
- BYOD-Extender – a USB adapter allowing your laptop to use the room’s AV setup for flexible meeting flow
- RoomSensor – ceiling-mounted sensor that handles auto wake-up and displays environmental info (temperature, humidity) on the controller
- Expandable/modular – multiple sets can be networked via CAT5e for merged or divisible room configurations
- Centralized management via Yealink’s Device Management platform for easier deployment and monitoring
- Flexible mic integration – compatible with wired ceiling or desktop mics (e.g., VCM series) or wireless options, adapting to room setup
- Scalable camera support – AVHub supports up to 9 UVC86 cameras, ideal for very large or segmented spaces
- Robust connectivity – includes Gigabit Ethernet, Wi-Fi, Bluetooth 5.2, multiple HDMI and USB ports for displays and peripherals
- High-quality optics – UVC86 delivers smooth PTZ operation with auto framing, presenter tracking, and high-resolution imagery

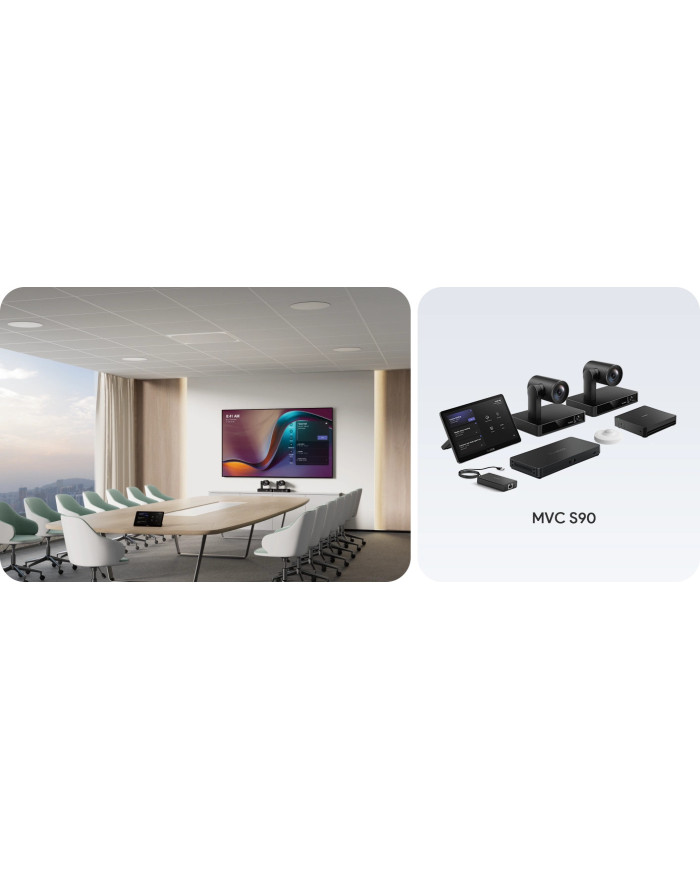

- Boardroom focus – specifically engineered for boardrooms, offering professional-grade coverage, control, and collaboration
New
Data sheet
| Bluetooth | BT 5.2 |
|---|---|
| Camera | Dual 4K PTZ UVC86 with 12× zoom, AI tracking |
| Display | 11.6-inch narrow bezel IPS display , 1920 x 1080 video resolution • Angle between screen and desktop (30° ~ 70°) , Adjustable angle of support frame (50° ~ 180°) |
| Memory | Memory: 8 GB (2 x 4GB) |
| Operating system | Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64 , Windows 10 IoT Enterprise License , Microsoft Teams Rooms App, support Skype for Business on-premiseonline and Teams meetings ,Yeallink RoomConnect *Windows 11 will be supported in 23H2 |
| Presets | Up to 9 preset positions can be set |
| Storage size | Storage: 128 GB SSD |
| WiFi | • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax |

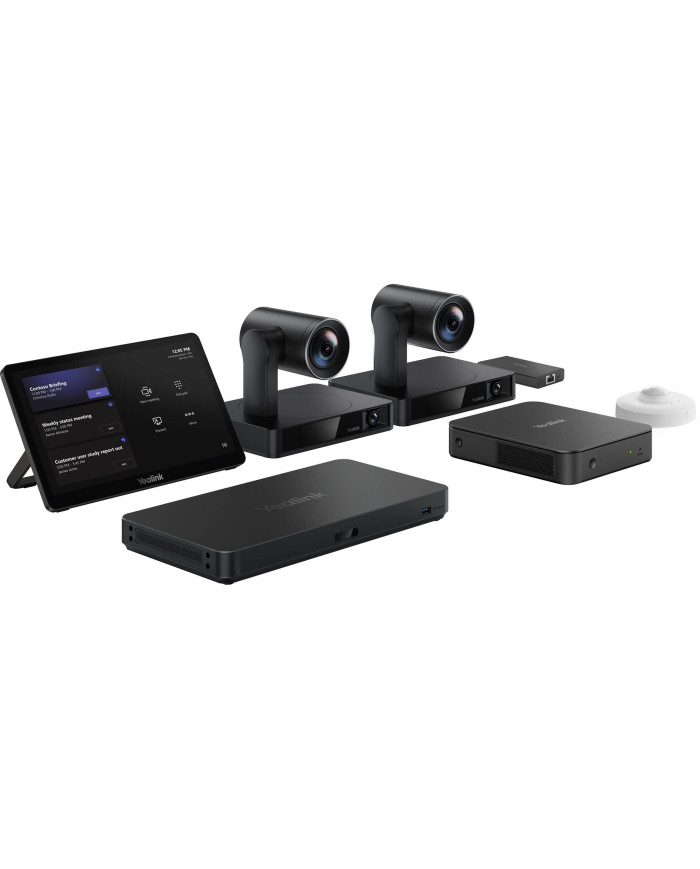

| Package Content | MCore Pro , Gen-3 Mini-PC , MTouch Plus, Gen3 touch panel • AVHub, audio and video processor • 2 x UVC86 USB PTZ camera • 2 x WPP30 wireless presentation pod • RoomSensor, meeting room sensor |
| Horizontal Rotation | 200° |
| Vertical Rotation | 130° |
