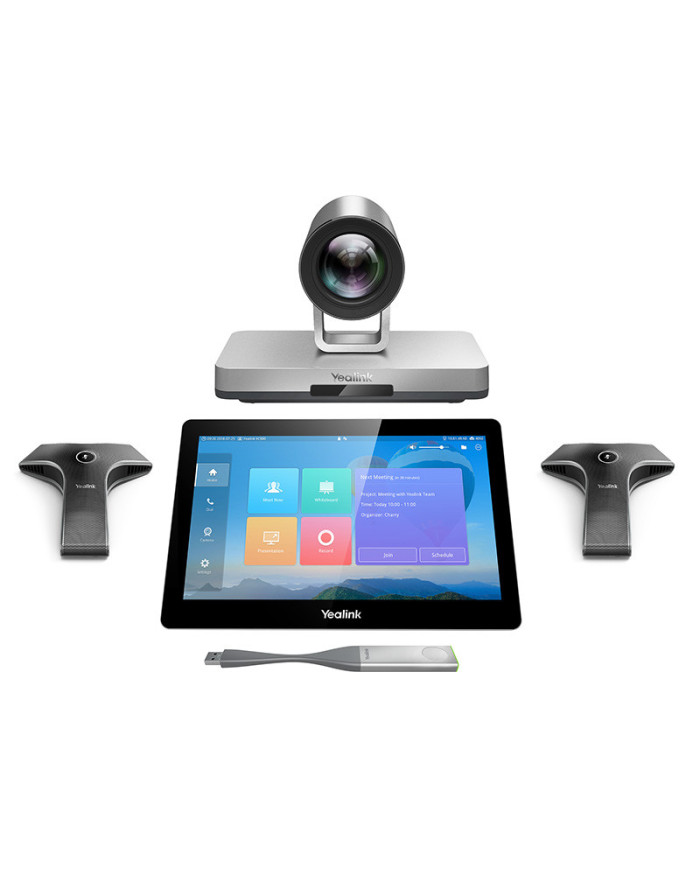

Yealink VC800-CTP-WP Video Conferencing System with Touch Panel
A next-generation, all-in-one full-HD video conferencing solution designed for mid-to-large meeting rooms. Equipped with Yealink’s powerful embedded MCU, it supports multipoint conferencing for up to 24 sites and can be split into two virtual meeting rooms, delivering crystal-clear video, rich audio features, and seamless collaboration via its intuitive touch panel.
Description
- Full-HD PTZ Camera: 1920×1080 resolution @ 60 fps with 12× optical zoom for detailed imaging.
- Wide Field of View: Horizontal 70° and vertical 42° coverage to capture the entire room.
- Flexible Camera Movement: Pan range ±100° and tilt range ±30° for optimal framing.
- CTP20 Collaboration Touch Panel: 13.3-inch IPS FHD 1080P capacitive touchscreen for meeting control.
- Stylus Support: Active pressure-sensitive touch pen for annotations and whiteboarding.
- Built-in MCU: Native multipoint capacity up to 24 sites at 1080p30, with licensing options for 8/16/24 connections.
- Virtual Meeting Rooms: Split conferences into two independent sessions for flexible scheduling.
- Advanced Video Codecs: H.265/HEVC, H.264 High Profile, H.264, H.263 for efficient bandwidth use.
- Codecs: Opus (8–48 kHz), G.722.1C (14 kHz), G.722.1 (7 kHz), G.711 (PCMA/PCMU), G.729, ARES
- Technologies: Acoustic Echo Cancellation, Automatic Gain Control, Yealink Noise Proof Technology, CNG, PLC, AJB, De-Reverb
- Network Resilience: Dynamic bandwidth adaptation, Forward Error Correction (FEC), and recovery from up to 30% packet loss.
- Dual HDMI & Content Inputs: Two HDMI outputs plus HDMI + Mini-DP for sharing presentations or other content.
- Protocol Support: Dual-stack H.323 and SIP interoperability with mixed-vendor environments.
- USB Recording: HD video recording direct to USB flash drives for archiving meetings.
- Complete Bundle: Includes VC800 codec with integrated camera, CTP20 touch panel, 2× VCM34 microphone arrays, VCR11 remote control, plus optional WPP20 wireless presentation pod.
New
Data sheet
| Dimensions | 235 mm x 172 mm x 169 mm |
|---|---|
| Display | 13.3″ IPS FHD (1080 p) capacitive touchscreen; stylus-supported |
| Field of view | Horizontal 70°, Vertical 42° |
| Mounting | • Wall/TV mounted shelf with screws |
| Operating humidity | 10~95% |
| Operating temperature | 0~40°C |
| Optical Zoom | 12× |
| Power Consumption | Idle＜16W, normal operating: 17W; MAX: 21W |
| Resolution | Up to 1080 p @ 60 fps |
| Video Codecs | H.265/HEVC, H.264 High Profile, H.264, H.263 |
| Voice and Fax Codecs | Opus (8–48 kHz), G.722.1C/1, G.711, G.729, ARES |
| Weight | 6.6 kg |
| Power Supply | PoE + (IEEE 802.3at) or external PSU (100–240 V AC, 34 W) |
| Storage Temperature | -30~70°C |
| Pan and Tilt | Pan ± 100°, Tilt ± 30° |
