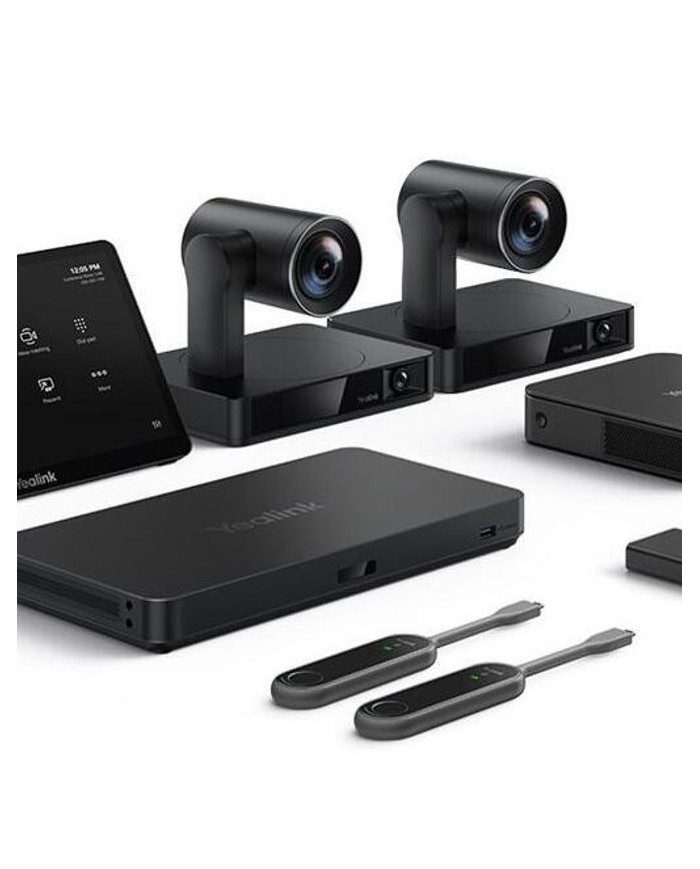

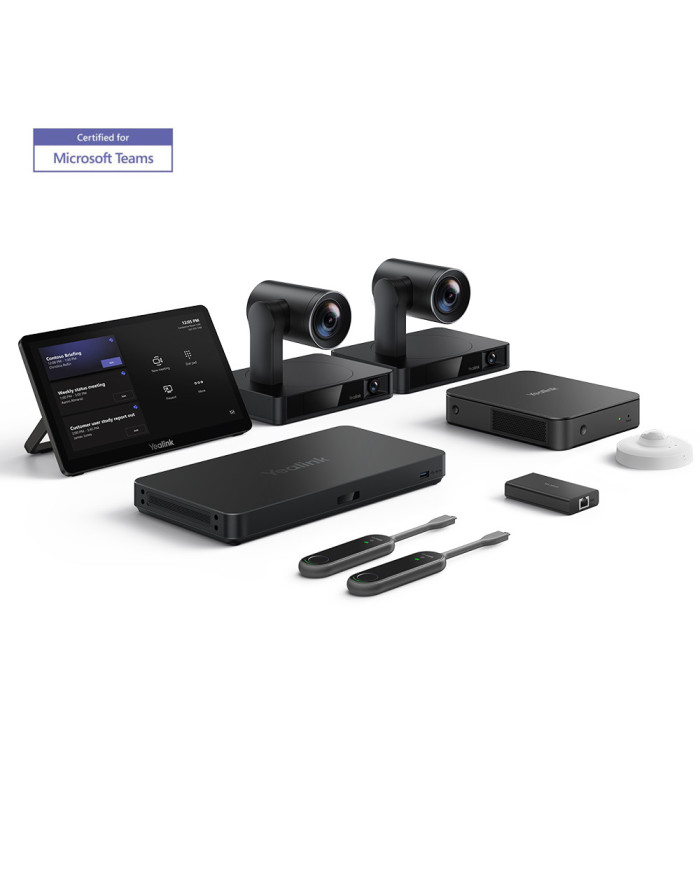

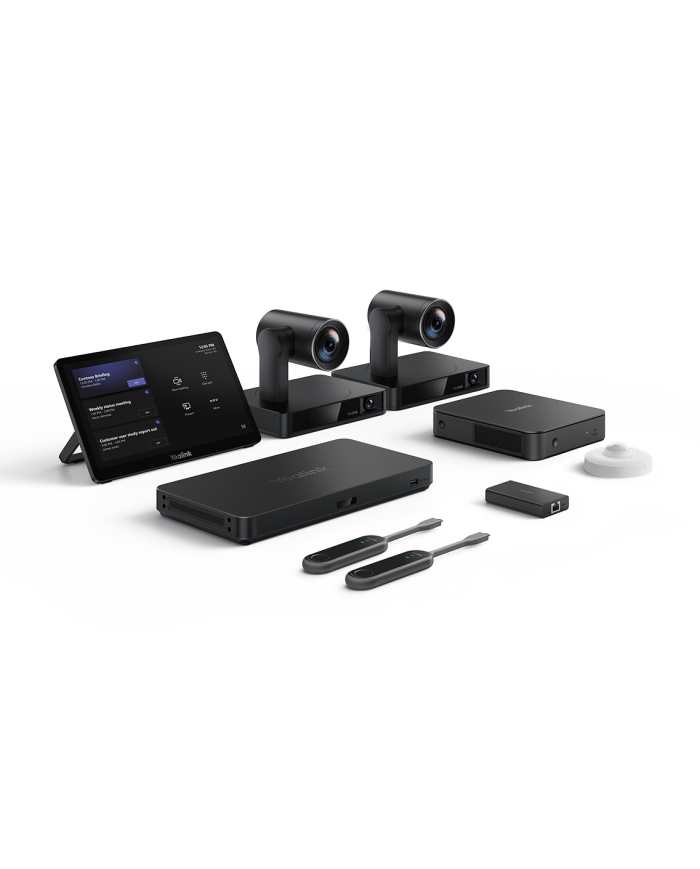

Yealink MVC S90-C5-007 Gen 3 Native Microsoft Teams Rooms System for ProAV rooms
A premium, AI-powered video conferencing bundle designed for extra-large ProAV environments, featuring dual 4K PTZ cameras, a powerful mini-PC, touch control, AV processing, wireless and BYOD sharing. Ideal for spacious boardrooms and lecture halls.
Description:

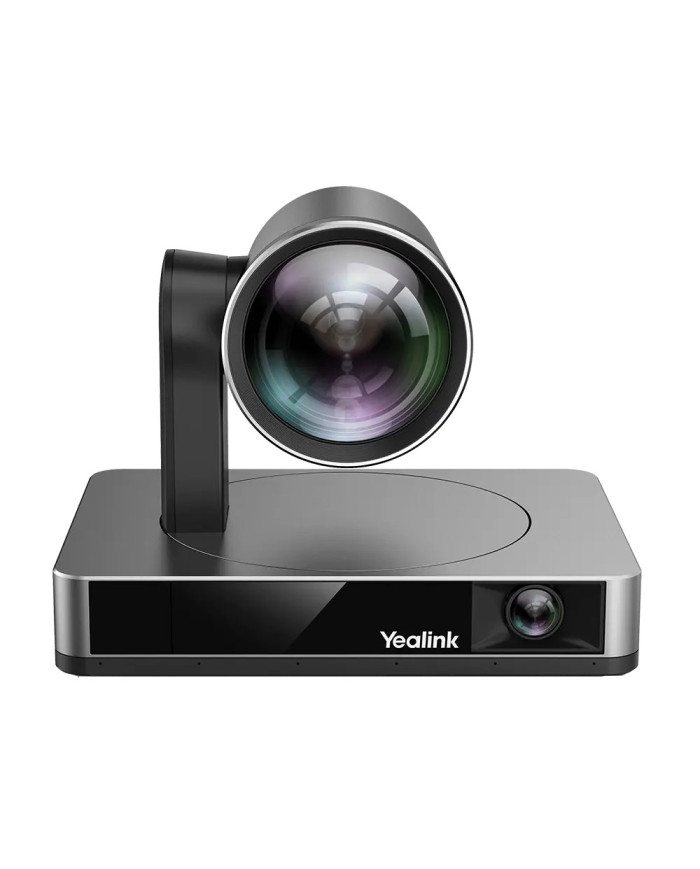

- Dual UVC86 intelligent 4K PTZ cameras (Pan‑Tilt‑Zoom) with 12× optical and 1.7× digital zoom, auto‑framing, speaker & presenter tracking, gesture control, multi‑focus, picture‑in‑picture, 9 presets
- MCore 4 (MCore Pro) mini‑PC with Intel Core Ultra 5 and integrated NPU (≈34 TOPS) for AI processing; includes 16 GB DDR5 and 256 GB SSD
- MTouch Plus 11.6″ narrow‑bezel IPS touch controller (1920×1080) supporting multiple panels and angled deployment; wired & wireless content sharing
- AVHub multi-camera audio/video processor enables layout adjustment, multi-camera Intelliframe, supports up to 9 cameras in sync
- MVC‑BYOD Extender USB adapter provides easy BYOD integration to share audio/video via HDMI/USB
- Two WPP30 wireless presentation pods for seamless wireless content sharing
- Windows 11 IoT Enterprise OS with Teams Rooms app pre-loaded; includes 2-year hardware license & warranty
- AI-driven multi‑camera IntelliFrame & Director modes: auto-track active speakers, sync multi-camera views, showcase up to 4 speaker streams with name tags via Microsoft Copilot integration
- RoomSensor module measures occupancy, temperature, humidity, and light via Bluetooth BLE 5.2 (up to 30 m)
- Expandable ProAV design supports third-party audio (Biamp, Nureva, Shure, Yamaha), ceiling/table mics, soundbars, and DSPs
- Multiple HDMI outputs (3× HDMI + 1× HDMI‑in), CEC supported, built‑in EDID for seamless AV integration
- Network & USB: wired (1×GBE RJ‑45) + Wi‑Fi 6 & Bluetooth 5.2 + 4× USB 3.0 ports + MTouch RJ‑45
- Security & manageability: TPM 2.0, enterprise-grade Windows, Teams security, remote device management via RoomConnect or platform
- Flexible deployment: modular bundle – can add cameras, consoles, audio accessories; cables, brackets, and power supplies included
- Tailored for large/extralarge rooms (20–40 people): common in boardrooms & classrooms; supports multi-camera, large-space coverage
- Intuitive UI & control: gesture control, presenter region‑trigger, preset switching via MTouch, no manual camera panning
- Kit contents included: 2× UVC86 cameras, VCR20 remote, MCore Kit‑C5, AVHub, BYOD Extender, 2× WPP30, power adapters, wall brackets, cables
- Hardware dimensions & weight: whole kit ≈12.1 kg; MCore compact, MTouch slim, AVHub desktop-size
- Compliance & warranty: 2-year warranty; designed and certified for Microsoft Teams Rooms on Windows
New
Data sheet
| Display | • 11.6-inch narrow bezel IPS display |
|---|---|
| Memory | 16GB(2*8GB) DDR5 |
| Mounting | Support desktop placement, desktop fixed, wall-mounted deployment |
| Operating humidity | 10-95% |
| Operating temperature | 0-40℃ |
| Resolution | 1920 x 1080 video resolution |
| Storage size | 256GB SSD |
| Sensitivity | 4K sensor |
| BIOS feature | 3x HDMI video output -CEC -EDID, TPM2.0 ,Kernel DMA |
| Package Content | MCore 4 ,MTouch Plus , RoomSensor , UVC86*2 , AVHub , BYOD-Extender |
| Preload | Windows 11 IoT Enterprise X64 , Windows 11 IoT Enterprise License , Microsoft Teams Rooms App ,Yealink RoomConnect |
| Detection Angle | 120° |
| Adjustable Detection Angle | ±20° |
| Camera Zoom | 20.4 × HD zoom (12x optical, 1.7x digital) |
| Horizontal Rotation | 200° |
| Vertical Rotation | 130° |
