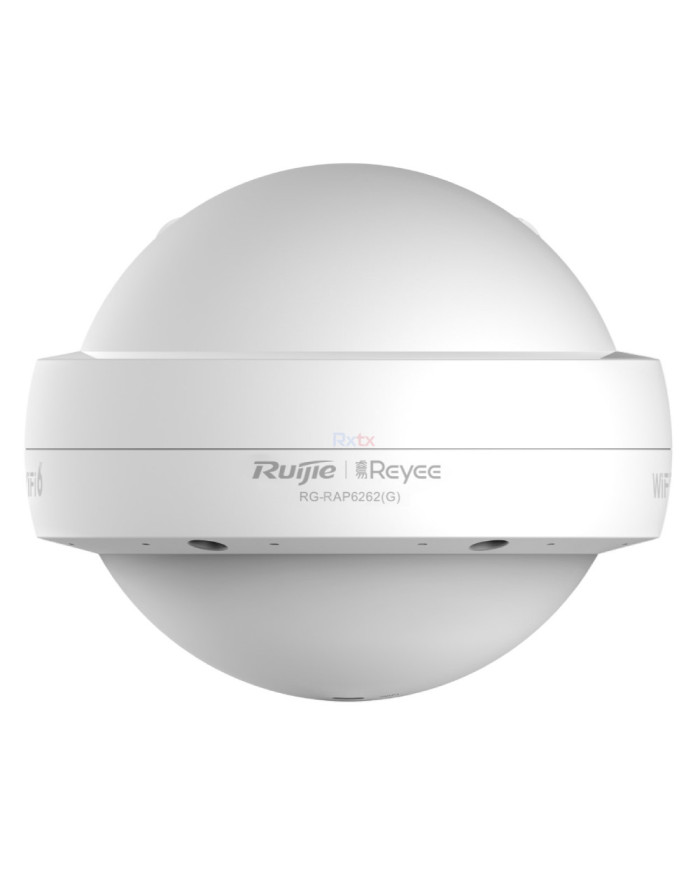

Ruijie RG-RAP6262(G) Wi-Fi 6 AX1800 Outdoor Omni-directional Access Point
The Ruijie RG‑RAP6262(G) is a rugged, high‑performance Wi‑Fi 6 outdoor access point with a distinctive "UFO" design. Featuring AX1800 dual‑band MU‑MIMO, IP68-rated sealing, and built-in omnidirectional antennas, it's engineered for extensive outdoor deployment—from campuses to parks and industrial sites. It supports Reyee Mesh, PoE or DC power, and remote/cloud management—making it ideal for reliable, large‑area wireless connectivity
Description:
- Wi‑Fi 6 (802.11ax) with AX1800 throughput (~1775 Mbps: 574 Mbps @ 2.4 GHz + 1201 Mbps @ 5 GHz)
- Dual‑band 2×2 MU‑MIMO for high‑efficiency simultaneous device handling
- Omnidirectional antennas (4 built‑in): ~100 m @ 2.4 GHz, ~300 m @ 5 GHz coverage
- Robust “UFO” housing fully sealed, dustproof, moisture-resistant, flame-retardant
- IP68 rating + 4 kV lightning, wind erosion protection, operates –30°C to +65°C
- Rack-separated mounting for easier ceiling or pole installation
- Dual power supply: PoE (802.3at) + 12 V DC for redundancy
- Two Gigabit Ethernet ports + 1 SFP option (on RG‑RAP6262 variant) for uplink, PoE pass-through, or fiber backhaul
- Supports Reyee Mesh networking—add APs without cabling
- Remote/cloud management, app/web UI, auto RF optimization & captive portal
- Max 512 clients, recommended ~110 for optimal performance
- OFDMA & 1024-QAM + optional 160 MHz channel deliver up to 2.976 Gbps on AX3000 variant
- Seamless roaming for uninterrupted outdoor connectivity
- Advanced security: WPA2-PSK, WPA3-SAE, 802.1X, AES/TKIP encryption
New
Data sheet
| Dimensions | 200 mm ×220 mm ×166 mm |
|---|---|
| Mounting | Wall Mount and Pole Mount |
| Operating temperature | –30°C to +65°C (–22°F to +149°F) |
| Power Consumption | Less than 18W |
| WiFi | 5GHz and 2.4 GHz |
| Weight | Less than or equal to 1.2 kg (2.65 lbs.) |
| Coverage Area | 300m for 5GHz and 100m for 2.4GHz |
| Max Throughput | 774Mbps |
| Modulation | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbp s, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 M bps |
| Storage Temperature | 40°C to +85°C (–40°F to +185°F) |
| Antenna Type | Omnidirectional |
