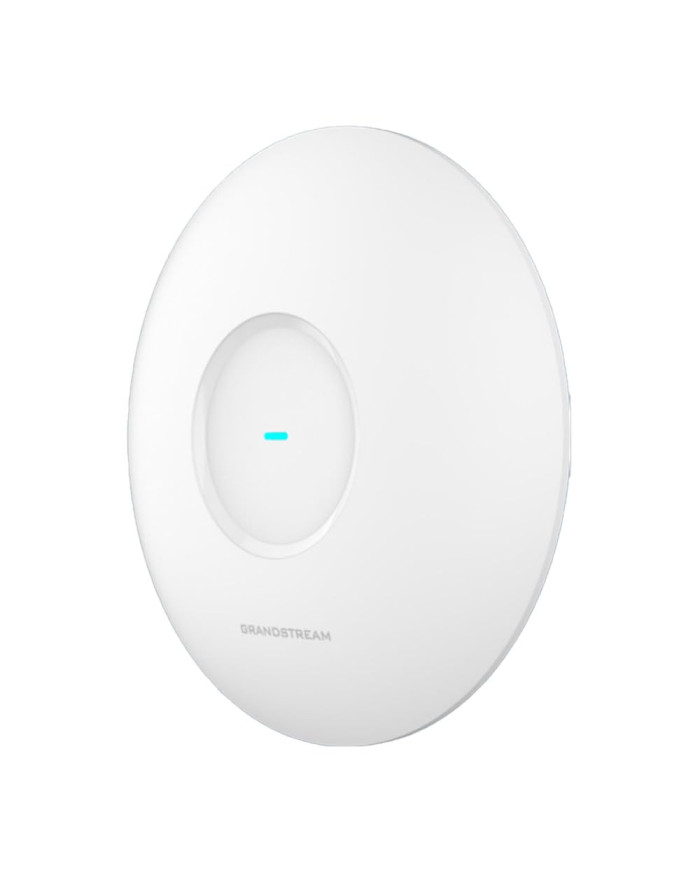

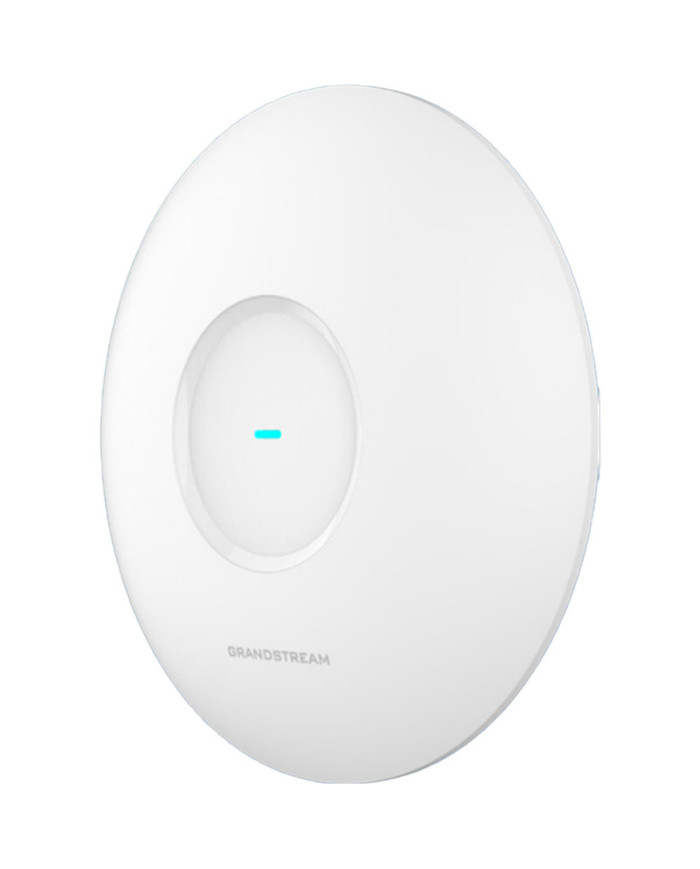

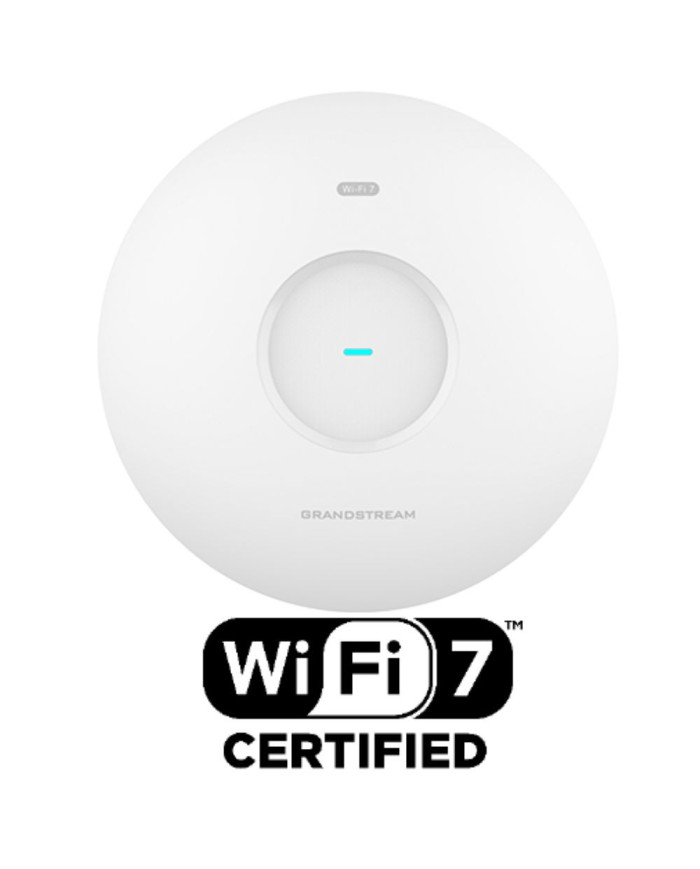

Grandstream GWN7670 Dual-Band 2x2:2 MIMO Wi-Fi 7 Indoor Access Point with DL/UL OFDMA Technology and PoE+ Support
The Grandstream GWN7670 is an enterprise-grade Wi‑Fi 7 (802.11be) indoor access point designed for small and medium-sized business environments. It delivers ultra-high performance with up to 3.6 Gbps wireless throughput and 5 Gbps wired capacity, powered efficiently over PoE+. It incorporates advanced technologies like DL/UL OFDMA, MLO, and 4 K QAM to support up to 256 users with low-latency, robust security, self-adaptive PoE, and flexible management through web UI, GDMS cloud, or GWN Manager.
Description
- Next-gen standard for ultra-high throughput and low latency
- Both 2.4 GHz and 5 GHz for reliable dual-band coverage
- Efficient spectrum use, enhanced in congested environments
- Higher modulation density for superior throughput
- 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) = ~3.6 Gbps total
- Supports one WAN and one LAN with PoE+ (802.3at)
- Automatically adjusts power based on the switch/power source
- Ideal for open office layouts and medium-range coverage
- Great for dense usage environments
- Bluetooth Low Energy support for location services and IoT endpoints Ensures low-latency experience for VoWiFi, video, and gaming
- Secure firmware, with unique certs and passwords per device
New
Data sheet
| Antenna gain | 5 single frequency antennas 2.4GHz x 2, gain 3.5dBi 5GHz x 2, gain 5.5dBi BT gain 3.5dBi |
|---|---|
| Bluetooth | BLE 5.3 |
| Concurrent Clients | 256 |
| Coverage Range | Up to 175 meters *coverage range can vary based on environment |
| Dimensions | 185mmx185mmx44.5mm |

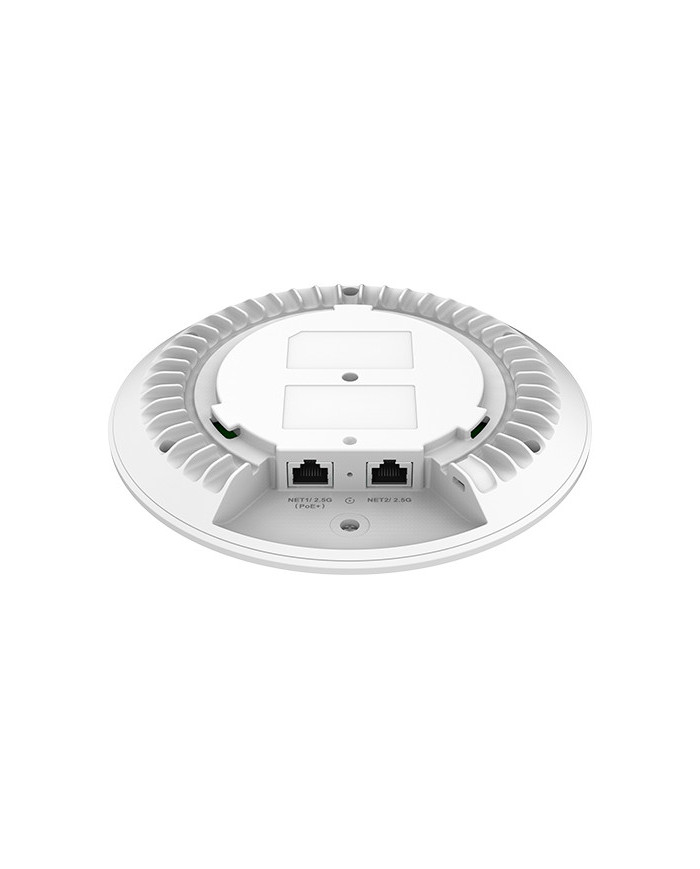

| Interface | 2x 2.5G Ethernet WAN/LAN |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| Operating humidity | 10% to 90% Non-condensing |
| Operating temperature | 0°Cto 45°C |
| QoS | 802.11e/WMM, VLAN, TOS |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency Range | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions |
| Weight | 527g |
| Maximum Transmit Power | 5G: 26dBm 2.4G: 26dBm *Maximum power varies by country, frequency band and MCS rate |
| Storage Temperature | -30°C to 60°C |
