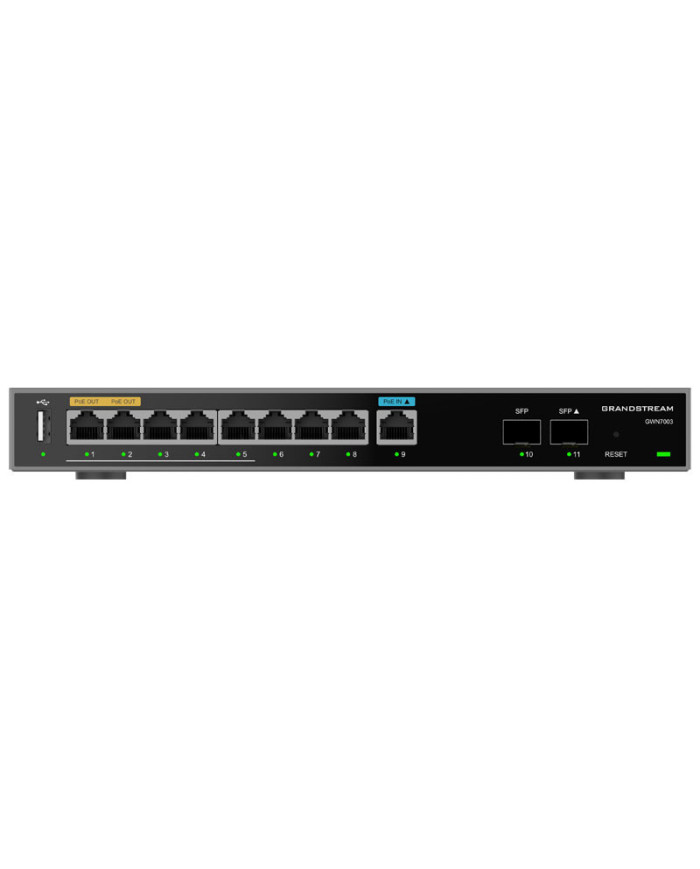

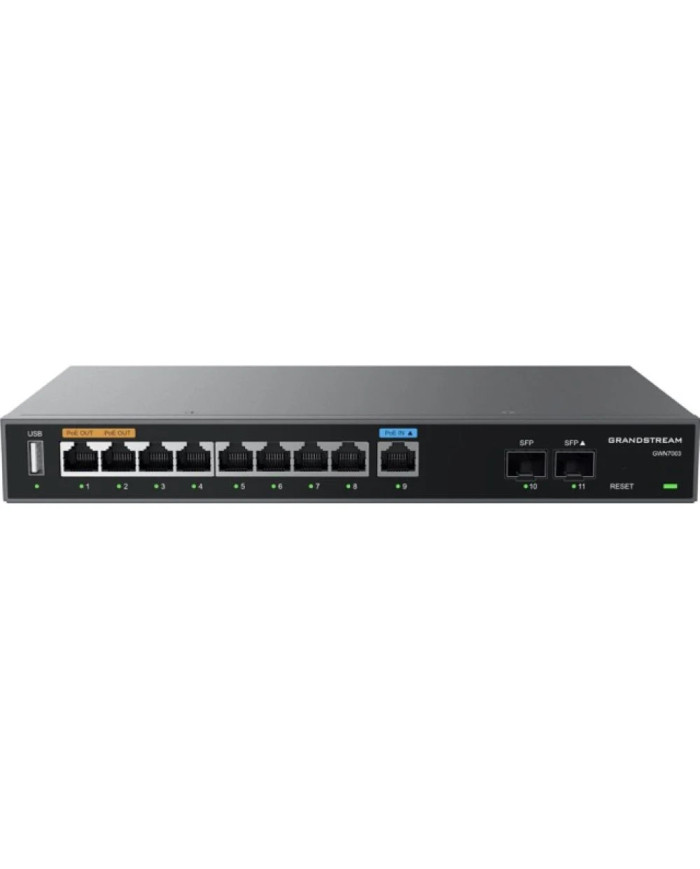

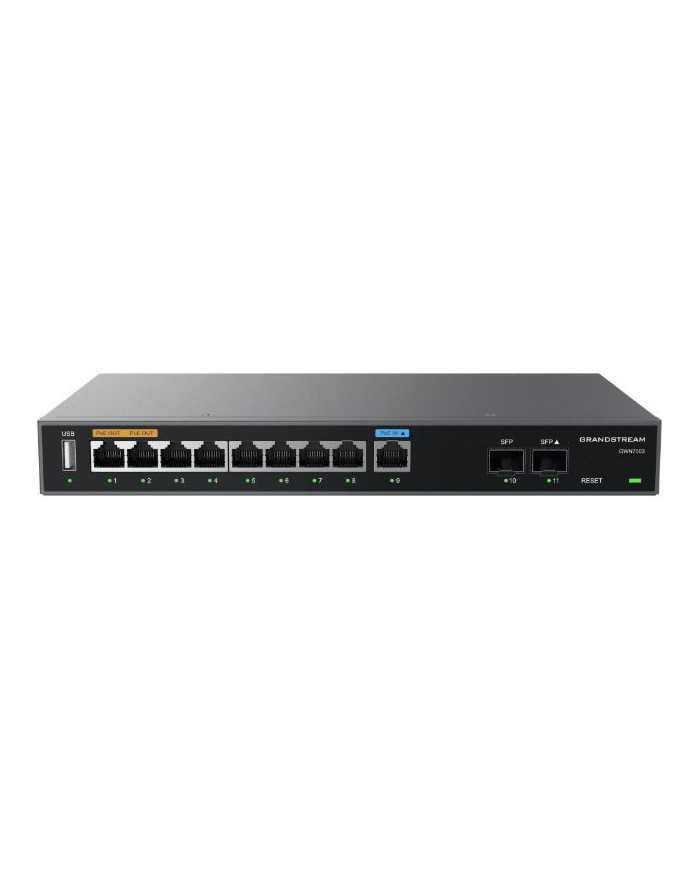

Grandstream GWN7003 Multi-WAN Gigabit VPN Router
A high-performance Multi-WAN Gigabit VPN router made specifically for enterprises is the Grandstream GWN7003. It provides powerful traffic management, variable port configurations, multi-WAN connectivity, and strong security with integrated VPN and firewall. The device is appropriate for small and medium-sized businesses, retail, education, hospitality, healthcare, and other industries, and it can manage wired networks and Grandstream Wi-Fi access points using cloud or local controllers.
Description:
- 9 × Gigabit Ethernet ports (WAN/LAN configurable).
- 2 × 2.5 Gigabit SFP ports for fiber connectivity.
- All Ethernet/SFP ports are WAN/LAN configurable.
- Dual ARM Cortex-A53 1GHz CPU for high throughput performance.
- 2.2 Gbps NAT routing throughput for fast data handling.
- 530 Mbps IPsec VPN throughput (secure encrypted connectivity).
- Supports up to 100 concurrent VPN tunnels.
- Supports multiple WAN load balancing and failover for reliability.
- Built-in firewall features including DDNS, DMZ, NAT, ALG, and traffic rules.
- Anti-DDoS and attack prevention support.
- Deep Packet Inspection (DPI) for protocol and application monitoring.
- Content filtering (URL, DNS, app filtering) to block unsafe content.
- Advanced QoS controls for traffic prioritization (VoIP, apps).
- VLAN and TOS support for network segmentation and priority.
- Embedded controller can manage itself and up to 150 Grandstream GWN Wi-Fi APs.
- Compatible with GWN.Cloud and GWN Manager for cloud or on-premises centralized management.
- Supports standard IP network protocols (IPv4, IPv6, 802.1Q, 802.1x).
- 1 × USB 2.0 port for storage or extended features.
- 13 status LEDs for port and device monitoring.
- Desktop, wall, or rack mountable (brackets included).
- Operating range 0–40°C; non-condensing humidity support
- Includes power supply, network cable, mounting hardware.
- 512 MB RAM and 256 MB flash memory with ~60K NAT sessions.
Data sheet
| CPU | Dual ARM Cortex A53 1GHz |
|---|---|
| Dimensions | 260mm(L)x149.35mm(W)*35mm(H); |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG, TURN Service |
| Interface | 2x 2.5 Gigabit SFP ports and 9x Gigabit Ethernet ports *All ports support WAN/LAN configurable |
| Memory | 512MB RAM |
| Mounting | Desktop, wall-Mount or rack-mount (rack-mount brackets included) |
| Operating temperature | 0°C to 40°C |
| PoE | Yes,Available |
| VPN Support | Up to 100 Tunnels |
| Weight | 1096g |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Flash Memory | 256MB Flash |
| Storage Temperature | -30°C to 60°C |
