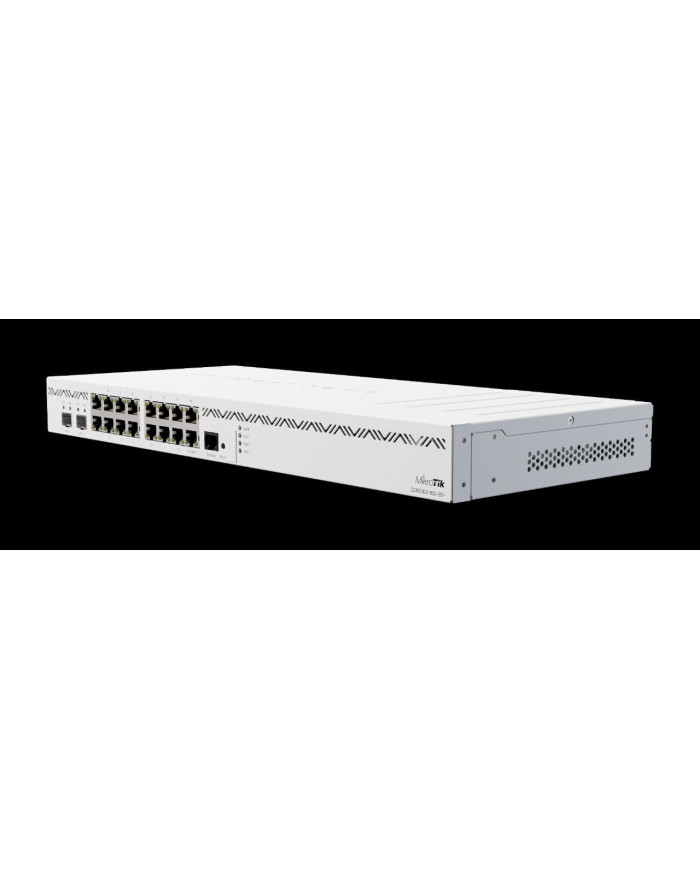

Mikrotik CCR2004-16G-2S+PC Ethernet Router 16x Gigabit Ethernet Ports, 2x10G SFP+ Cages
The Mikrotik CCR2004-16G-2S+PC Ethernet Router is a quiet yet powerful networking device ideal for businesses, studios, and homelabs. Featuring a quad-core Amazon Annapurna Labs Alpine v2 processor, 16 Gigabit Ethernet ports, and 2 high-speed 10G SFP+ ports, it delivers excellent performance, fast connectivity, and reliable value.
This new router is equipped with a total of 18 wired connections. This includes sixteen Gigabit Ethernet ports and two 10G SFP+ cages, plus a front-panel RJ-45 console port. Housed in the standard white 1U rackmount case typical of all CCR devices, it features integrated dual redundant power supplies for greater reliability and active cooling to maintain optimal operating temperatures.
Internally, the eight-port groups of Gigabit Ethernet are each managed by a dedicated Marvell Amethyst family switch-chip. Every one of these chips is linked to the CPU by an independent 10 Gbps full-duplex connection, a configuration also used for each SFP+ cage. The hardware includes 4GB of DDR4 RAM and 128MB of NAND storage. This design ensures there are no bottlenecks; provided the CPU can manage the processing load, every port is capable of operating at its maximum wire speed. The processor itself is a high-performance unit built for heavy workloads.
A typical deployment for this device would use the Gigabit Ethernet ports for the internal local area network and the SFP+ ports for network uplinks or downlinks. This makes it an ideal, consolidated networking solution for small and medium-sized businesses, offering both simplicity and high efficiency.
Technical Description
Details
Product code:CCR2004-16G-2S+
Architecture:ARM 64bit
CPU:AL32400
CPU core count:4
CPU nominal frequency:1700 MHz
Dimensions:443 x 210 x 44 mm
RouterOS license:6
Operating System:RouterOS (v7 only)
Size of RAM:4 GB
Storage size:128 MB
Storage type:NAND
MTBF:Approximately 200'000 hours at 25C
Tested ambient temperature:-20°C to 60°C
IPsec hardware acceleration:Yes
Powering
Number of AC inputs:2
AC input range:100-240
Frequency(Hz): 50-60
Max power consumption:48 W
Max power consumption without attachments:35 W
Cooling type:2 fans
Ethernet
10/100/1000 Ethernet ports:16
Fiber
SFP+ports: 2
Peripherals
Serial console port:RJ45
Number of USB ports:1
USB Power Reset:Yes
USB slot type:USB 3.0 type A
Max USB current(A): 0.9
Other
CPU temperature monitor:Yes
PCB temperature monitor:Yes
Voltage Monitor:Yes
Certification & Approvals
Certification:CE, EAC, RHOS
IP:IP20
