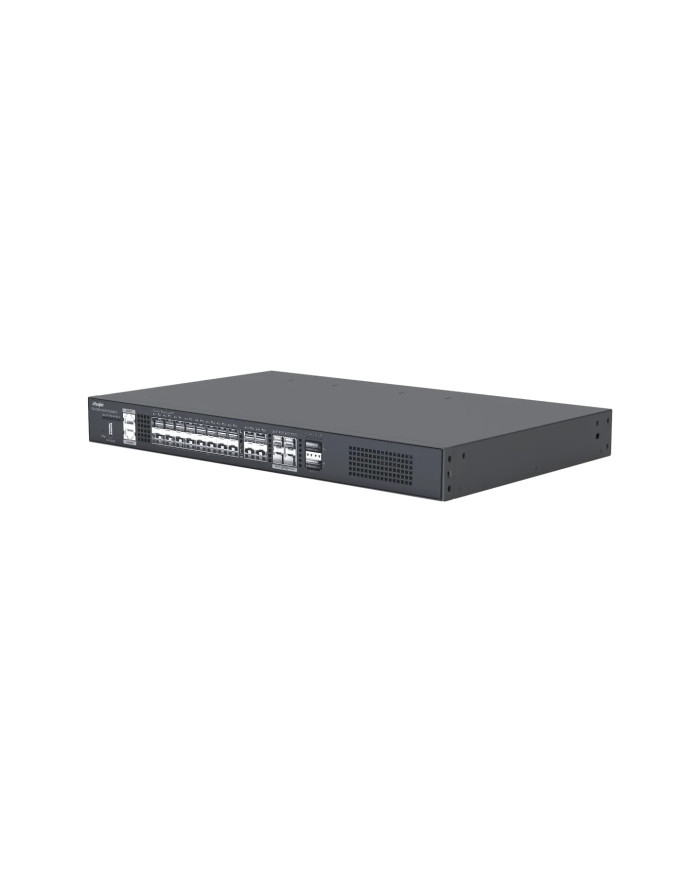

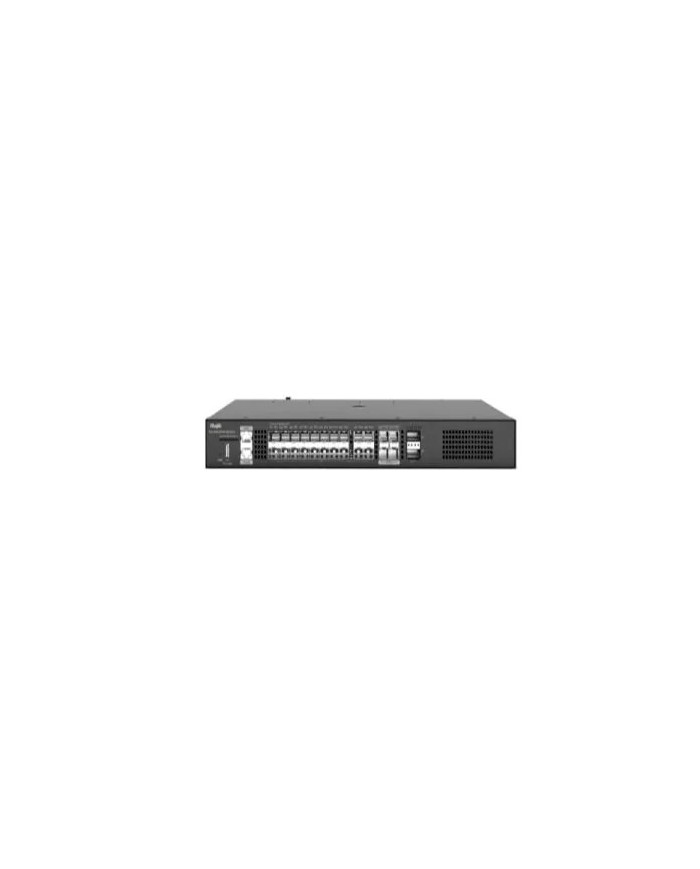

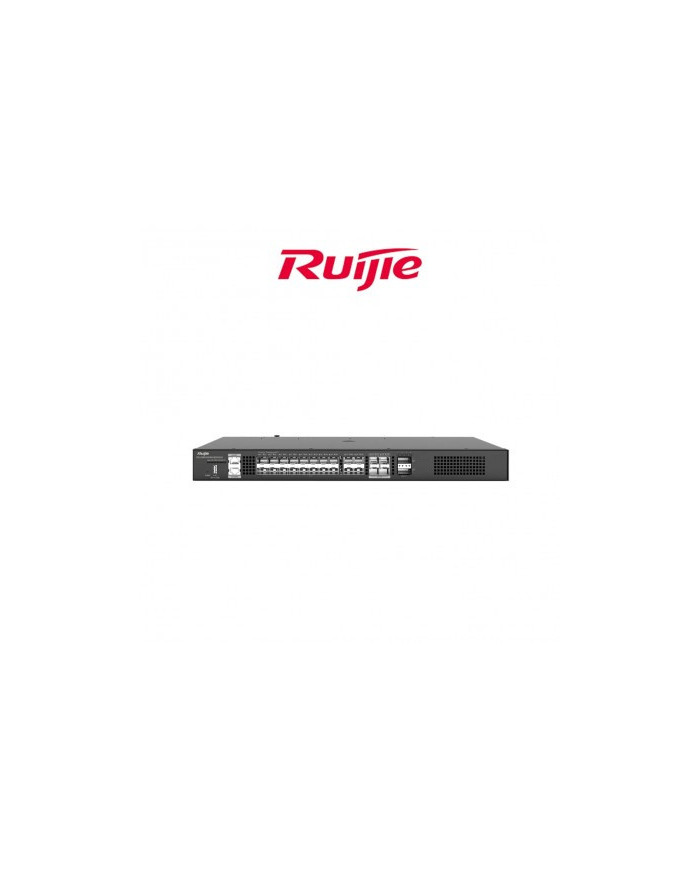

Ruijie RG-CS86-20XS4VS2QXS-D 20-Port 10GE Layer 3 Ruijie Cloud-Managed Core/Aggregation Switch
Rs801,625
Tax excluded
Ruijie RG-CS86-20XS4VS2QXS-D is a high-performance Layer 3 core/aggregation switch with 20×10GE SFP+ ports, 4×25GE SFP28 ports, and 2×40GE QSFP+ uplinks, designed for enterprise and campus networks. It supports Ruijie Cloud management, flexible protocols, and robust security for scalable backbone deployments.
Description:

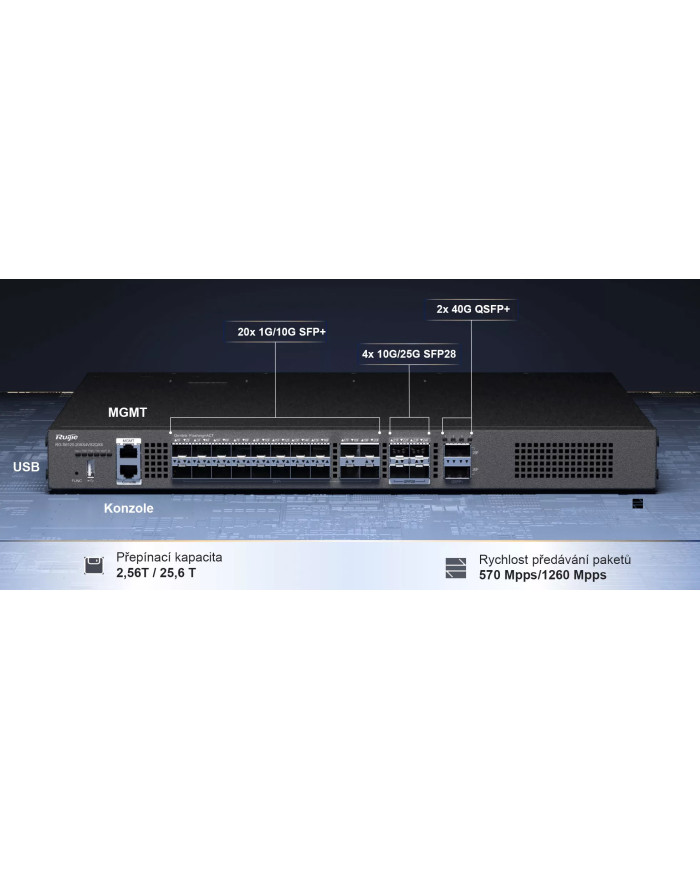

- 20 × 1/2.5/10 GbE SFP+ ports for versatile high-speed access.
- 4 × 10/25 GbE SFP28 ports for flexible 25G or 10G uplinks.
- 2 × 40 GbE QSFP+ uplink ports for high-bandwidth aggregation.
- Layer 3 routing support including static, RIP/RIPng, OSPFv2/OSPFv3, IS-IS and BGP4/BGP4+.
- VSU Virtual Switch Unit for device virtualization and simplified network scaling.
- Ruijie Cloud-managed with SON and zero-touch provisioning features.
- Comprehensive QoS policies for traffic prioritization and congestion control.
- Robust network security including CPP, NFPP CPU protection, ACLs and source guard.
- Support for VLAN types: 802.1Q (up to 4096), Voice VLAN, Private VLAN, QinQ, Super VLAN.
- Multicast & IGMP/MLD support with PIM variations for IPv4 and IPv6.
- High reliability with hot-swappable power modules and modular fans.
- Switching capacity ~760 Gbps with forwarding rate ~570 Mpps.
- MAC table size ~32,768 and ARP table ~16,000 entries.
- Flexible management via CLI, SNMP, RMON, Web/UI, Telnet, NETCONF, TR-069.
- Environmental specs: Operating 0–50 °C, 10–90 % humidity.
- 1 RU rackmount form factor (440 × 330 × 43.6 mm) and ~4.6 kg empty chassis.
- Supports IPv4 & IPv6 routing, multicast, ACLs, VRRP, BFD, STP/RSTP/MSTP.
New
Data sheet
| CPU | Single-core CPU, with a clock speed up to 1.25 GHz |
|---|---|
| Dimensions | 40 mm x 330 mm x 43.6 mm |
| MAC Address Table Size | 32,768 |
| Memory | 1 GB |
| Operating temperature | °C to 50°C |
| Packet Forwarding Rate | 570 Mpps |
| Power Consumption | 2 x pluggable power modules |
| Switching Capacity | 760 Gbps |
| Fan | 2 x pluggable fan modules |
| Weight | 4.6 Kg |
| Power Supply | 2 x pluggable power modules |
| Flash Memory | 1 GB |
| MTBF | 200,000 hours |
| Storage Temperature | 40°C to +70°C |
| Fixed Port | 20 x 1GE/2.5GE/10GE SFP+ ports4 x 10GE/25GE SFP28 ports 2 x 40GE QSFP+ ports |
| USB Connection | 1 x USB port |
