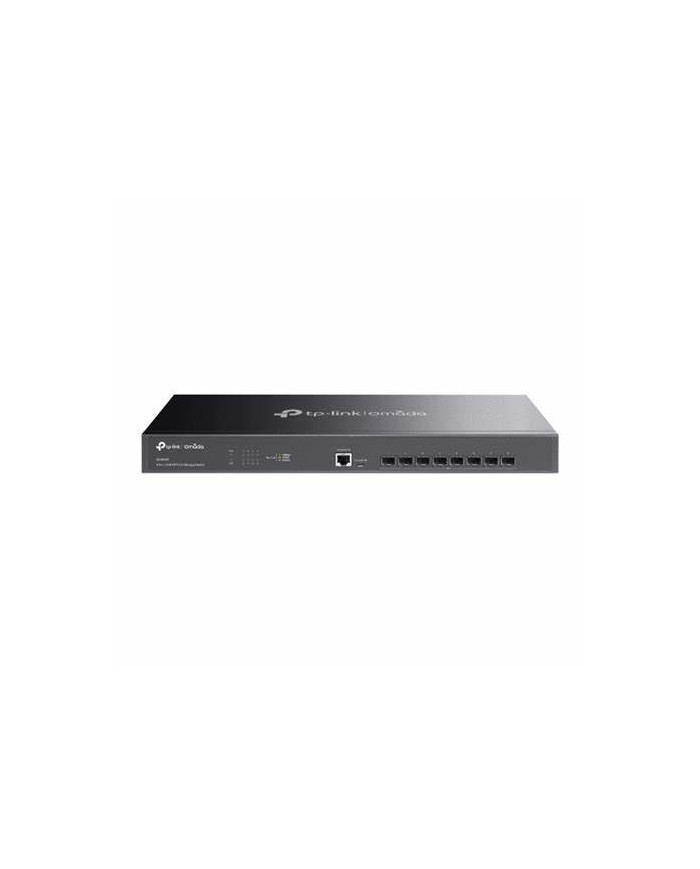

Omada TL-SX3008F JetStream 8-Port 10GE SFP+ L2+ Managed Switch
The TL-SX3008F is a fully managed 10G-only fiber switch (SFP+ ports) in the JetStream/Omada family. It’s targeted for high-capacity aggregation layers in enterprise/campus networks. It supports L2+ features (static routing, QoS, security, etc.), is part of TP-Link’s Omada SDN ecosystem, and is praised for its low power consumption and silent (fanless) operation in typical use cases.
Description:
- Ports: 8 × 10G SFP+ fiber ports (no copper)
- Console ports: 1 × RJ45 console + 1 × Micro-USB console interface
- Switching capacity: 160 Gbps non-blocking switching capacity
- Forwarding rate: ~119.04 Mpps (million packets per second)
- Management modes: Standalone (Web UI, CLI, SNMP, RMON) + integration with Omada SDN for centralized control
- L2 & L2+ features: VLAN (802.1Q), LACP (link aggregation), STP/RSTP/MSTP, IGMP snooping, port mirroring, OAM, DDM
- Static routing: Basic L3 support (static routes) for internal traffic segmentation
- Security / Hardening: IP-MAC-Port Binding (IMPB), ACLs, port security, DoS protection, storm control, DHCP snooping, 802.1X, RADIUS authentication
- Quality of Service (QoS): Supports L2 / L3 / L4 QoS for prioritizing voice, video, etc.
- Ring / protection features: ERPS (Ethernet Ring Protection Switching) for redundancy in ring topologies
- Fanless design: It operates silently due to its design (no active cooling / fan)
- Power consumption: Maximum ~15.46 W under nominal load

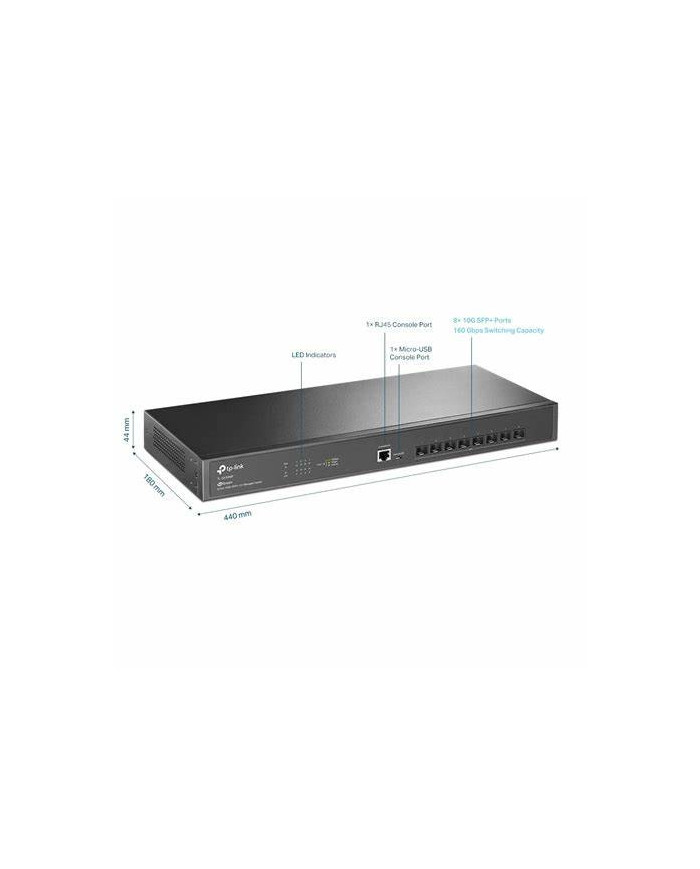

- Form factor / rack mount: Metal casing, 1U height, rack-mountable design (440 × 180 × 44 mm)
- Jumbo frame support: Up to 9 KB frames supported
- MAC address table size: 32K entries
- Backward compatibility: Works alongside gigabit products and supports legacy integration in mixed-speed environments
- Zero-Touch Provisioning (ZTP): Helps simplify deployment in Omada-managed setups
- Dual-image (redundant firmware image): Helps in safe upgrade and rollback in case of firmware failure
Data sheet
| Dimensions | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
|---|---|
| Interface | 8 10GE SFP+ Slots |
| MAC Address Table Size | 32K |
| Mounting | Rack Mountable |
| Operating humidity | 10% to 90% RH, non-condensing |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Packet Forwarding Rate | 119.04 Mpps |
| Power Consumption | 15.46 W (220 V/50 Hz) |
| Switching Capacity | 160 Gbps |
| DRAM | 256 MB |
| Fan | fanless |
| Console port type | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Power Supply | 100-240 V AC~50/60 Hz |
| Flash Memory | 32 MB |
| Buffer Size | 16 Mbit |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
