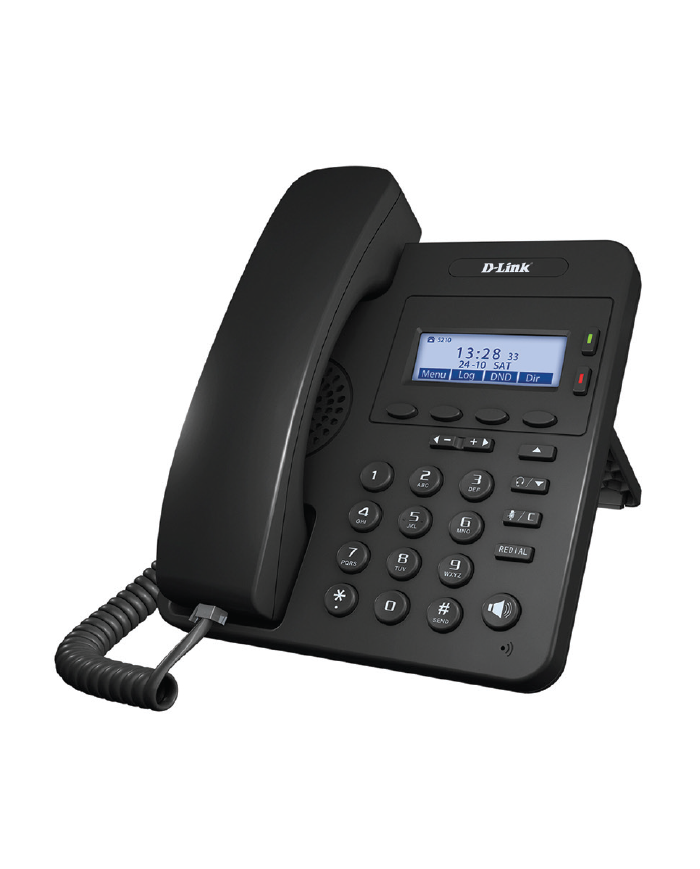

D-link DPH-115SE SIP IP Phone with 1 x 10/100Mbps PoE support, 1 SIP Line (without power adaptor)
The D-Link DPH-115SE is a compact SIP IP desk phone designed for small offices and VoIP environments. It supports one SIP account, includes a single-line LCD display, and offers PoE support (10/100 Mbps) plus a LAN passthrough port. VLAN, basic telephony features (call transfer, hold, mute, etc.), and web/phone configuration are supported. The unit is sold without a power adapter, assuming PoE deployment.
Description:
- Supports 1 SIP line/account
- 1 × 10/100 Mbps Ethernet port with PoE support
- 1 × 10/100 Mbps LAN (uplink / PC pass-through) port
- VLAN support (for voice/data separation)
- 1-line LCD display (for status, caller ID, menu)
- 25 physical keys including programmable keys
- 9 programmable keys (for speed dial / functions)
- 2 LEDs (e.g. account LED / MWI)
- RJ9 port for the handset
- Plastic housing with keypad, keys, handset cord included
- Wall-mounting kit included
- Configuration via keypad/LCD or web browser interface
- Standard telephony features: hold, mute, redial, call transfer, call forwarding, 3-way conferencing
- Ability for PC to connect through the phone (LAN pass-through)
- Echo cancellation, jitter buffer, etc., for improved voice quality
- Auto provisioning support (TFTP/HTTP/HTTPS)
- Multilanguage support (common interface languages)
- Directory / phonebook functionality
New
Data sheet
| CPU | DSPg |
|---|---|
| Dimensions | 180x157x33mm |
| Display | 128*64 graphic LCD with back light |
| Operating temperature | 0˚C to 40˚C |
| Power Consumption | Typical: 1.3 Watt (Standby) Max.: 4.3 Watt (Talking) |
| Power Supply | AC-DC Switching Power switching Input: 100~120, 220~240VAC Output: DC 5V / 1000mA Max. Watt: 5 Watt. IEEE802.3af POE Class 0 |
| WAN Port | RJ45 10/100M Ethernet port Compliant to following standards: IEEE 802.3/802.3u Support Full-Duplex operations |
| LAN Port | RJ45 10/100M Ethernet port Compliant to following standards: IEEE 802.3 Support Full-Duplex operations |
| Storage Temperature | -20˚C to 60˚C |
