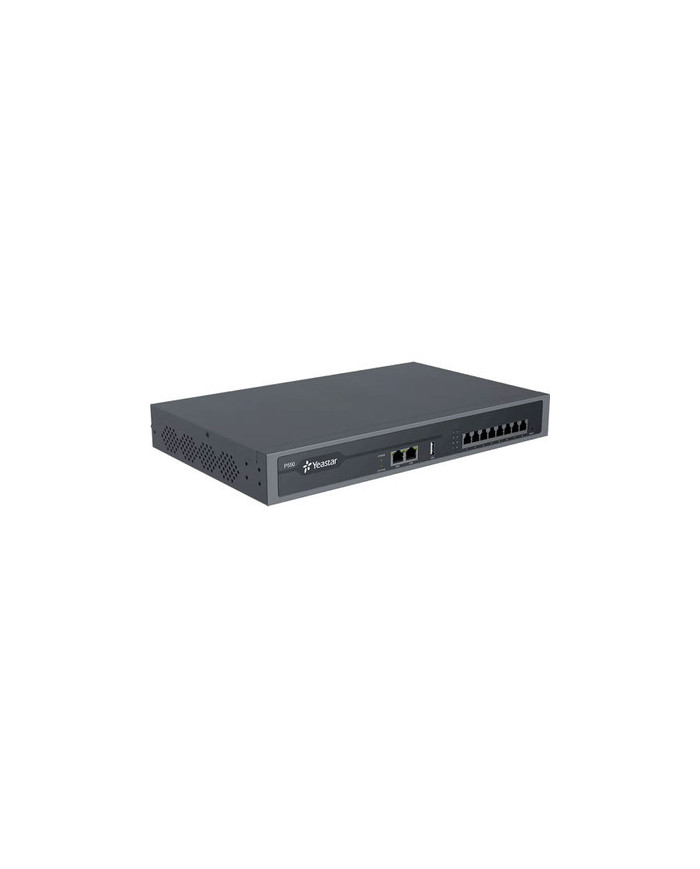

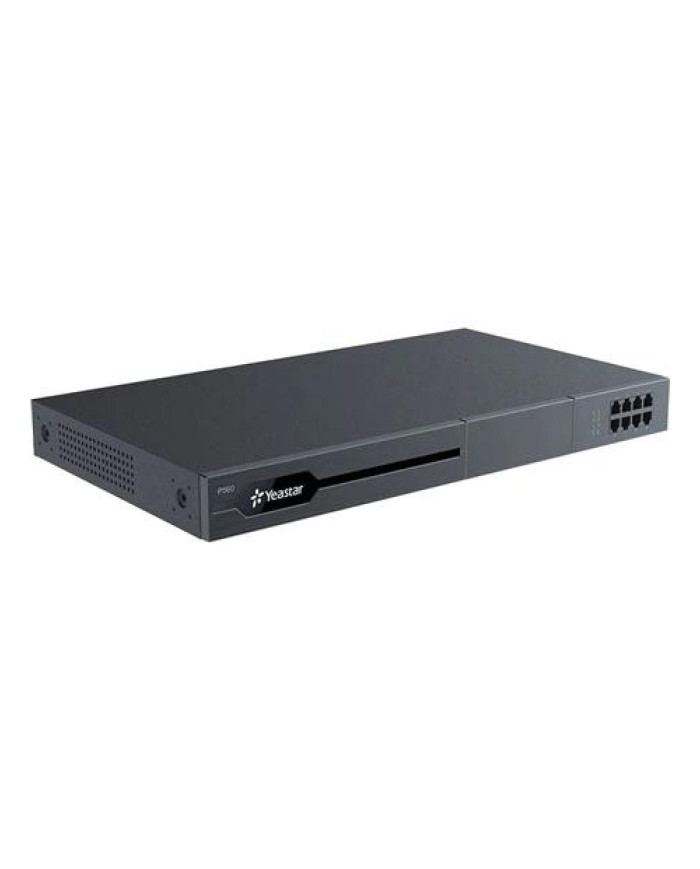

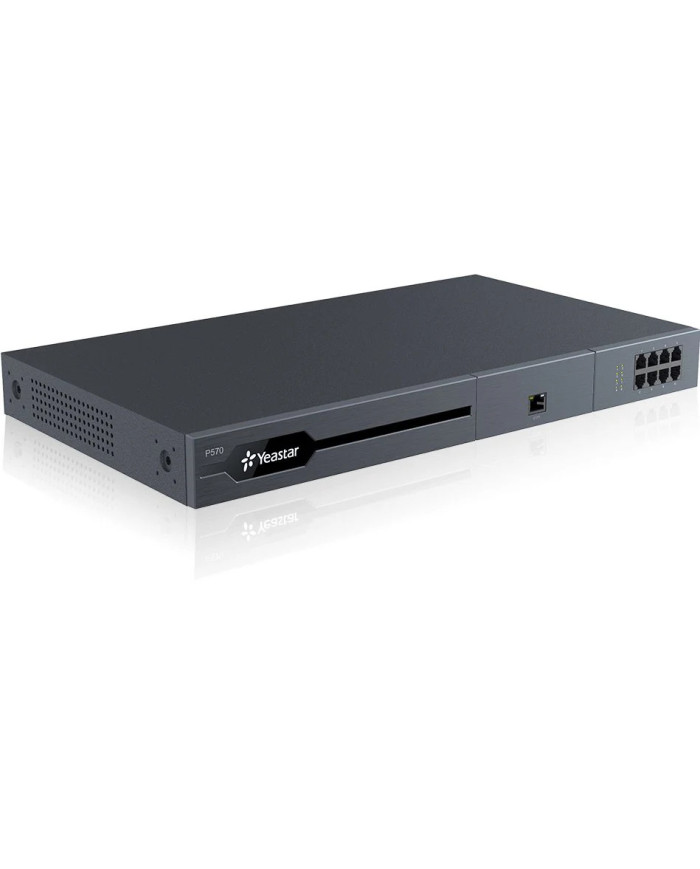

Yeastar P-Series P570 300-500 users concurrent calls 30-60 Call center agents 100-200 without FXO ports
The Yeastar P570 P‑Series IP PBX supports 300 base users, expandable to 500. It handles up to 60 concurrent calls (expandable to 120), and offers up to 16 FXO/BRI ports, making it ideal for high-volume call centers. With expansion modules, it also supports 6 cellular ports (GSM/3G/4G) and 2 E1/T1/J1 ports, plus rich unified communications, contact center capabilities, and remote management tools.
Description:
- User Capacity: 300 users base, scalable up to 500 users via expansion modules.
- Concurrent Calls: 60 simultaneous calls base, expandable to 120.
- Analog Interfaces: Supports up to 16 FXS ports for internal phones.
- PSTN Line Support (FXO/BRI): Up to 16 external lines.
- Cellular Ports: Up to 6 GSM/3G/4G ports using EX08/EX30 modules.
- E1/T1/J1 Support: Up to 2 digital trunk ports for high-capacity links.
- Expandable System: Supports 2 expansion boards (EX08/EX30) plus 2 D30 modules to add users/call capacity.
- Unified Communications (Linkus UC): Offers desktop, web & mobile applications for voice, messaging, presence, and conferencing.
- Advanced Call Center Features: Includes IVR, queues, wallboard, SLA, real-time operator panel, and reporting tools.
- Security & Protocols: Supports UDP, TCP, TLS, SRTP for secure voice connection and encryption.
- Voice & Video Codec Support: Voice codecs G.711, G.722, G.729A, GSM, Speex; video codecs H.264, MPEG4.
- Network Interfaces: Dual Gigabit Ethernet ports for WAN and LAN connectivity.
- Local Storage Options: Internal SATA HDD or external USB support up to 2 TB for recordings and logs.
- Hardware Features: 1U rackmount form factor, NFC tag for quick configuration setup
- Built-in AI Voicemail Transcription: Integrates Google Cloud speech recognition for voicemail-to-text.
- User Experience: Intuitive UI with granular user role permissions and minimal admin overhead.
- Full Feature Set Out of Box: Basic plan includes call logs, voicemail, IVR, recording, conferencing, BLF, fax-to-email, and more.
New
Data sheet
| Dimensions | 44 x 25.2 x 4.4 |
|---|---|
| DTMF | In-band, RFC4733, RFC2833, SIP INFO |
| External Storage | 1 USB (Up to 2TB) |
| FXO Ports | 16 |
| FXS Ports | 16 |
| Interface | 2 x (10/100/1000 Mbps) |
| Max Concurrent Calls | 60 / 120 |
| Mounting | 1U Rackmount |
| PRI Ports (T1/E1/J1) | 2 |
| Protocol | UDP, TCP, TLS, SRTP |
| Users | 300 / 500 |
| Video Codecs | H263, H263P, H264, MPEG4 |
| Voice and Fax Codecs | G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC |
| Weight | 2.38 KG |
| Power Supply | AC 100-240V 50/60HZ 1.5A max |
| Hard Disk Drive | 1 SATA (Up to 2TB) |
