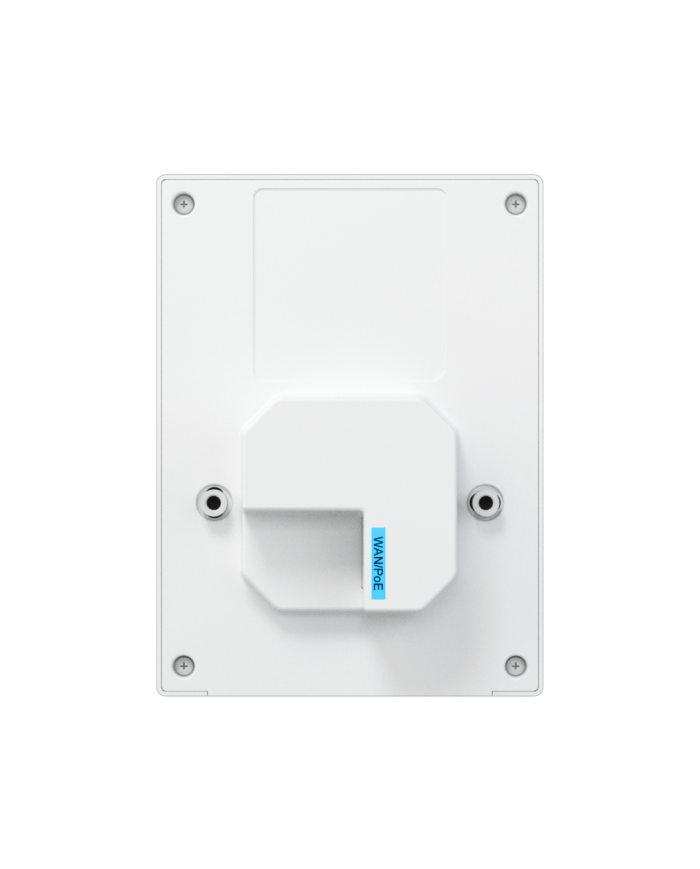

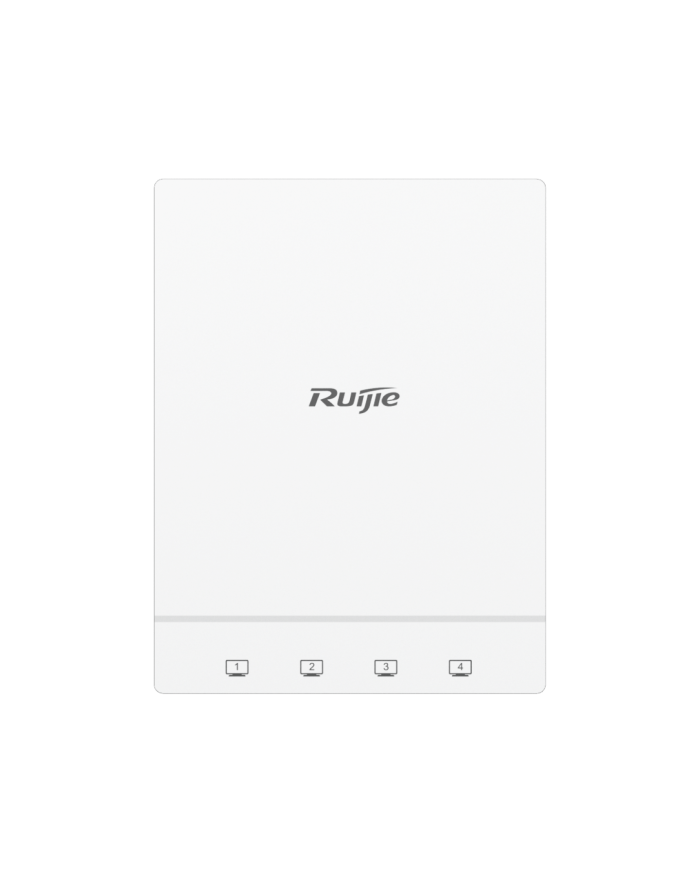

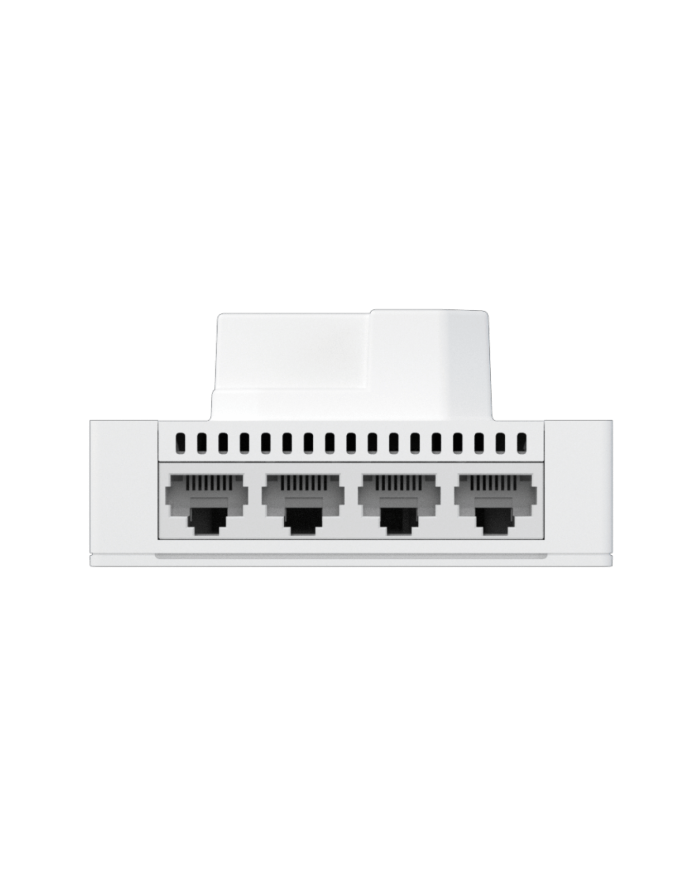

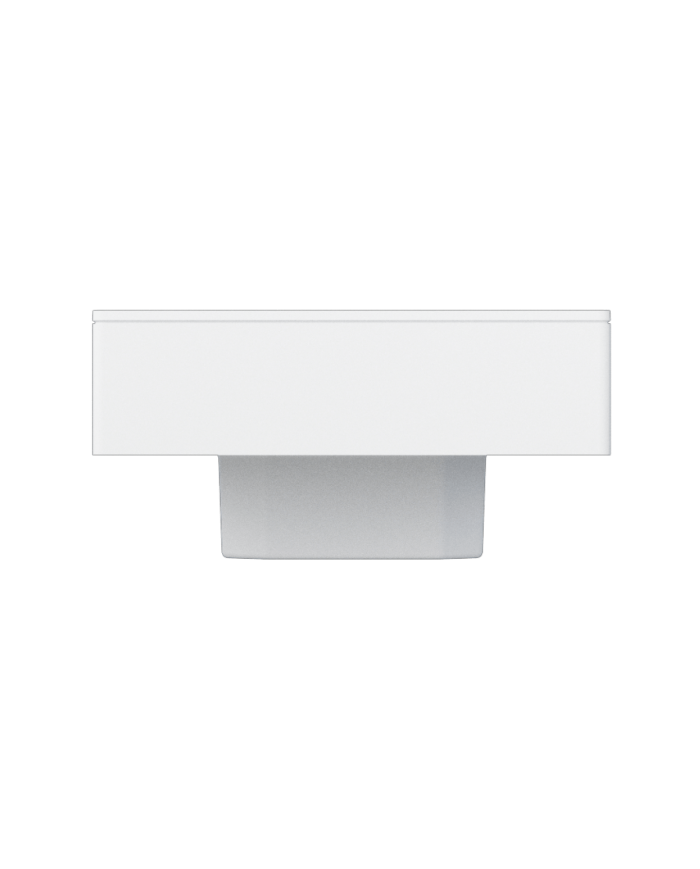

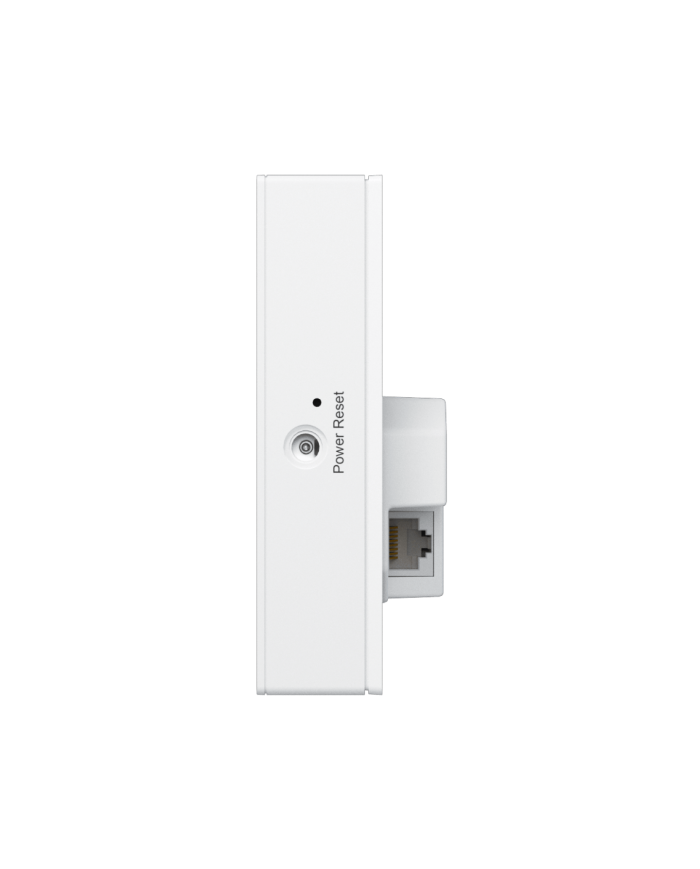

Ruijie RG-AP180-I Wall Plate Access Point, Wi-Fi 6, Dual Radio, 1775 Mbps
The Ruijie RG-AP180 is a dual-radio Wi-Fi 6 wall-plate access point designed for indoor environments such as education, government, finance, and enterprise offices. It supports multiple Wi-Fi standards including 802.11ax, 802.11ac Wave 1/2, and 802.11n, delivering wireless speeds of up to 1.775 Gbps. Its high-performance design ensures fast, stable connectivity while eliminating common network bottlenecks.
Key Highlights:
- Multi-service integration with an all-in-one design for office environments
- Ultra-fast Wi-Fi 6 speeds up to 1.775 Gbps
- Enterprise-grade authentication for stronger security
- Cloud-based management with intelligent optimization and easy network administration
New
Data sheet
| Bluetooth | Bluetooth 5.0 |
|---|---|
| Dimensions | In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.) Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.) |
| Mounting | Wall mount/ 86-mm and EU standard junction boxes |
| Operating temperature | –10°C to +50°C (14°F to +122°F) |
| Power Consumption | 10 W |
| Radio | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2) up to 4 spatial streams |
| Power Supply | 12 V DC/1 A power supply PoE/PoE+ (802.3af/at) |
| Antenna Type | Built-in intelligent antennas |
| DataRate | Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps |
