Huawei AP265E Wi-Fi 6 Wall Plate Access Point | AX3000 2.975Gbps Dual-Band | 1x GE Uplink + 4x GE Downlink Ports | Smart Antenna

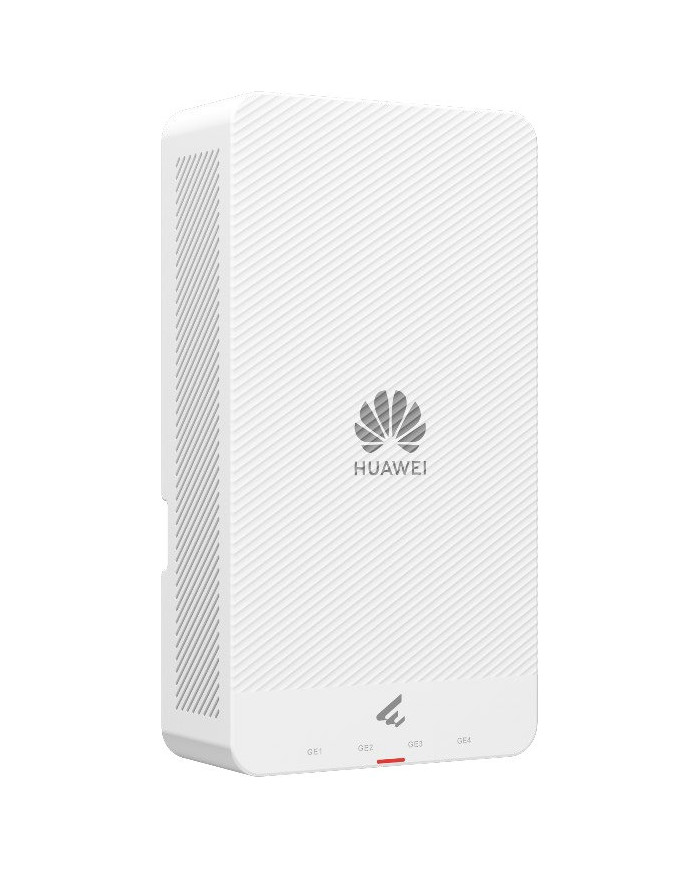

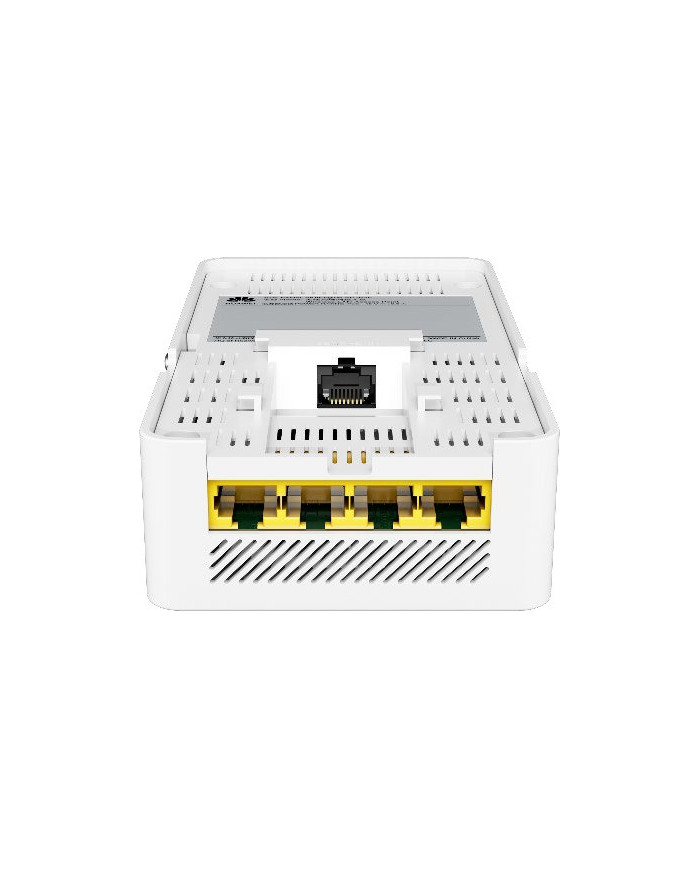

The Huawei eKitEngine AP265E is a slim indoor wall-plate access point built on the Wi-Fi 6 (802.11ax) standard. It supports dual-band wireless connectivity on the 2.4 GHz and 5 GHz bands with 2×2 MIMO, delivering a combined data rate of up to 2.975 Gbps. The device includes one Gigabit uplink port and four Gigabit downlink ports for connecting additional wired devices. Its compact design allows flexible installation on walls, ceilings, desks, or junction boxes, making it well suited for indoor environments such as hotels, hospitals, retail shops, and educational institutions.
Key Features:
- Supports Wi-Fi 6 (802.11ax) for higher capacity and lower latency.
- MU-MIMO on 2.4 GHz and 5 GHz for simultaneous device connections.
- 1024-QAM improves data transmission efficiency.
- Up to four spatial streams for better performance.
- Supports 160 MHz bandwidth for faster speeds.
- Up to 2.975 Gbps total wireless throughput.
- Dual-band smart antennas for optimized coverage.
- Multiple security modes including WPA2, WPA3, and 802.1X.
- Automatic radio calibration for channel and power optimization.
- Cloud-based management for easy deployment and monitoring.
New
Data sheet
| Antenna gain | 2.4 GHz: 4 dBi, 5 GHz: 4 dBi |
|---|---|
| Dimensions | 86 mm x 160 mm x 38 mm |
| Operating temperature | 0°C to 40°C |
| Power Consumption | 9.4 W |
| SSIDs | 16 |
| Weight | 0.23 kg |
| Storage Temperature | -40°C to +70°C |
| Antenna Type | Built-in smart antennas |
