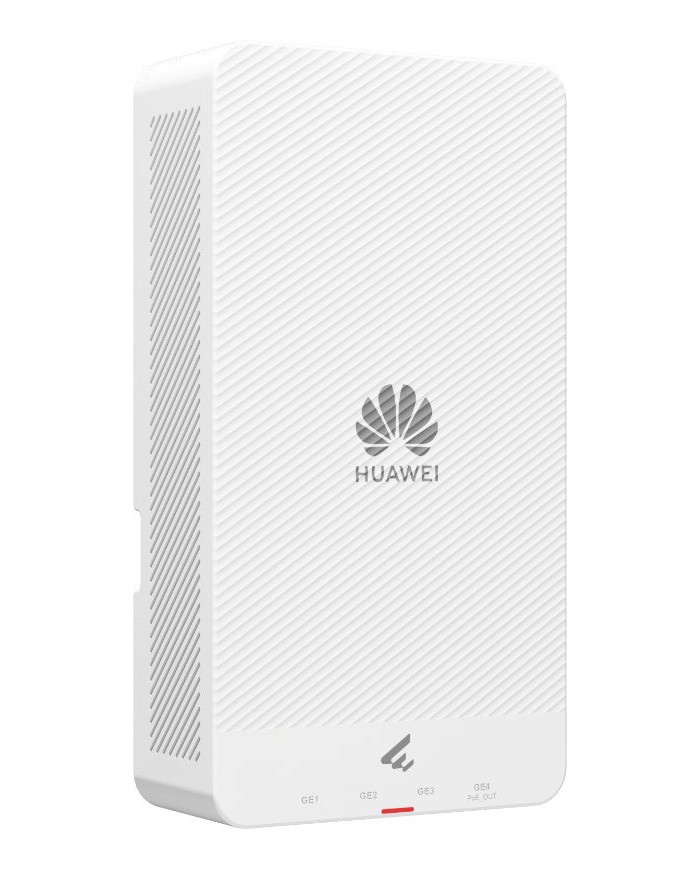

Huawei eKitEngine AP266: AX3000 Wall-Plate Wi-Fi 6 Access Point
The Huawei eKitEngine AP266 Wi-Fi 6 Wall Plate Access Point is a slim wall-mounted access point delivering fast Wi-Fi 6 connectivity with up to 2.975 Gbps across 2.4 GHz and 5 GHz bands. It features five Gigabit ports with PoE OUT, flexible wall, desk, or ceiling deployment, smart antennas for optimal coverage, and supports MU-MIMO, smart roaming, security, and cloud management for easy and reliable enterprise networking.
Key Highlights:
- Dual-band Wi-Fi 6 (802.11ax) with 4 spatial streams
- Total wireless speed up to 2.975 Gbps

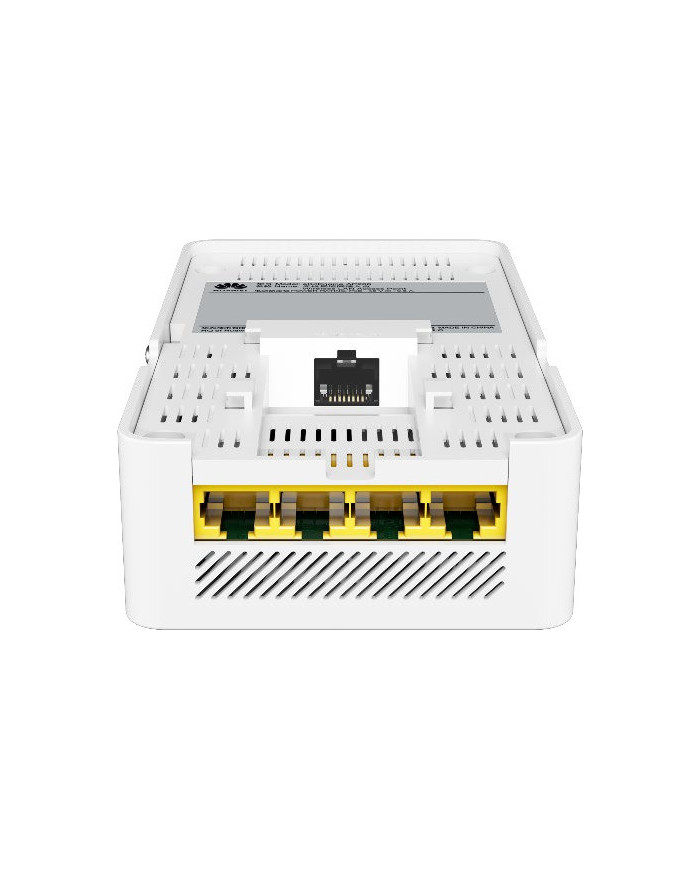

- Five Gigabit Ethernet ports (1 uplink, 4 downlink; 1 with PoE OUT)
- Smart antennas for efficient interference suppression
- Supports WEP, WPA3, 802.1X, and DTLS security
- Cloud-managed via eKit App and SNC platform
- Mountable on walls, ceilings, or desks
- Supports MU-MIMO, OFDMA, and DFS for optimal performance
- Integrated auto-calibration and fast roaming for seamless connectivity
New
Data sheet
| Antenna gain | 4 dBi (both bands) |
|---|---|
| Dimensions | 86 mm x 160 mm x 38 mm |
| Mounting | Wall, ceiling, desk, or junction box |
| Operating temperature | 0°C to 40°C |
| PoE | IEEE 802.3at (PoE IN), PoE OUT supported |
| Power Consumption | 9.4 W (excluding PoE OUT) |
| SSIDs | 16 |
| Users | 128 clients |
| WiFi | 802.11ax (Wi-Fi 6), backward compatible |
| Weight | 0.23 kg |
| Spatial Streams | 4 (2 per band) |
| Storage Temperature | –40°C to +70°C |
| Antenna Type | Built-in smart antennas |
| DataRate | Up to 2.975 Gbps |
