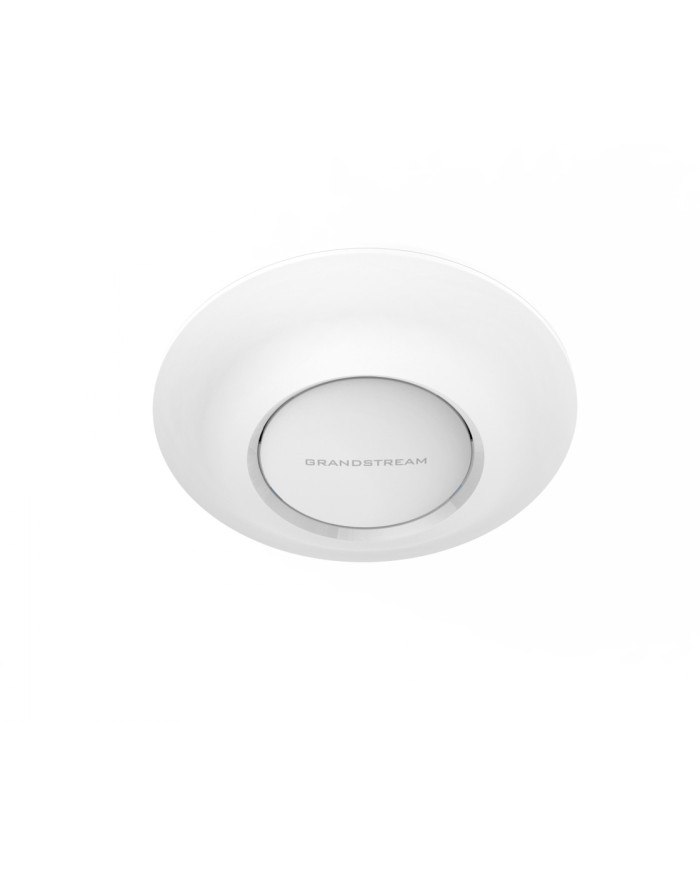

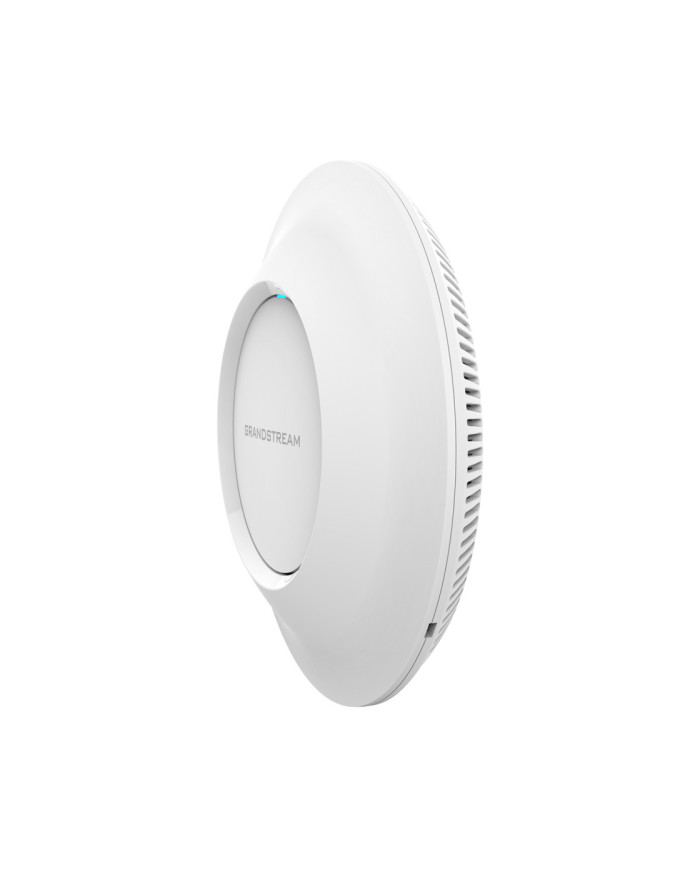

Grandstream GWN7610 Enterprise 802.11ac Wi-Fi Access Point
The Grandstream GWN7610 is a high-performance enterprise-grade 802.11ac Wi-Fi access point designed for medium to large businesses, multi-floor buildings, commercial spaces, and branch offices. It delivers fast, secure, and reliable wireless connectivity with advanced management features and seamless scalability.
Main Features
- Supports 802.11ac with speeds up to 1.75 Gbps (450 Mbps on 2.4GHz + 1300 Mbps on 5GHz).
- Simultaneous 2.4GHz & 5GHz operation for better performance and reduced interference.
- 3x3:3 MU-MIMO technology enhances speed, coverage, and capacity.
- Features 1x Gigabit Ethernet (PoE/PoE+) for high-speed wired connectivity and power delivery.
- Eliminates the need for dedicated hardware, managing up to 50 GWN APs from a single device.
- Supports WPA/WPA2-PSK, WPA/WPA2-Enterprise, anti-hacking protection, and secure boot.
- Handles over 250 concurrent Wi-Fi clients, making it ideal for high-density environments.
- Supports 802.3af/802.3at PoE+, simplifying installation without extra power adapters.
- Up to 175 meters (575 feet) coverage for wide-area deployment.
- Ensures optimal bandwidth allocation for critical applications like VoIP and video streaming.
- Ensures uninterrupted connectivity for mobile users across multiple access points.
- Ideal for offices, hotels, schools, hospitals, and retail stores.
- Robust hardware with ceiling or wall-mounting options for flexible installation.
New
Data sheet
| Concurrent Clients | 250+ |
|---|---|
| Coverage Range | Up to 575 ft. (175 meters) *coverage range can vary based on environment |
| Dimensions | 205.3 x 205.3 x 45.9mm |
| Interface | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| Operating humidity | 10% to 90% Non-condensing |
| Operating temperature | 0°C to 50°C |
| Protocol | IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| SSIDs | 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| WiFi | IEEE 802.11 a/b/g/n/ac |
| Frequency Range | 2.4GHz radio : 2.400 - 2.4835 GHz 5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM) |
| Weight | 540g |
| Power Supply | DC Input: 24VDC/1A Power over Ethernet 802.3af/802.3at compliant Maximum Power Consumption:13.8W |
| Antenna Type | 3x 2.4 GHz, gain 3 dBi, internal antenna 3x 5 GHz, gain 3 dBi, internal antenna |
