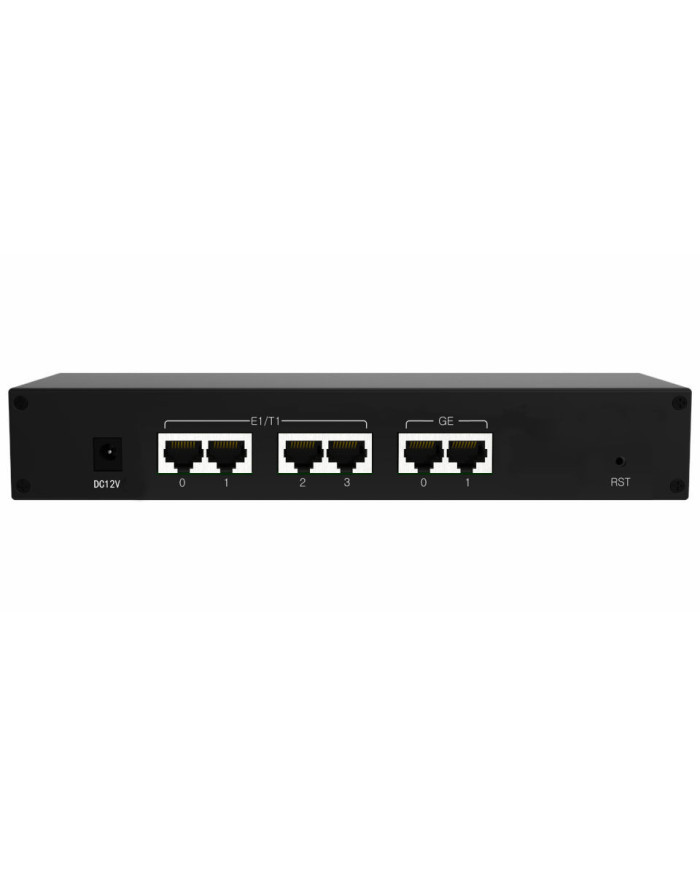

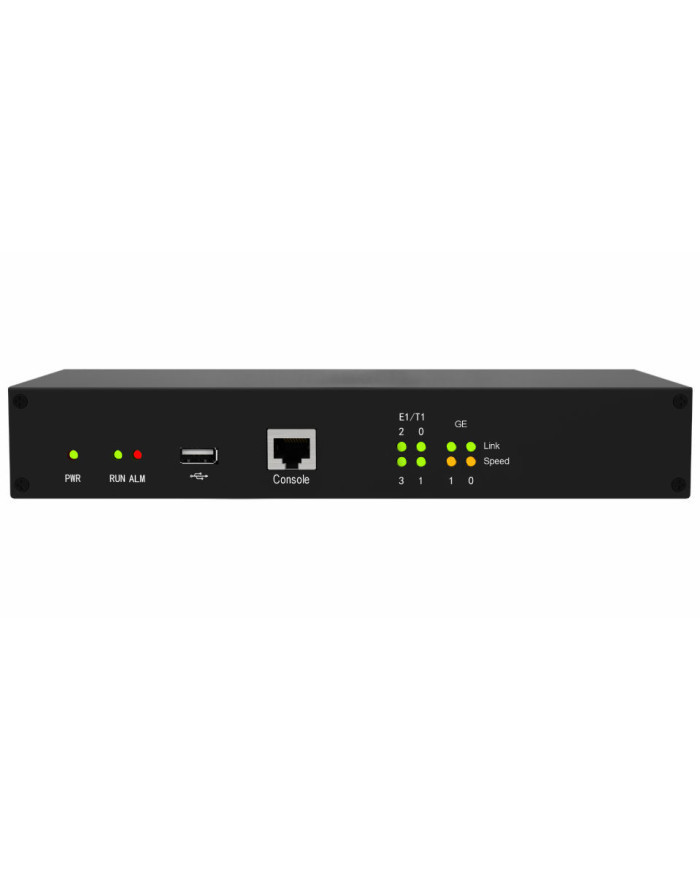

DINSTAR MTG200 2*E1 T1 PRI Trunk Gateway with G.723/G.729/ILBC Codec
Dinstar MTG200 Trunk Gateway enables direct routing of calls between the fixed line ISDN and the cost-effective IP networks for capitalizing on low cost VoIP telephony. By integrating MTG200 Trunk Gateway with existing PBX / PABX telephone systems, businesses of all sizes can benefit from low-cost Voice over IP calls and achieve substantial cost savings without the high upfront costs associated with communications infrastructure changes related with the migration to VoIP.
Description:
- Up to 60 simultaneous calls with 2* E1/T1 ports
- Support echo cancellation, DJB, CNG, VAD and QoS
- Use of existing E1/T1 ISDN PRI interface of the PBX
- Use of existing VoIP interface of the IP-PBX
- Maintain existing dialing habits and business communication patterns
- Built-in Web-based management, SNMP, command line interface (CLI)
- Standard ISDN compliant and Interoperable with a wide range of IP-PBXs
New
Data sheet
| Codec | G.711a/μ law, AMR G.723.1, G.729AB, iLBC |
|---|---|
| Dimensions | 225*150*38mm |
| DTMF | RFC2833/SIP Info/In-band |
| Echo Cancellation | Echo Cancellation (G.168), up to 128ms |
| RJ45 Ports | 10/100/1000 Ethernet ports |
| Operating humidity | 10%-90% Non-Condensing |
| Operating temperature | 0 ℃ ~ 45 ℃ |
| Power Consumption | 15 W |
| PRI Ports (T1/E1/J1) | 2 |
