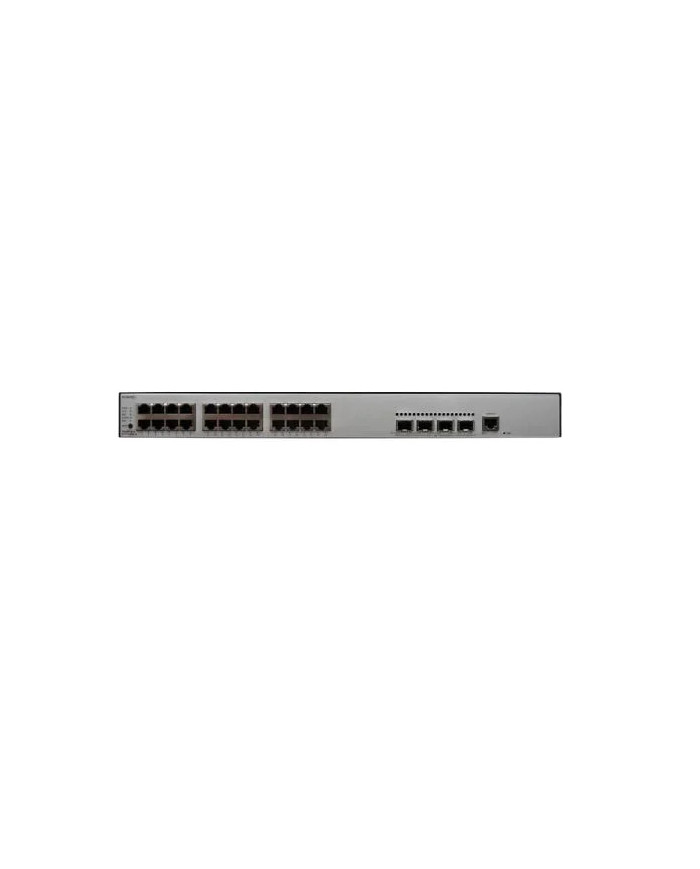

Huawei S5735-L24P4S-A1, Huawei S5735 Switch, 24xGE PoE+/4xSFP/AC PowerHuawei
The Huawei S5735-L24P4S-A1 is a 24-port enterprise campus network switch designed for secure, high-performance access networking. It features a simplified yet robust architecture based on modern switching technology, enabling efficient traffic forwarding, enhanced security control, and reliable network operation. The switch is well suited for enterprise campuses requiring stable connectivity, easy management, and dependable performance.
Product Highlights:
- Layer 3 web-based management for simplified configuration and monitoring
- Quality of Service (QoS) for traffic prioritization and performance optimization
- 24 RJ-45 Ethernet switching ports with RJ-45 console interface
- MAC address table supporting up to 32,896 entries
- High switching capacity of 336 Gbit/s for efficient data handling
- Controllable multicast with interface-level multicast traffic statistics
- Integrated Access Control Lists (ACL) for enhanced network security
- 1U rack-mountable design with stackable capability
- Built-in AC power supply with Power over Ethernet (PoE) support
New
Data sheet
| IP Services | Yes |
|---|---|
| MAC Address Table Size | 32896 entries |
| Maximum VLAN | 4000 |
| Packet Forwarding Rate | 42 Mpps |
| PoE | Yes |
| PoE ports | 24 |
| Power Consumption | 53.2000 |
| SFP Ports | 4 |
| Switching Capacity | 336 Gbit/s |
| Console port type | RJ-45 |
| Weight | 2940 g |
| Flash Memory | 512 MB |
| MTBF | 488107 h |
| Loop Prevention | Yes |
| Link Aggregation Group(LAG) | Yes |
| ACL | Yes |
