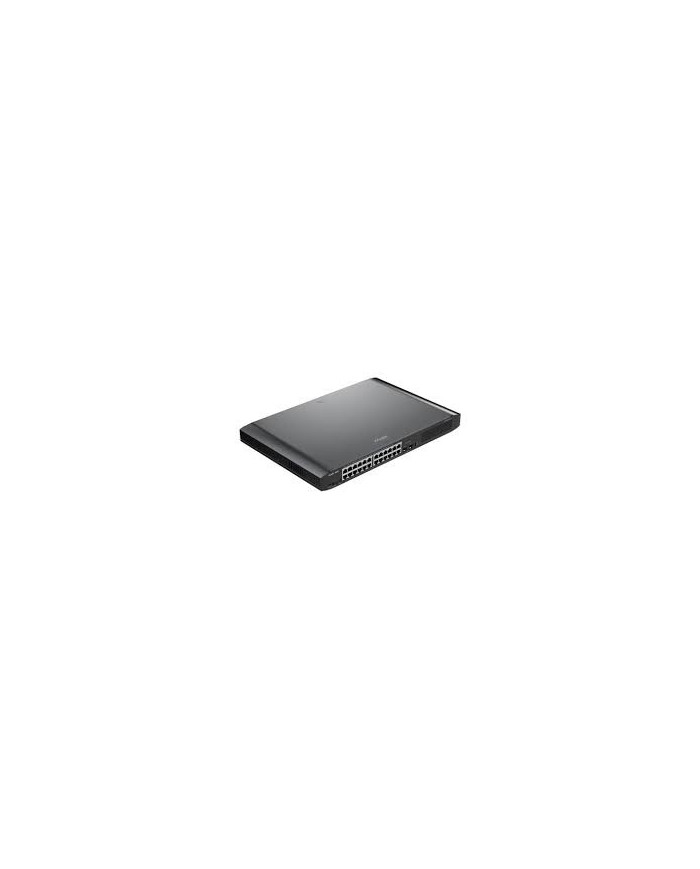

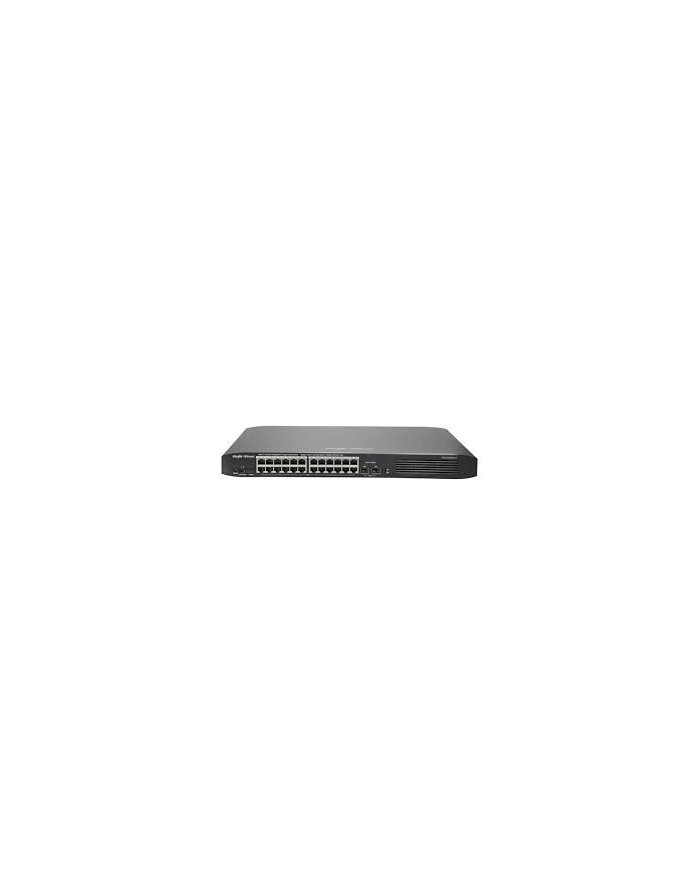

Ruijie RG-ES226GC-P 26-Port Gigabit Smart Cloud Mananged POE+Switch
The Ruijie Reyee RG-ES226GC-P is a powerful 26-port Gigabit smart PoE switch built to deliver reliable and efficient network connectivity for modern business environments. Designed with durability and smart management features, it is well-suited for small to mid-sized businesses, as well as applications in hospitality, education, and video surveillance.
The Ruijie Reyee RG-ES226GC-P is a high-performance 26-port Gigabit Smart PoE switch built for reliable connectivity in business, education, hospitality, and surveillance networks. It includes 24 PoE+ ports and 2 Gigabit SFP uplink slots, supporting IEEE 802.3af/at standards with a 370W total PoE power budget. Delivering a 52 Gbps switching capacity and 38.69 Mpps forwarding rate, it ensures stable, high-speed data transmission for IP cameras, access points, and VoIP phones.
Designed for intelligent network management, the switch offers features like VLAN, QoS, port mirroring, and IP camera recognition for simplified setup and control. With Ruijie Cloud access, users can manage and monitor the network remotely. Additional benefits such as loop prevention, 4 kV surge protection, and a built-in cooling fan enhance reliability, while its compact rack-mountable design makes it ideal for professional network installations.
Key Features & Specifications:
- Total Ports: 26 ports including 24 × 10/100/1000Base-T PoE+ ports and 2 × Gigabit SFP uplink slots
- PoE Power Budget: 370W total output, supporting IEEE 802.3af/at power standards
- Switching Capacity: 52 Gbps high-speed capacity for smooth and stable data transmission
- Forwarding Rate: 38.69 Mpps for rapid packet forwarding and improved network efficiency
- Smart Management: Integrated VLAN, QoS, port mirroring, and IP camera detection for optimized control
- Cloud Management: Centralized configuration and lifetime remote monitoring via Ruijie Cloud
- Loop Prevention: Automatic loop detection and recovery to ensure stable network performance
- Surge Protection: 4 kV surge resistance on all ports to safeguard against electrical damage
- MAC Address Table: Supports up to 8,000 MAC addresses for scalable network expansion
- VLAN Support: Up to 16 VLANs for secure and segmented traffic management
- Cooling System: Built-in fan for efficient heat control during continuous operation
- Reliability: MTBF exceeding 200,000 hours ensures exceptional durability and uptime
- Design: Compact, rack-mountable metal chassis (440 × 289 × 43.6 mm) suitable for professional installations.
