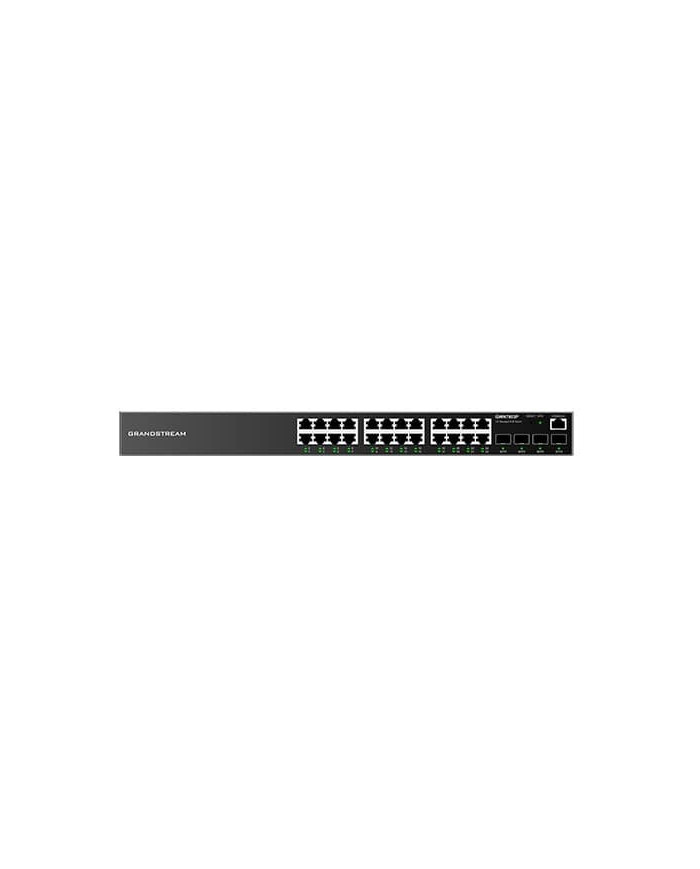

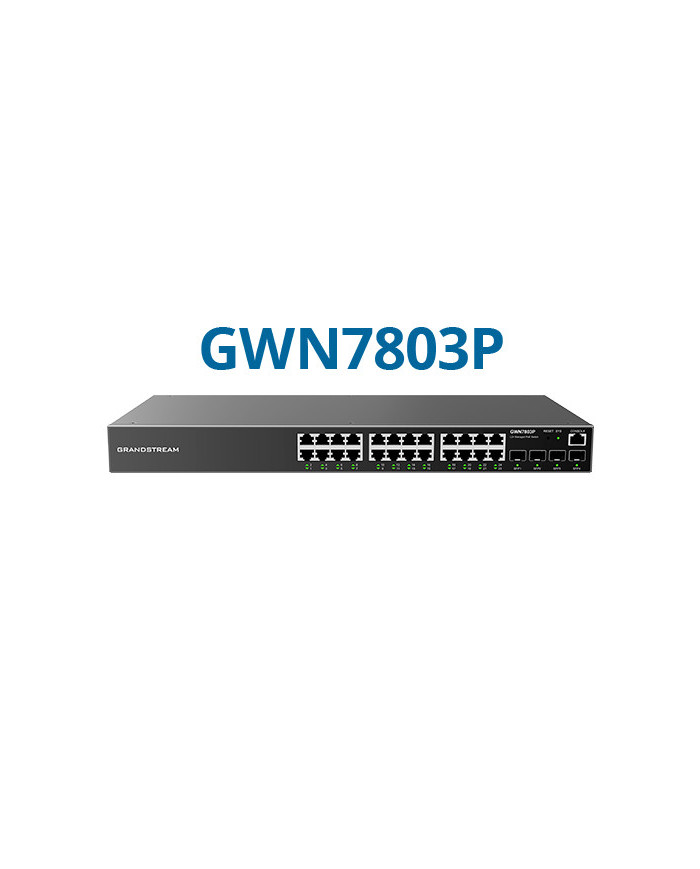

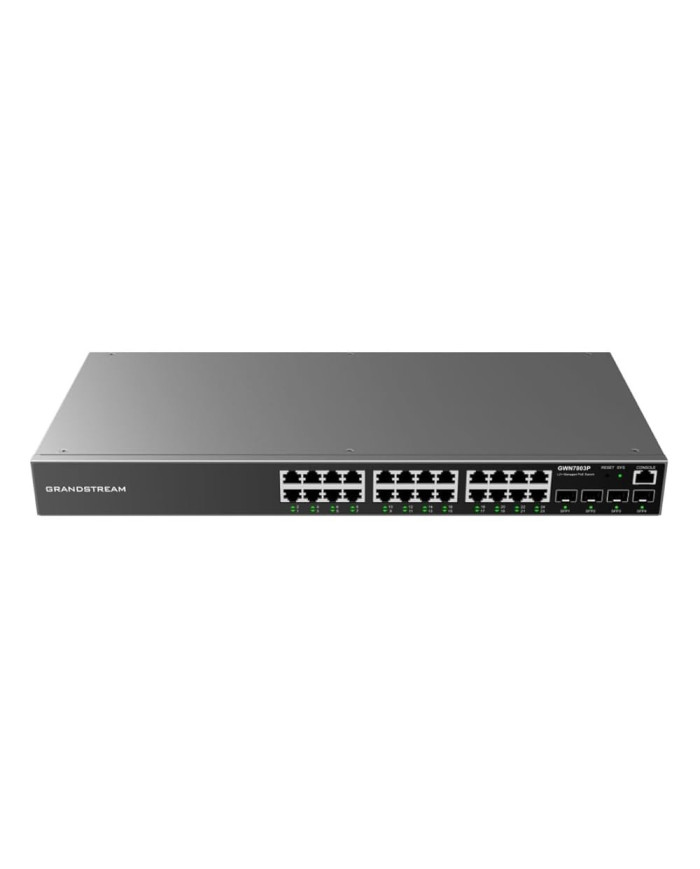

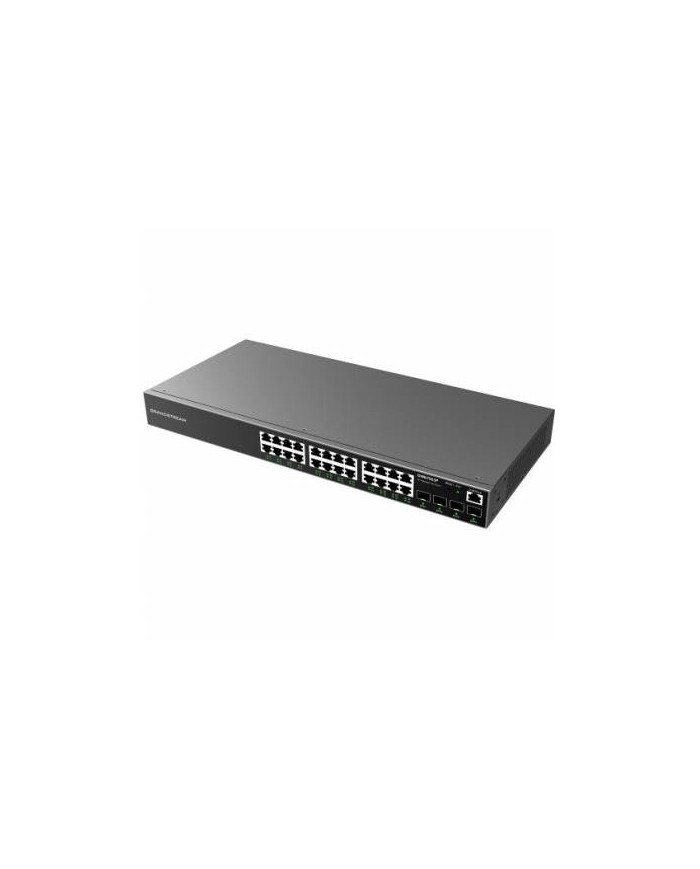

Grandstream GWN7803P | 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch
The Grandstream GWN7803P is a managed Layer 2+ network switch with 24 Gigabit Ethernet ports (all supporting PoE/PoE+), plus 4 SFP uplink ports. It offers features targeted at small-to-medium businesses: smart power allocation per port, strong security features, VLAN and QoS support.
Description:
- Ports: 24× Gigabit RJ-45 Ethernet ports with PoE/PoE+ support.
- Uplink / SFP: 4× Gigabit SFP ports for fiber uplinks etc.
- PoE Power: Up to ~30 W per port. Total PoE budget is 360 W.
- Switching Capacity / Throughput: Non-blocking throughput: ~28 Gbps; switching capacity ~56 Gbps; forwarding rate ~41.66 million pps.
- Packet Buffer: ~4.1 Mb buffer space.
- Latency: Average latency < 4 microseconds.
- VLANs: Supports up to 4,000 VLANs; 16 virtual interfaces; supports port-based, MAC-based, protocol-based VLANs, IEEE 802.1Q tagging; voice VLAN etc.
- MAC Addresses: Can handle ~8K MAC entries (static, dynamic, filtering, sticky).
- Multicast: IGMP Snooping (v2 & v3), MLD Snooping (v1 & v2), up to 256 groups each.
- Security Features: ARP inspection, IP source guard, DHCP snooping; DoS protection; port security; MAC filtering; 802.1X authentication; loop protection; BPDU protection; root protection etc.
- QoS / Traffic Management: Port priority, mapping, rate limiting, queue scheduling (Strict Priority, Weighted Fair Queuing etc.), traffic shaping.
- Management & Monitoring: Multiple options: local GUI, CLI, cloud-based (GDMS-Networking), GWN Manager. Also supports SNMP, RMON, syslog, alerting, diagnostics (ping, traceroute, etc.).
- Protocols & Standards: Supports IPv4 & IPv6; standards like IEEE 802.3/3u/3ab etc.; 802.1p (for QoS), 802.1Q (VLAN), STP/RSTP/MSTP; 802.1X; many others.
- Form Factor / Mounting: Can be desktop, wall-mount or rack-mount. Rack brackets included.
- Power Supply / Physical / Environmental: Integrated PSU; operating temperature ~0 - 45 °C; storage -10-60 °C; humidity non-condensing.
New
Data sheet
| Dimensions | 440mm(L)x200mm(W)x44mm(H) |
|---|---|
| RJ45 Ports | 24 |
| Memory | 128MB RAM, 32MB Flash |
| Mounting | Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included) |
| Operating temperature | 0°Cto 45°C, humidity 10-90% RH(Non-condensing) |
| Packet Forwarding Rate | 41.66Mpps |
| PoE | IEEE 802.3af/at |
| Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.1x |
| SFP Ports | 4 |
| Switching Capacity | 56Gbps |
| Fan | 2 |
| Console port type | 1 |
| Weight | 3.3Kg |
| Max Throughput | 28Gbps |
| Power Supply | 400W |
| Buffer Size | 4.1Mb |
