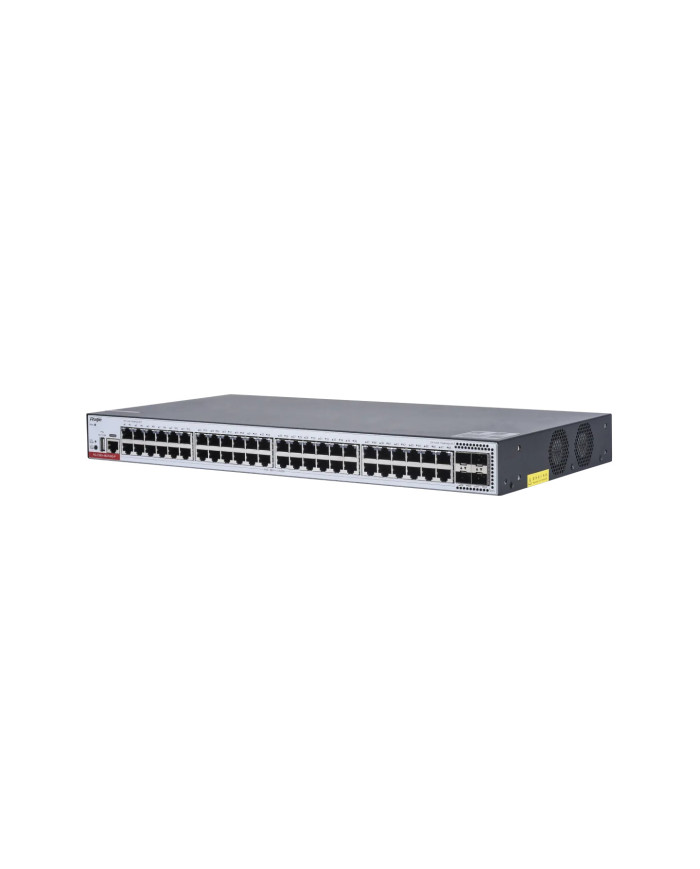

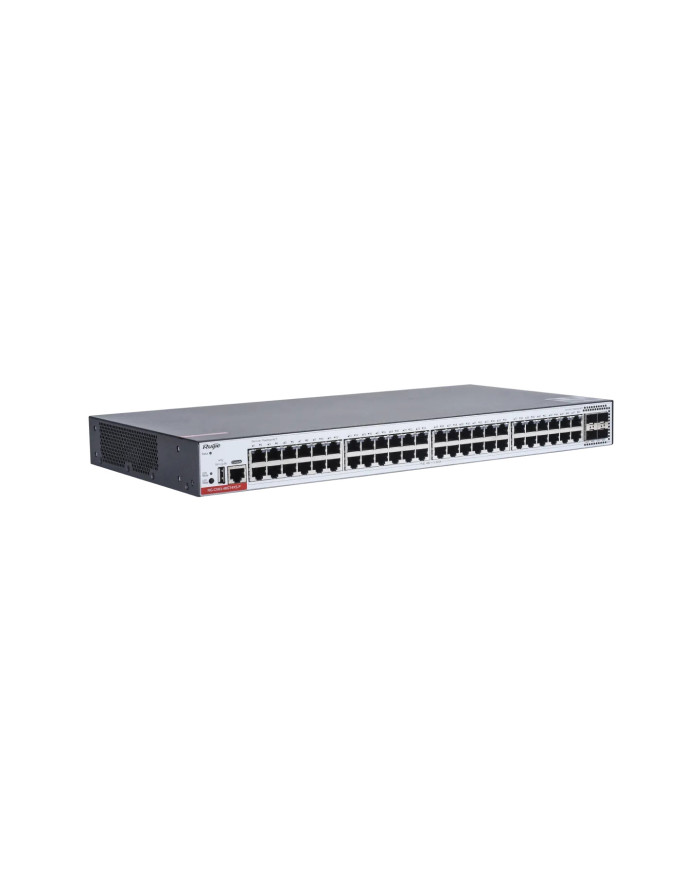

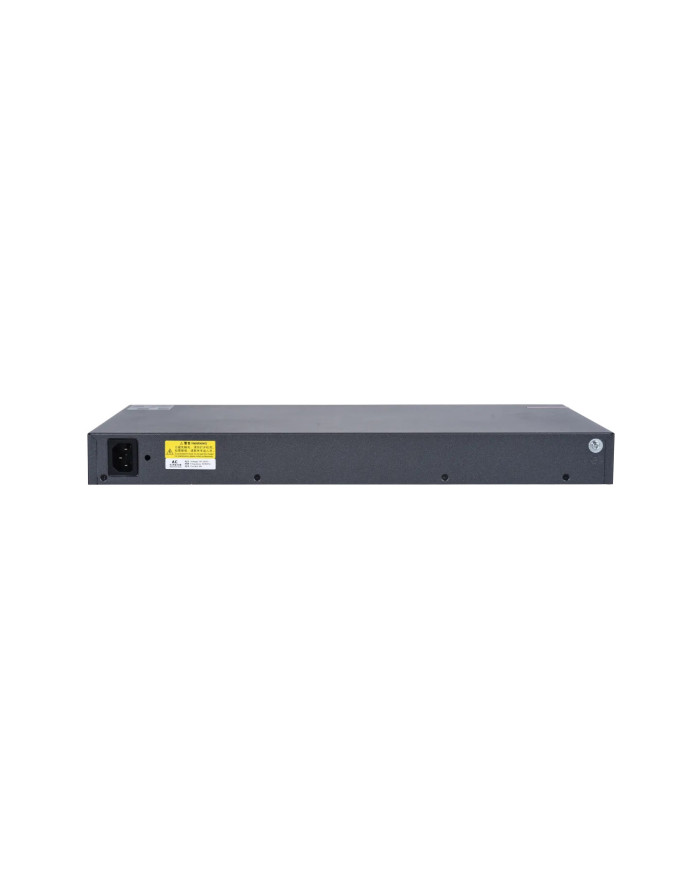

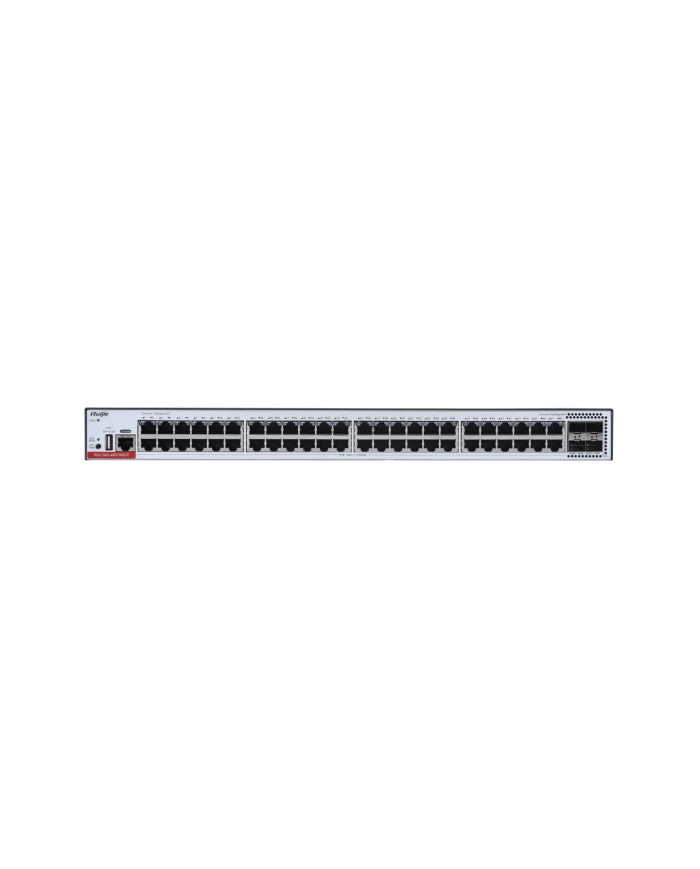

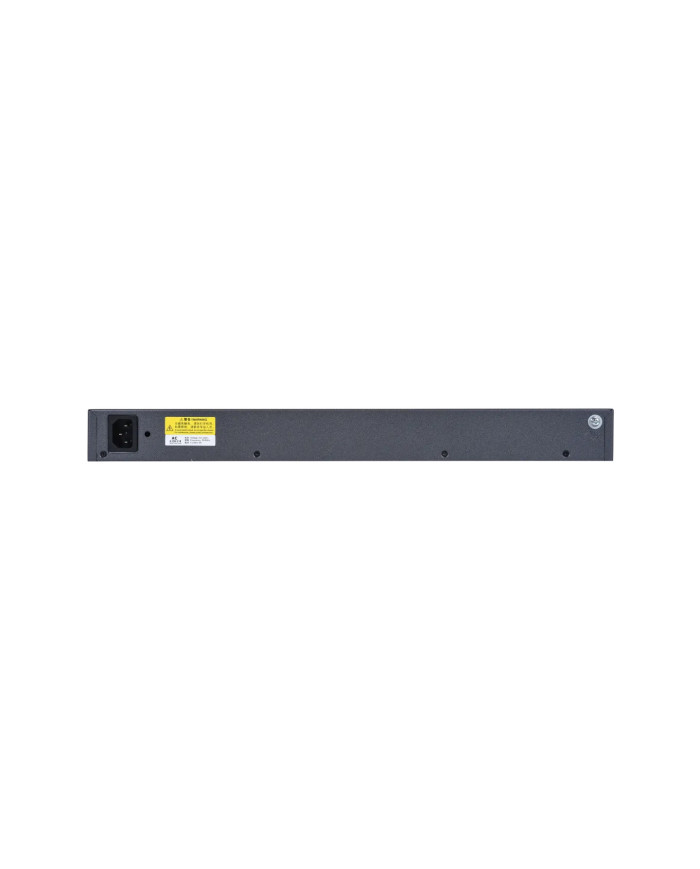

RUIJIE RG-CS83-48GT4XS-P 48-PORT 10/100/1000BASE-T,AND 4 1G/10G SFP+ PORTS, SUPPORT POE/POE+, MAX 405W FOR POE
The RG‑CS83‑48GT4XS‑P is a high-performance, fully managed 48-port Gigabit PoE+ switch with 10G uplinks, designed for enterprise or campus networks. It delivers robust Layer 2/3 functionality, advanced security, powerful PoE budget, and is backed by flexible, modular RGOS and cloud management—ideal for modern, adaptable network infrastructure.
Description
- 48 x 10/100/1000BASE-T RJ45 ports with full PoE/PoE+ support
- 4 x 1G/10G SFP+ uplink ports, supporting both 1 G and 10 G modules
- Switching capacity: 176 Gbps; forwarding performance: 132 Mpps
- MAC table size: 32K entries; ARP table: 4K
- Layer 3 routing support: IPv4/IPv6 static, RIP, OSPF, IS-IS, BGP, VRRP
- Cloud & multi-access management: via Ruijie Cloud, Web, SNMP, CLI, Telnet, RMON, gRPC
- Layer 2/3 features: STP/RSTP/MSTP, RLDP, ERPS, LACP, QoS, ACL, VLAN, QinQ, DHCP snooping, IP Source Guard
- Network security: ARP/DHCP spoof protection, DDoS defense via CPU protection policies (CPP, NFPP)
- Dual-stack IPv4 & IPv6 routing: supports RIPng, OSPFv3, IS-ISv6, multicast PIM-DM/SM, IGMPv1–v3, MLD
New
Data sheet
| CPU | Dual-core CPU, each core with the clock speed of 1.0 GHz |
|---|---|
| Dimensions | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
| MAC Address Table Size | 16,000 |
| Memory | 1 GB |
| Mounting | 1RU rack mounting |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Packet Forwarding Rate | 132 Mpps |
| Power Consumption | 40 W |
| Switching Capacity | 176 Gbps |
| Fan | 1 x fixed fan module |
| Weight | 4.0 kg (8.82 lbs) |
| Power Supply | 1 x fixed power supply |
| Flash Memory | 512 MB (storing boot software for 1+1 boot redundancy) |
| Buffer Size | 1.5 MB |
| Storage Temperature | 40°C to +70°C (–40°F to +158°F) |
| Fixed Port | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+4 x 1GE/10GE SFP+ ports |
