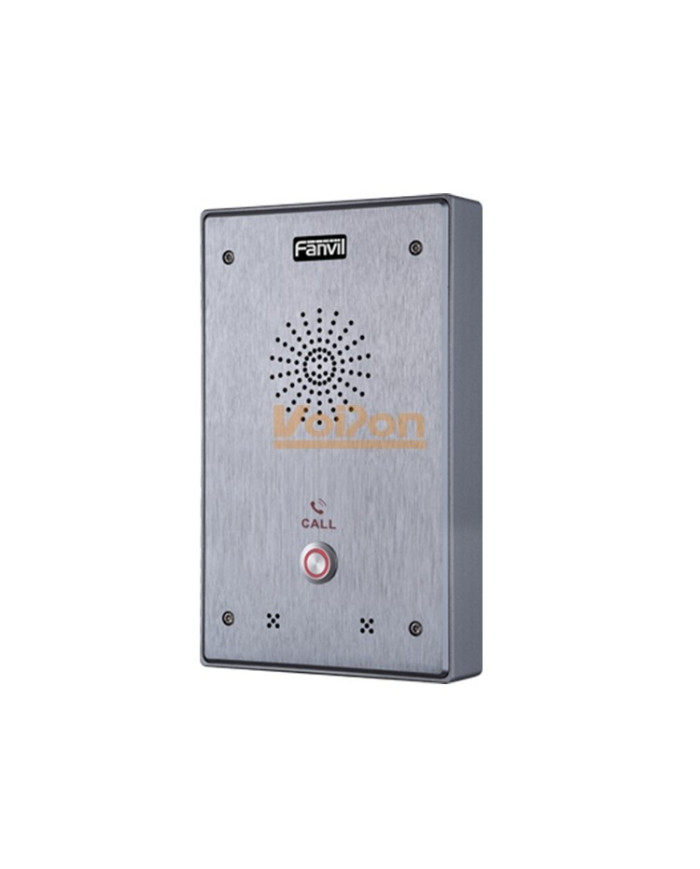

Fanvil i12-01P Standard SIP Audio Intercom-1 Button
The Fanvil i12-single is an intelligent, single button security intercom designed for a range of different application scenarios such as banks, schools, museums, city centers and many more. The Fanvil i12 SIP intercom combines IP technology with an industrial intercom and can be easily configured and managed.
Description:
- HD Voice with G.722 encoding
- PoE Enabled
- Anti-tamper alarm
- Security Linkage
- Advanced protection with IP65 and IK10
- Noise reduction
- Suitable for outdoor deployment
- 1 button
- Compatible with standard SIP protocol and main IP PBX/IMS platform
New
Data sheet
| Codec | G.711a/u, G.723.1, G.726-32K,G.729AB |
|---|---|
| Dimensions | 195x120x39mm (W x H x L) |
| DSS Keys | Yes |
| DTMF | In-band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO |
| Mounting | Wall-Mounting |
| Operating temperature | -40~70℃ |
| PoE | Yes, Available |
| Protocol | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP 802.1x L2TP (Basic Unencrypted) OpenVPN SNTP FTP/TFTP HTTP/HTTPS Tr069 |
| QoS | Yes, Integrated |
| SIP Accounts | 2 |
| VPN Support | L2TP (Basic Unencrypted) / OpenVPN |
| Web Management | yes, Available |
| Weight | 0.85KG |
| Power Supply | 10~14V/1.5A DC or PoE |
| Storage Temperature | -40~70℃ |
| Built-In Speaker | 2W/4Ω |
| Ports | RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to Network) |
| Omni-directional voice pickup | 5m |
