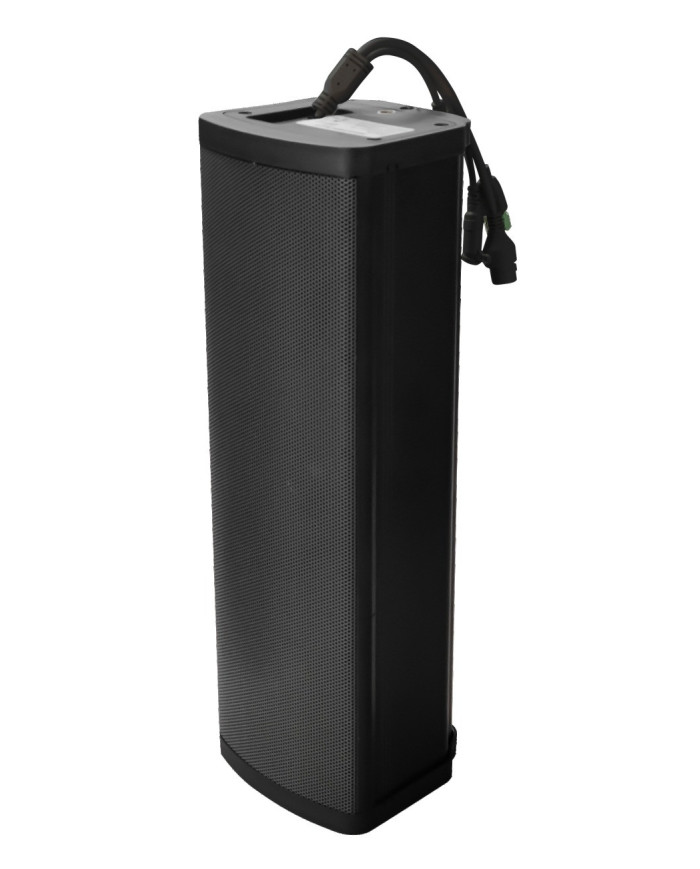

Zycoo EL30 Network Cabinet Speaker – 30W High-Fidelity SIP Speaker with Dual Drivers (Tweeter + Woofer)
The Zycoo EL30 Network Cabinet Speaker is a 30W SIP speaker with dual drivers (woofer + tweeter) delivering clear, high-fidelity sound (100Hz–18kHz, up to 104dB). It features an IP65-rated design, supports PoE or 24V DC power, and offers 48K OPUS audio with SIP/VoIP and ONVIF compatibility, making it ideal for professional IP paging systems.
Core Features:
- Speaker component: 1x0.75" high frequency + 1x 4" full-range driver unit
- Sensitivity: 90dB/1m/1W
- Max SPL: 104dB
- Amplifier: Class D Amplifier
- Rated power DC: 4Ω 30W / PoE: af-4Ω 8W / at-4Ω 20W
New
Data sheet
| Coverage Range | 135°, Optimal distance 50m |
|---|---|
| Dimensions | 390x130 x 120 mm (15.35x5.12 x 4.72 in) |
| Interface | 10/100Mbps, support PoE IEEE 802.3af/at |
| Memory | 128MB RAM, 256MB Flash |
| Mounting | Wall/Pole mounted |
| Operating temperature | -30°C - 70°C(-22°F - 158°F) |
| Protocol | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Frequency Range | 100Hz – 18KHz |
| Color | Gray |
| Weight | 2.4KG |
| Speaker Sensitivity | 90dB/1m/1W |
| Storage Temperature | -40°C - 70°C(-40°F - 158°F) |
| Rated Power | DC: 4Ω 30W or PoE: af-4Ω 8W / at-4Ω 20W |
