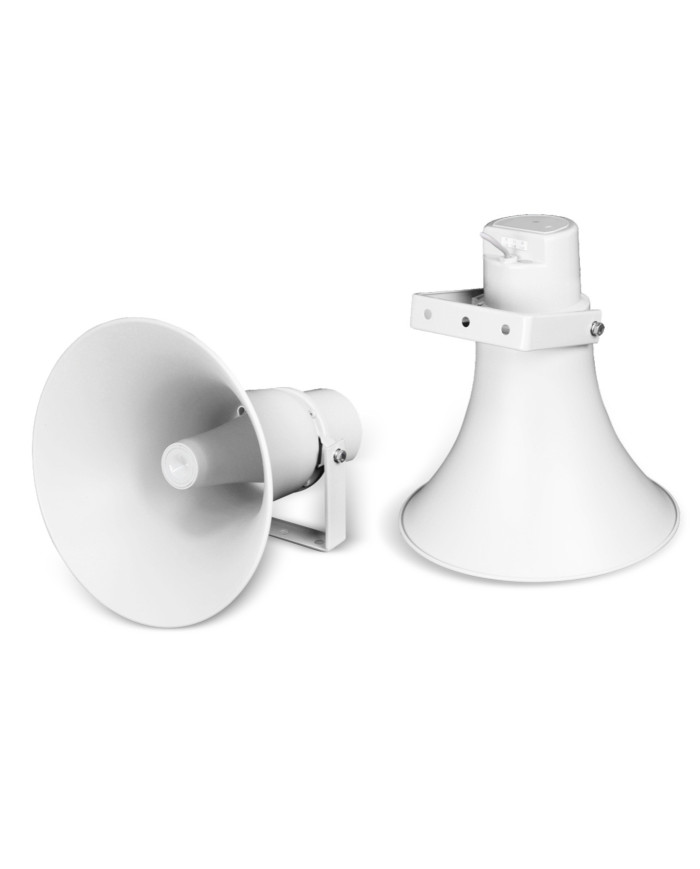

Zycoo EH60 IP Paging Horn – 60W Class D Amplifier, High SPL (133dB) for Outdoor & Noisy Environments
The Zycoo EH60 IP Paging Horn is a 60W high-power SIP horn delivering up to 133dB output for clear paging in noisy outdoor environments. It features an IP66 weather-resistant design, 48K OPUS audio, SIP/VoIP and ONVIF compatibility, multiple SIP accounts, and HTTP API alarm support, making it ideal for large-scale IP PA and emergency systems.
- Speaker component: 1.5" mid-frequency driver unit
- Sensitivity: 116dB/1m/1W/1KHz
- Max SPL: 133dB
- Amplifier: Class D Amplifier
- Rated power DC: 4Ω 60W
- Frequency range: 380Hz~6.5KHz
New
Data sheet
| Coverage Range | 78°H 78°V(1kHz/-6dB), effective distance 300m |
|---|---|
| Dimensions | Ø325 x 350 mm (12.8 x 13.78 in) |
| Interface | 10/100Mbps |
| Memory | 128MB RAM, 256MB Flash |
| Mounting | Wall/Pole mounted |
| Operating temperature | -30°C - 70°C(-22°F - 158°F) |
| Protocol | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Frequency Range | 380Hz – 6.5KHz |
| Color | White |
| Weight | 3KG |
| Speaker Sensitivity | 116dB/1m/1W/1KHz |
| Storage Temperature | -40°C - 70°C(-40°F - 158°F) |
| Rated Power | DC: 4Ω 60W |
| Speaker Max Input Power | DC 24V-3A |
