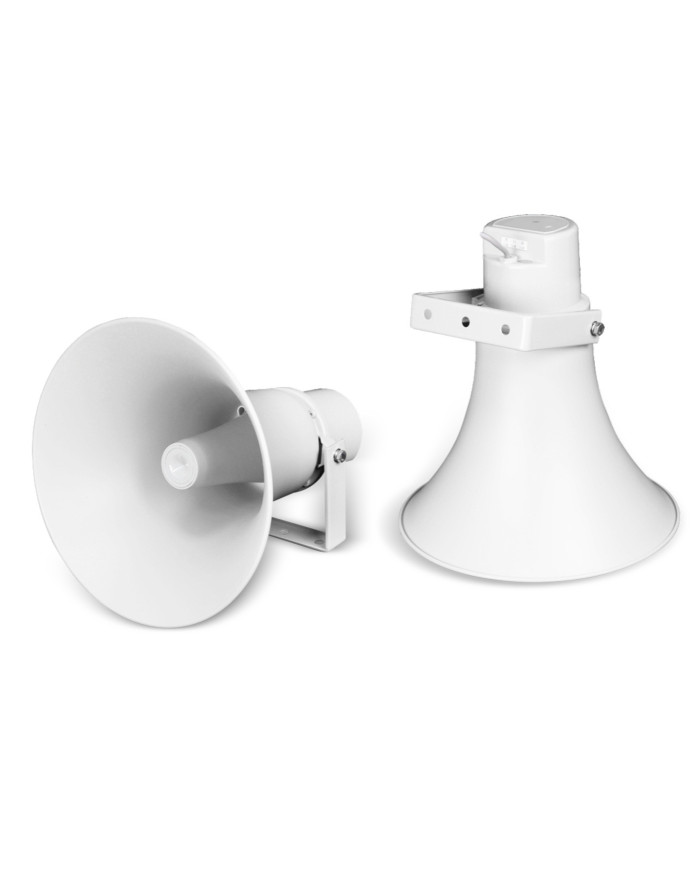

Zycoo EH30 High-Power Network Horn – 30W Output, Extreme Volume (129dB), IP65 Outdoor PA System
The Zycoo EH30 Network Horn Speaker is a powerful 30W SIP horn delivering up to 129dB output across a 380Hz–10kHz range. Built for harsh outdoor and industrial environments, it supports PoE or 24V DC power, 48K OPUS audio, SIP/VoIP and ONVIF integration, multiple SIP accounts, and HTTP API alarm triggering—making it ideal for IP-based PA and emergency notification systems.
- Speaker component: 1.5" mid-frequency driver unit
- Sensitivity: 115dB/1m/1W/1KHz
- Max SPL: 129dB
- Amplifier: Class D Amplifier
- Rated power DC: 30W / PoE: af-8Ω 8W / at-8Ω 20W
- Frequency range: 380Hz~10KHz
New
Data sheet
| Coverage Range | 78°H 78°V(1kHz/-6dB), effective distance 200m |
|---|---|
| Dimensions | Ø246 x 292 mm (7.69 x 11.50 in) |
| Interface | 10/100Mbps, support PoE IEEE 802.3af/at |
| Memory | 128MB RAM, 256MB Flash |
| Mounting | Wall/Pole mounted |
| Operating temperature | -30°C - 70°C(-22°F - 158°F) |
| Protocol | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Frequency Range | 380Hz – 10KHz |
| Color | White |
| Weight | 2.5KG |
| Speaker Sensitivity | 115dB/1m/1W/1KHz |
| Storage Temperature | -40°C - 70°C(-40°F - 158°F) |
| Rated Power | DC: 8Ω 30W or PoE: af-8Ω 8W / at-8Ω 20W |
