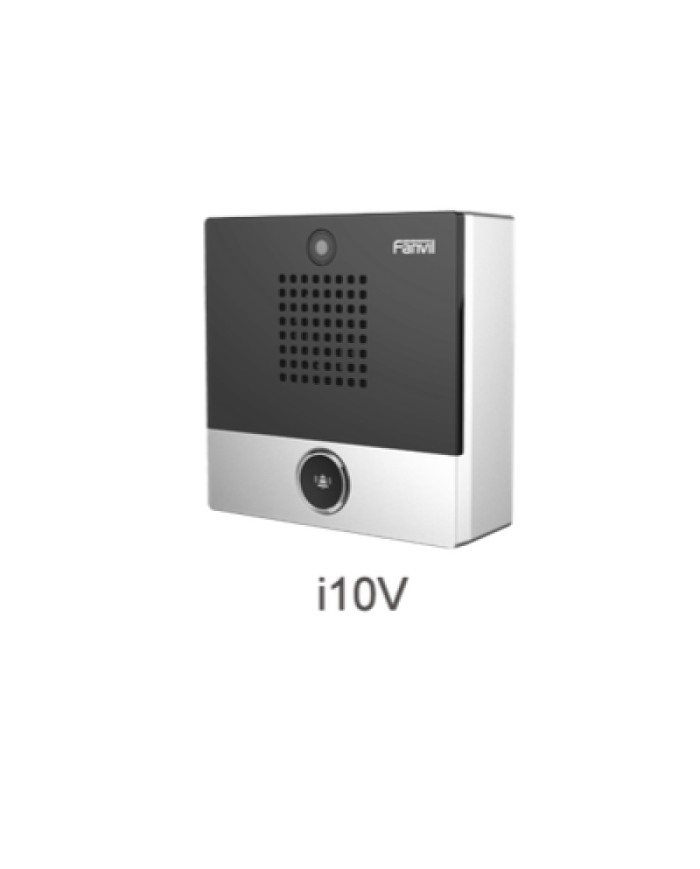

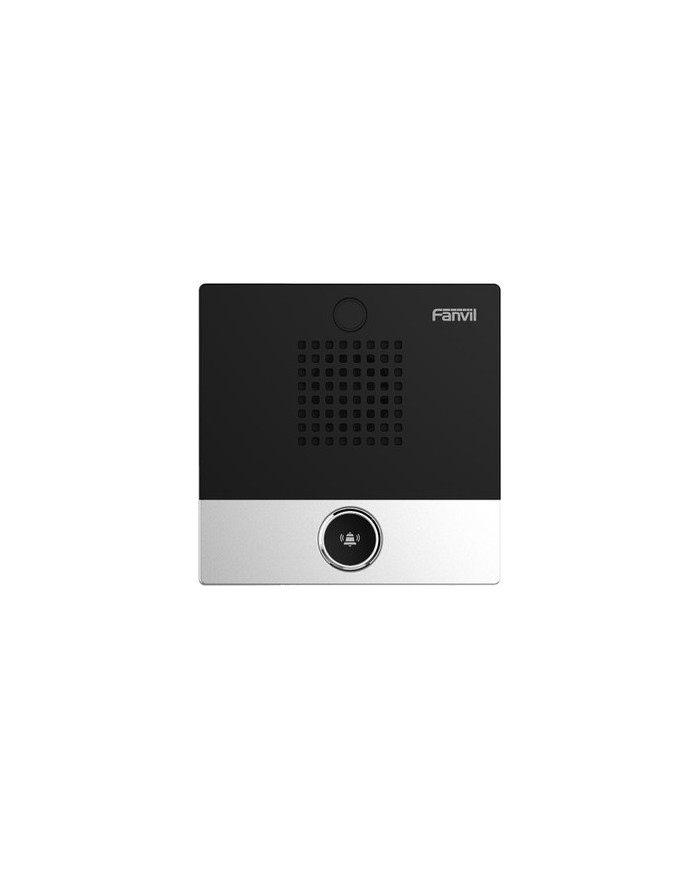

Fanvil i10V Indoor Std. SIP Video Intercom-1 Button
The Fanvil i10V is an ultra-compact, indoor SIP video intercom featuring a single button, HD camera (720p), PoE support, and IP54-rated weather resistance—ideal for secure entry in offices, apartments, hotels, or hospitals. It supports two SIP lines and is compatible with major VoIP platforms
Description:
- Form Factor – Small, square indoor unit (~86 × 86 mm wall mount compatible)
- Single Programmable Button – One DSS speed‑dial button for calls
- Dual SIP Lines – Supports 2 concurrent SIP registrations
- HD Video Camera – 1 MP CMOS sensor, 720p resolution, 90° viewing angle, 0.1 Lux minimum illumination
- Wideband & Narrowband Audio – Opus, G.722; G.711, G.729AB, iLBC
- Full-Duplex Speaker & AEC – 1 W speaker with Acoustic Echo Canceller
- Network Port – 10/100 Mbps Ethernet with PoE; DC 12 V/1 A optional
- Protocols Supported – SIP 2.0 (UDP/TCP/TLS), RTP/SRTP, STUN, HTTP/HTTPS, TR-069, VPN (L2TP, OpenVPN)
- Security Features – 802.1x authentication, VLAN, QoS, LLDP, SNTP
- VoIP Signaling – DTMF via RFC2833, SIP INFO, in-band
- Intercom & Auto-Answer – Press button and auto-opens call/intercom function
- Durability – IP54 rated for dust and water resistance; operating range –20 to 50 °C
- Audio Tools – VAD, CNG, BNE, PLC, jitter buffer (up to 300 ms)
- Action URL / Active URL – Supports integration with access control systems
- Provisioning & Management – Auto-provision via FTP/TFTP/HTTP/HTTPS/DHCP Option 66/TR-069; web UI & packet capture
- Hardware Interface – 1 relay output + 1 input (short-circuit trigger) for door control .
New
Data sheet
| Codec | G.711a/u, G.729AB, iLBC |
|---|---|
| DC Power | DC12V/1A |
| Dimensions | 88 x 88 x 31mm |
| DSS Keys | Support customized keys |
| DTMF | : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO |
| RJ45 Ports | 1 |
| Interface | 10/100 Mbps Ethernet |
| Operating temperature | -20 ~50 °C |
| PoE | Yes, Available |
| Protocol | SIP2.0 over UDP/TCP/TLS , RTP/RTCP/SRTP , STUN ,DHCP , LLDP , PPPoE , 802.1x , L2TP , OpenVPN ,SNTP |
| Resolution | Video Resolution:720P |
| SIP Accounts | 2 |
| Weight | 135g |
| Storage Temperature | -20 ~ 50 °C |
| Viewing Angle | Diagonal: 84.1° , Horizontal: 71.7° , Vertical: 56.7° |
