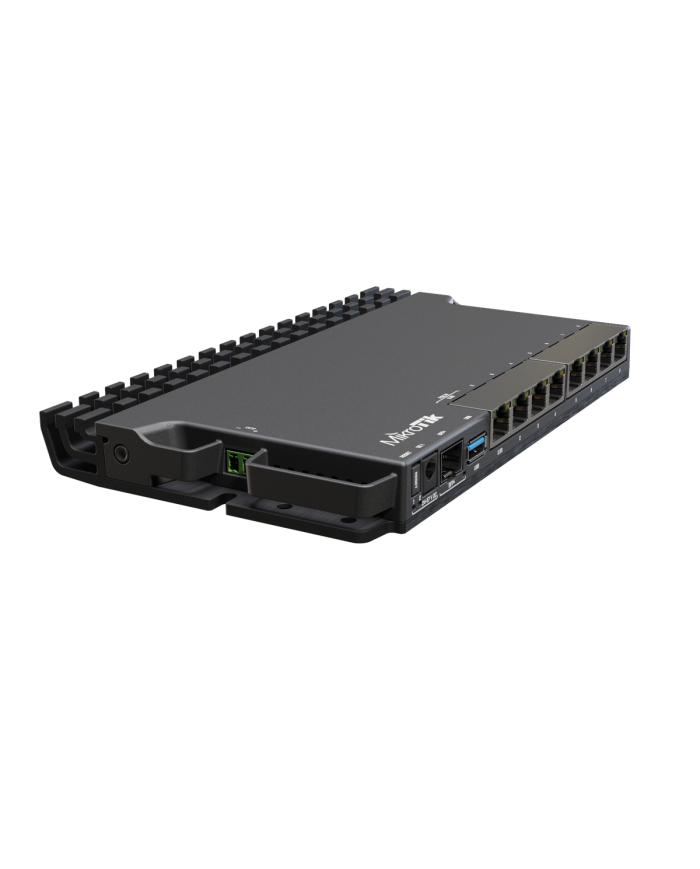

MikroTik RB5009UG+S+IN 7 Gigabit 1x 2.5Gbps 1SFP+ 4 Core Router
The MikroTik RB5009UG+S+IN is a high-performance, compact wired router targeted at home labs, SMBs or advanced users. It features 7×1 GbE ports, 1×2.5 GbE port, and 1×10 Gb SFP+ cage, powered by a quad-core ARM64 CPU plus a Marvell switch-chip, all in a 22 mm chassis that can mount up to 4 units in a 1U rack.
Description:
- Product code: RB5009UG+S+IN
- CPU: Marvell 88F7040, quad-core (ARM 64bit) up to ~1.4 GHz
- RAM: 1 GB DDR4
- Storage: 1 GB NAND flash
- Ethernet ports: 7×1 GbE RJ-45
- One 2.5 GbE RJ-45 port
- One 10 Gbps SFP+ cage (fiber / compatible modules)
- One USB 3.0 Type-A port for storage / peripherals
- Switch chip: Marvell 88E6393 (Amethyst family) with 10 Gb full-duplex backplane to CPU
- Operating system: RouterOS v7 (License level 5) only
- Dimensions: 220 × 125 × 22 mm
- Operating temperature range: –40 °C to +60 °C
- Cooling: Passive (metal chassis acts as heatsink)
- Max power consumption: ~14 W without attachments, ~20-25 W under full load
- Certifications: CE, EAC, RoHS
- Rack-mount friendly: With optional kit you can mount four of these devices in one 1U rack space.
- Great for heavy home-lab, small office, fibre uplinks, multi-WAN scenarios thanks to the 2.5G and 10G ports.
- Built for performance under heavy CPU-loads (e.g., VPN, firewalling) thanks to the strong hardware.
New
Data sheet
| CPU | 88F7040 1.4 GHz |
|---|---|
| Dimensions | 220 x 125 x 22 mm |
| Operating system | RouterOS v7 only |
| Operating temperature | -40°C to +60°C |
| PoE | 802.3af/at |
| Power Consumption | 25 W |
| Storage size | 1GB |
| Architecture | ARM 64bit |
| RAM | 1GB DDR4 |
Reviews
No customer reviews for the moment.
