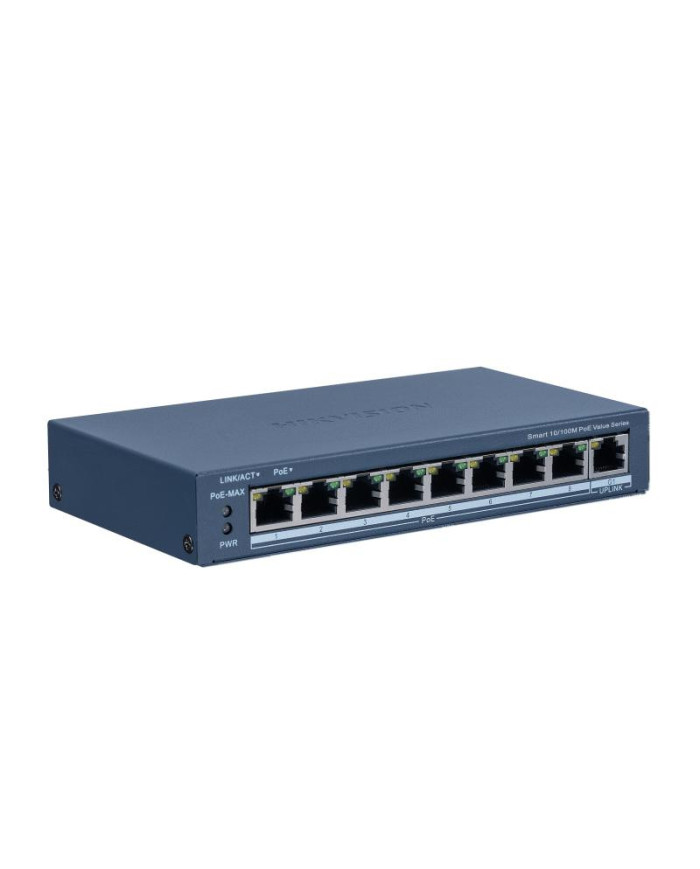

Hikvision DS-3E1309P-EI/M Smart Managed 8-Port PoE Switch + 1G Uplink (60W)
The Hikvision DS-3E1309P-EI/M is a smart managed PoE switch designed to provide reliable network connectivity and power delivery for surveillance and business applications. It combines intelligent management features with stable PoE performance, making it an ideal choice for IP camera deployments.
Product Features:
- Equipped with 8 Fast Ethernet PoE ports and a dedicated Gigabit uplink for reliable network connectivity
- 60W PoE power budget to efficiently support multiple PoE-enabled devices
- 802.1Q VLAN functionality for secure network segmentation and traffic management
- Intelligent PoE Watchdog automatically restores unresponsive IP cameras
- STP and RSTP support to minimize network loops and ensure stable operation
- Built-in cable diagnostics for quick fault detection and simplified maintenance
- Long-range PoE transmission of up to 300 meters for extended surveillance deployments
- Integrated 6kV surge protection to safeguard connected devices against electrical surges
New
Data sheet
| Dimensions | 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'') |
|---|---|
| MAC Address Table Size | 8 K |
| Mounting | Desk-Mounted,Wall-Mounted |
| Operating humidity | 5% to 95% (no condensation) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Packet Forwarding Rate | Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps |
| PoE Power Budget | 60 W |
| Power Consumption | 65 W |
| Switching Capacity | Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps |
| Power Supply | 54VDC, 1.2A |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Ports | 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port |
