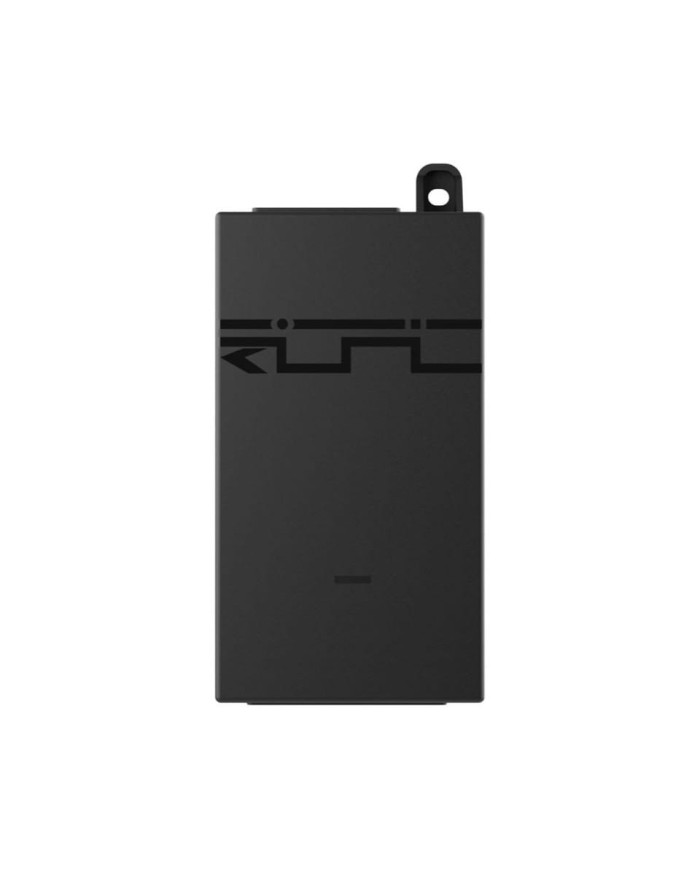

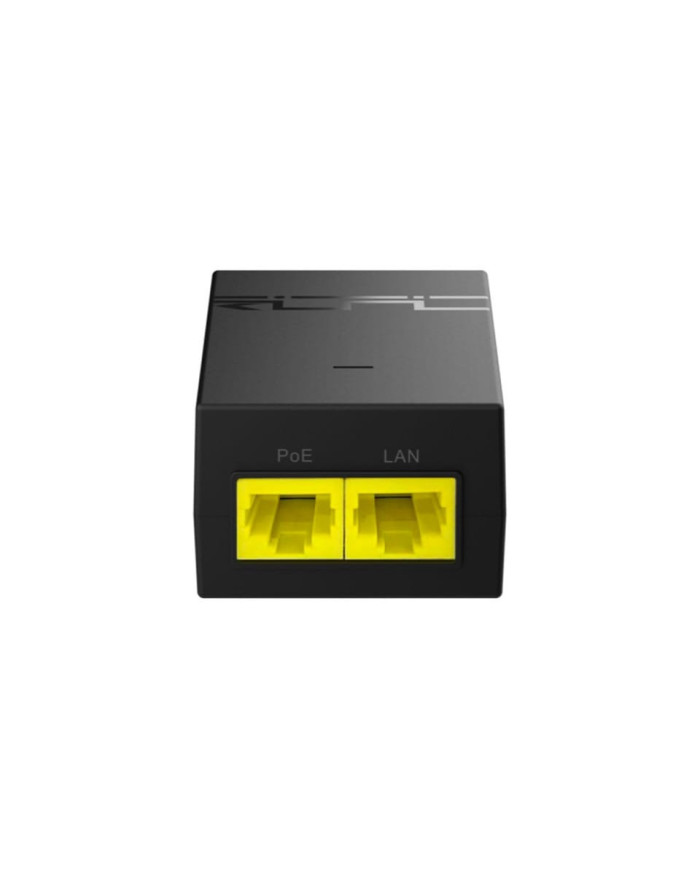

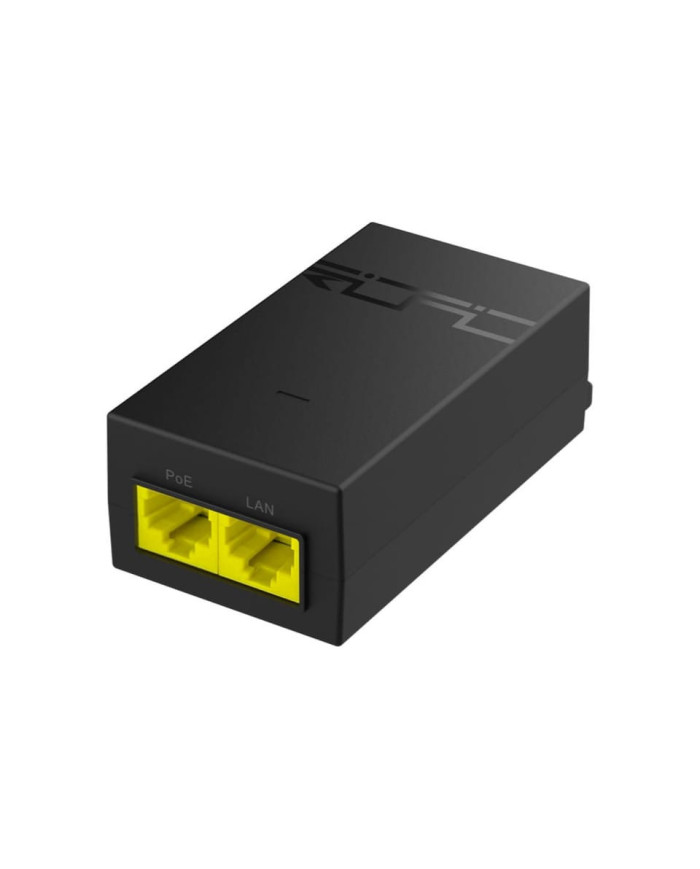

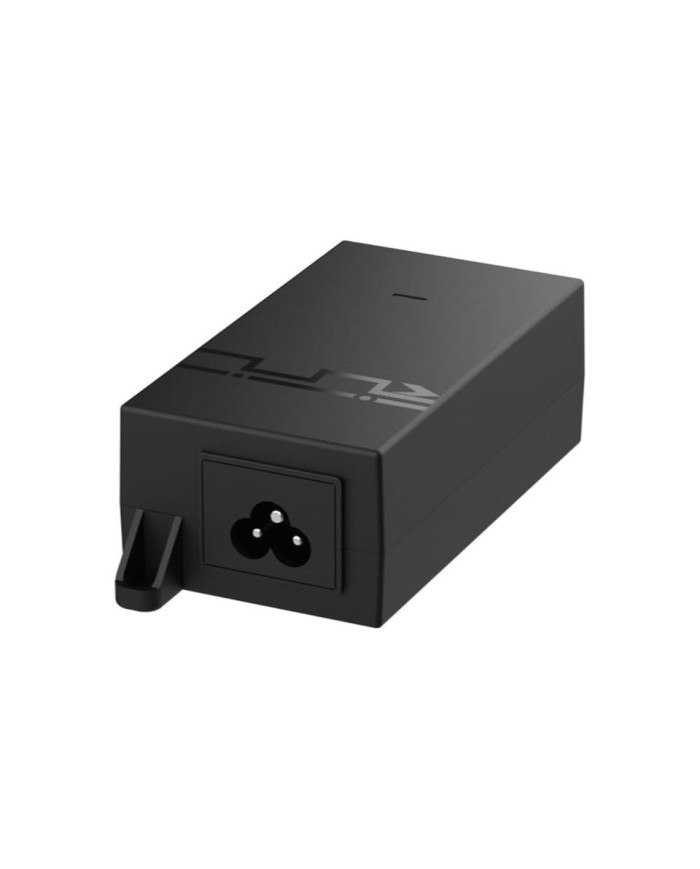

Ruijie RG-POE-AF15 1-Port PoE Adapter (1000Base-T, 52V, 15.6W
The Ruijie Reyee RG-POE-AF15 is a 1-port passive PoE adapter designed to deliver stable and efficient power to network devices. With a 52V output and 15.6W power capacity, it supports high-performance operation while enabling data transfer speeds of up to 1Gbps. It's an ideal choice for powering access points, routers, and IP cameras that rely on passive PoE.
key Highlights:
- Delivers 52V DC output at 0.3A for efficient and stable power
- Supports input voltage of 100-240V AC, 50/60 Hz
- Inrush current limited to under 80A at 230V AC for safe operation
- Maximum discharge current rated at 2000A (8/20 µs)
- Complies with passive PoE standard
- Provides up to 15.6W power output
- Utilizes 2-pair power transmission on pins 4,5 (+) and 7,8 (-)
New
Data sheet
| Dimensions | 92 x 46.5 x 29.5 ± 1 mm |
|---|---|
| Operating temperature | -10 °C to +45 °C |
| PoE | Passive PoE, 52V, 15.6W |
| Weight | 95 ± 5g |
| Storage Temperature | -40 °C to +70 °C |
| Protection Level | Max. Discharge Current: 2000 A (8/20 µs) |
| Model | RG-POE-AF15 |
